DELL Slim ECS1250

Produkt

Tillverkare

DELL

Produktnamn

Slim ECS1250

Tillverkarens länk

https://www.dell.com/en-uk/shop/

Produktkoder

Tillverkarens produktkoder

• V51DW

GTIN- / EAN-koder

• 5397184937242

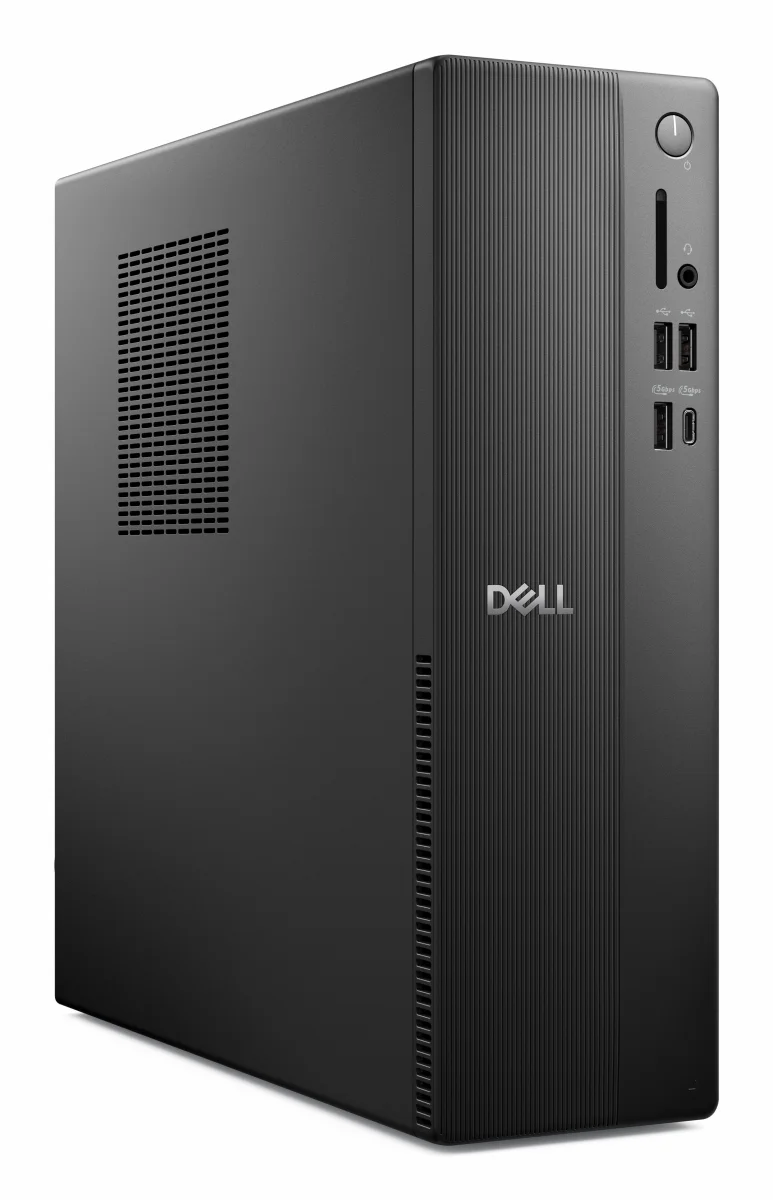

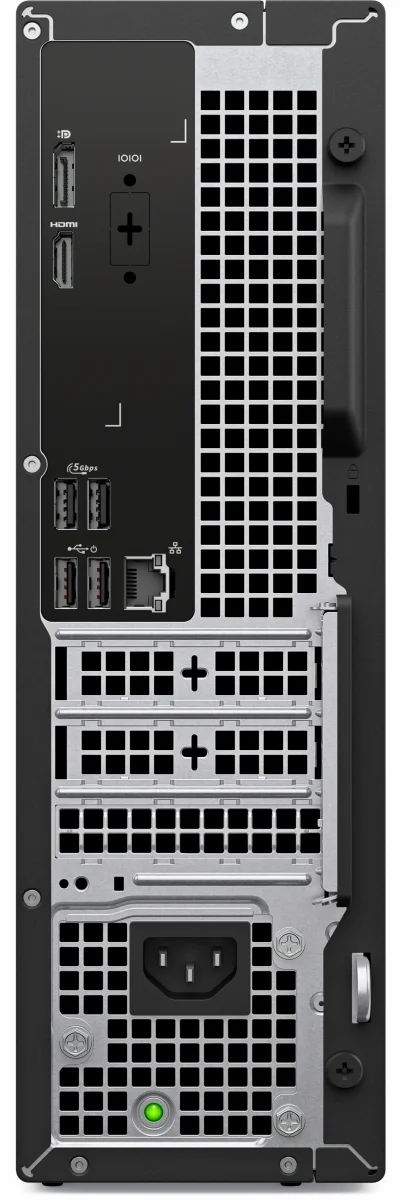

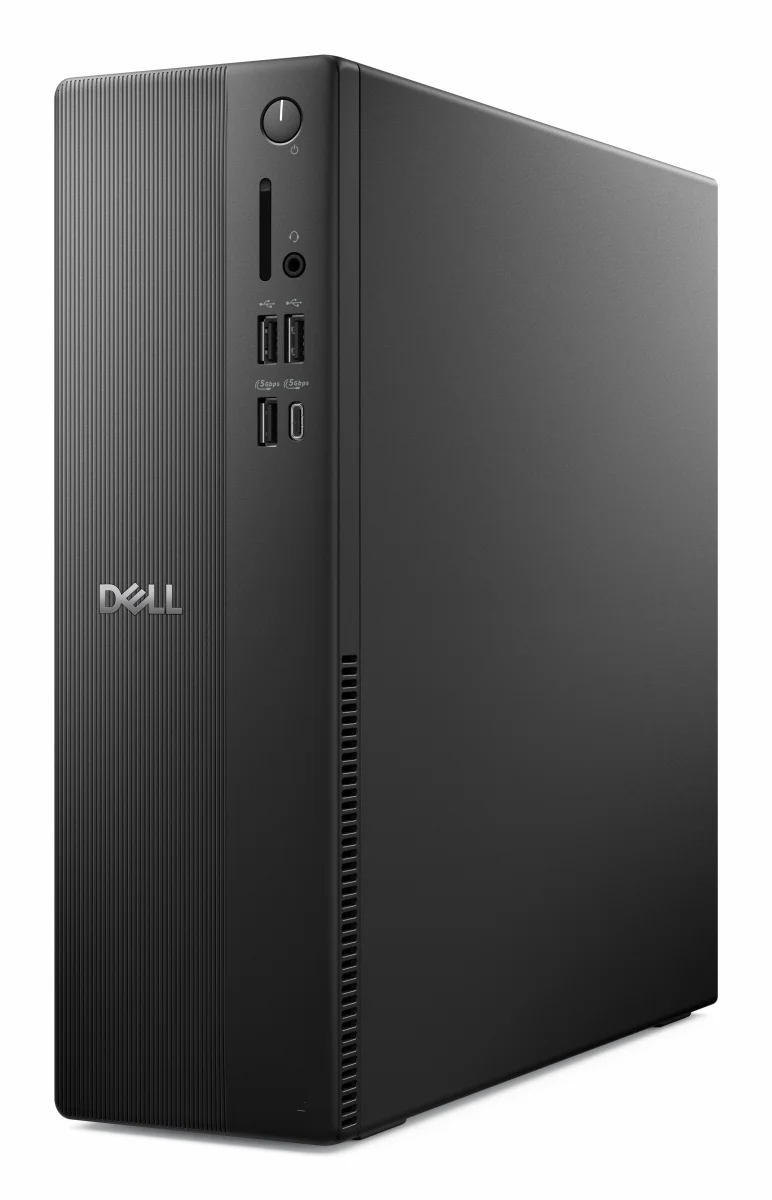

Produktbilder

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i7

Processor generation

Intel® Core™ i7 (14th gen)

Processor model

i7-14700

Processor cores

20

Processor threads

28

Processor boost frequency

5.4 GHz

Performance cores

8

Efficient cores

12

Performance-core Max Turbo Frequency

5.3 GHz

Efficient-core Max Turbo Frequency

4.2 GHz

Performance-core base frequency

2.1 GHz

Efficient-core base frequency

1.5 GHz

Processor cache

33 MB

Processor cache type

Smart Cache

Number of processors installed

1

Processor base power

65 W

Maximum turbo power

219 W

Memory

Internal memory

16 GB

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

1 x 16 GB

Memory slots

2x DIMM

Memory channels

Single-channel

Memory data transfer rate

5600 MT/s

Storage

Total storage capacity

512 GB

Optical drive type

Nej

Storage media

SSD

Number of storage drives installed

1

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

Graphics

Discrete graphics card

Nej

On-board graphics card

Ja

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel UHD Graphics 770

Performance

Product type

PC

Motherboard chipset

Intel SoC

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Network

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n)

WLAN controller manufacturer

MediaTek

WLAN controller model

MediaTek MT7920

Antenna type

2x2

Bluetooth

Ja

MU-MIMO

Ja

Ports & interfaces

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Thunderbolt 3 ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.4

HDMI ports quantity

1

HDMI version

2.1

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Ja

Power

Power supply

180 W

Power supply input voltage

90 - 264 V

Power supply input frequency

47/63 Hz

80 PLUS certification

80 PLUS Bronze

Design

Chassis type

Slim PC

Cable lock slot

Ja

Cable lock slot type

Kensington

Product colour

Black

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Drivers included

Ja

Trial software

McAfee Business Protection 1-year,Activate Your Microsoft 365 For A 30 Day Trial

Display

Display included

Nej

Audio

Audio chip

Realtek ALC3204

Audio system

High Definition Audio

Operational conditions

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

20 - 80 %

Storage relative humidity (H-H)

5 - 95 %

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating vibration

0.26 G

Non-operating vibration

1.37 G

Operating shock

40 G

Non-operating shock

105 G

Weight & dimensions

Width

95 mm

Depth

293 mm

Height

303.5 mm

Weight

4750 g

Packaging content

Mouse included on selected markets

Dell Optical Mouse - MS116 (Black)

Keyboard included on selected markets

Dell Multimedia Keyboard-KB216 - UK (QWERTY) - Black

Carbon footprint

Total carbon footprint (kg of CO2e)

148

Carbon emissions, manufacturing (kg of CO2e)

73.26

Carbon emissions, logistics (kg of CO2e)

9.18

Carbon emissions, energy usage (kg of CO2e)

62.75

Carbon emissions, end-of-life (kg of CO2e)

2.96

PAIA version

GaBi version 1, 2024
