ASUS ExpertCenter P500SV-07240H013X

Produkt

Tillverkare

ASUS

Produktfamilj / -serie

ExpertCenter P500 SFF

Produktnamn

P500SV-07240H013X

Tillverkarens länk

https://www.asus.com/displays-desktops/tower-pcs/expertcenter..

Produktkoder

Tillverkarens produktkoder

• 90PF05A1-M013Y0
• P500SV-07240H013X

GTIN- / EAN-koder

• 4711636315470

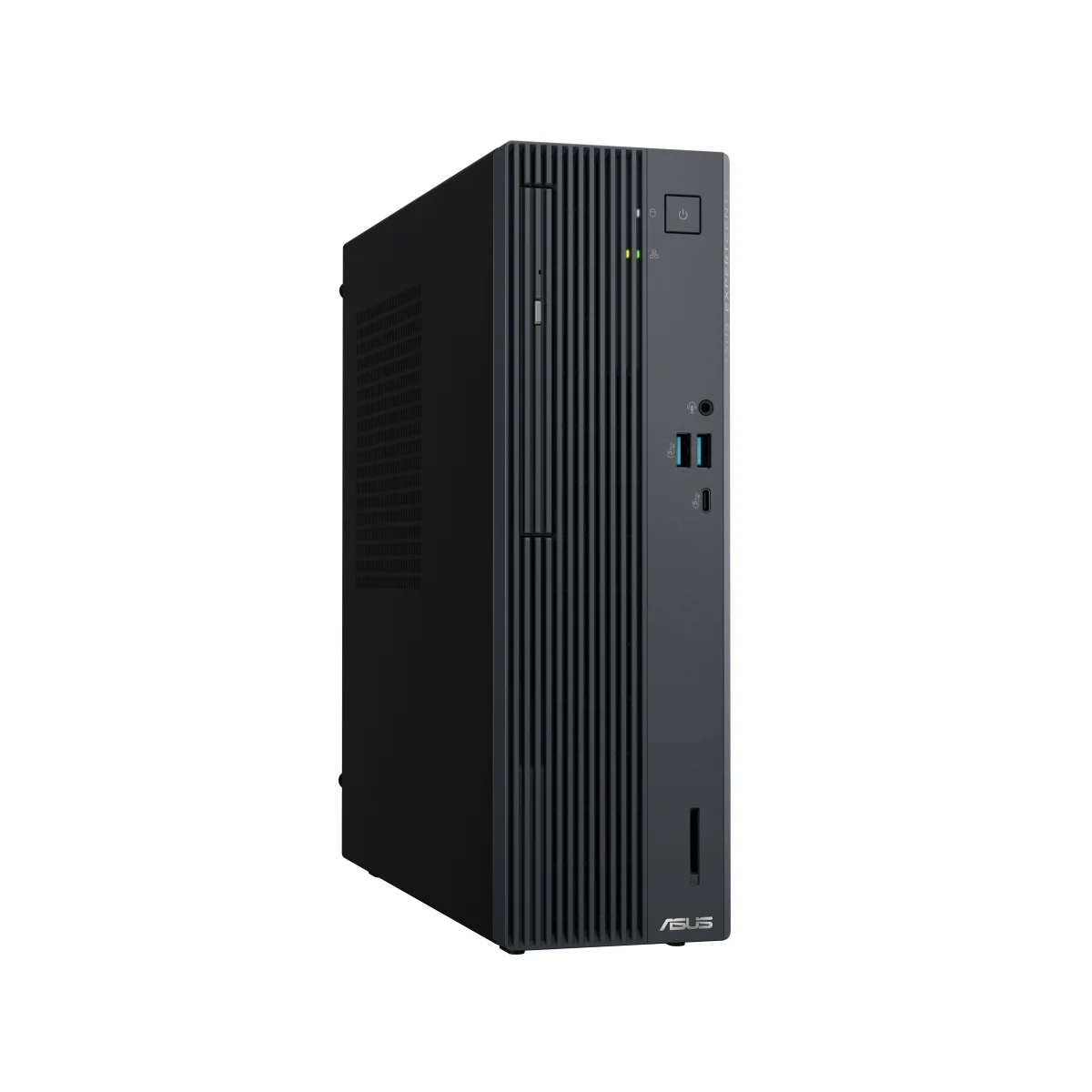

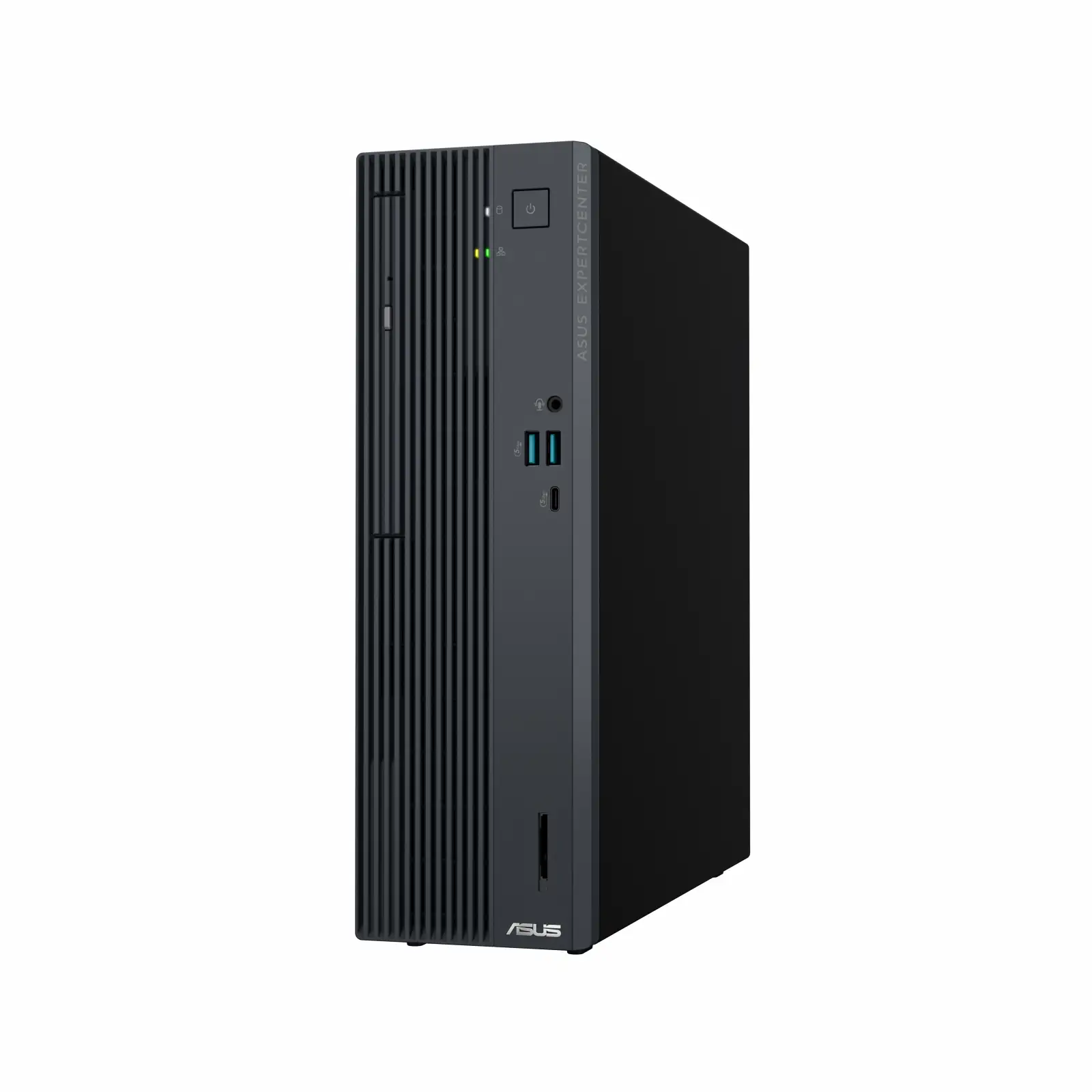

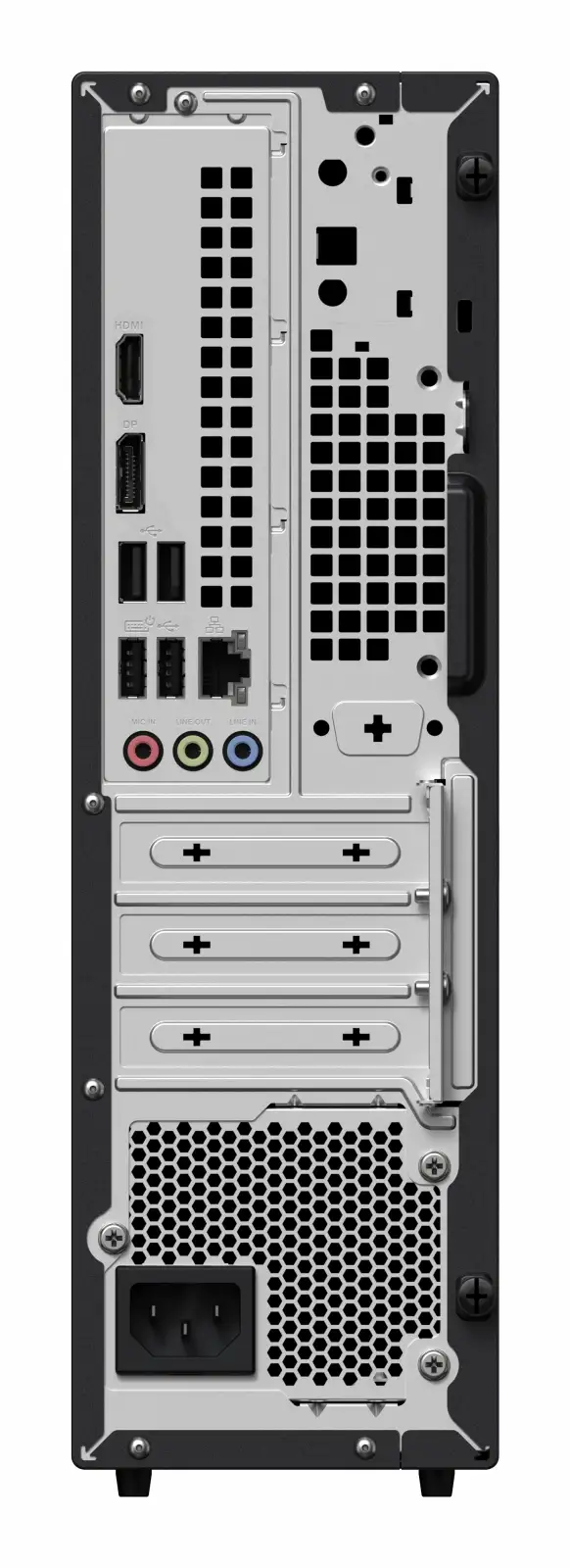

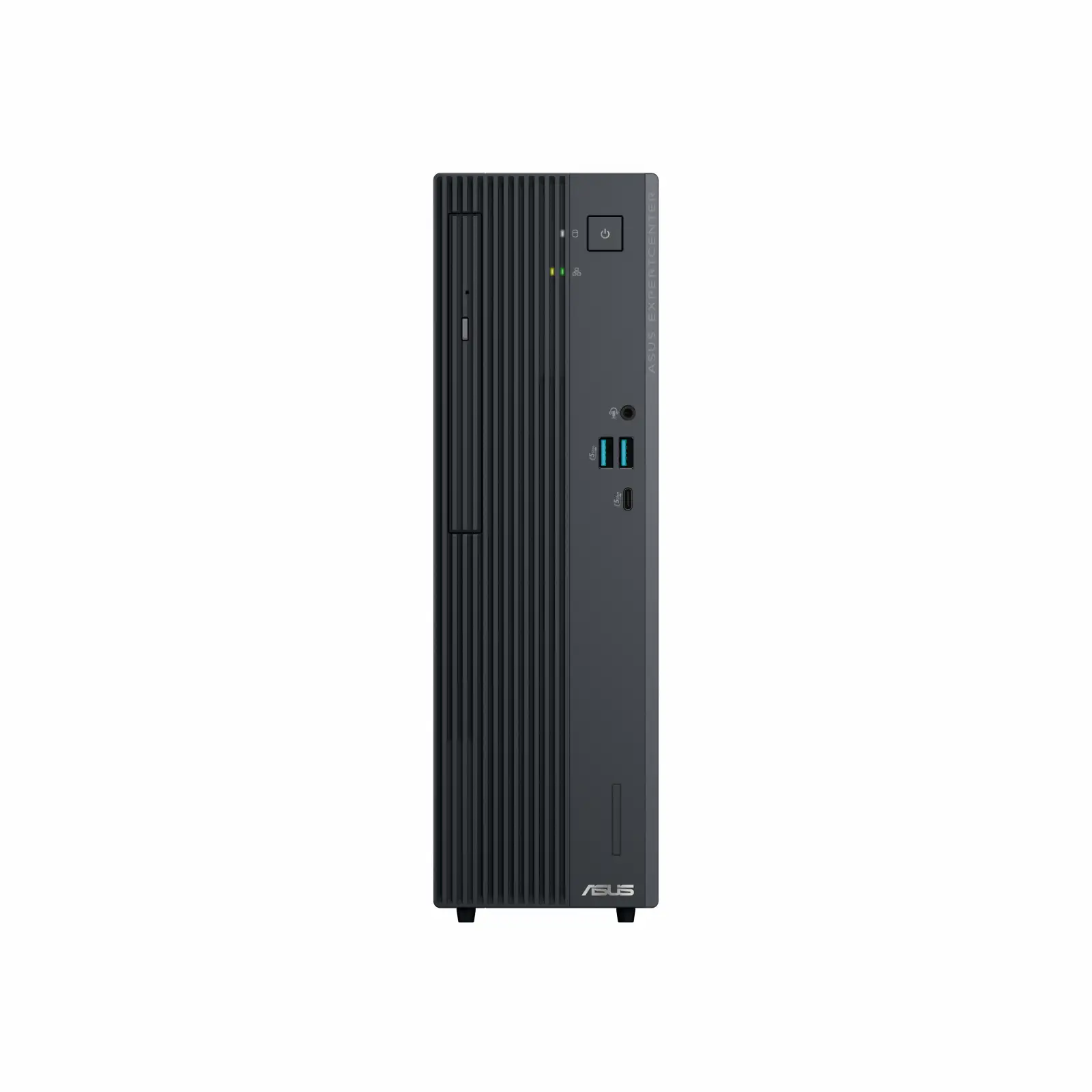

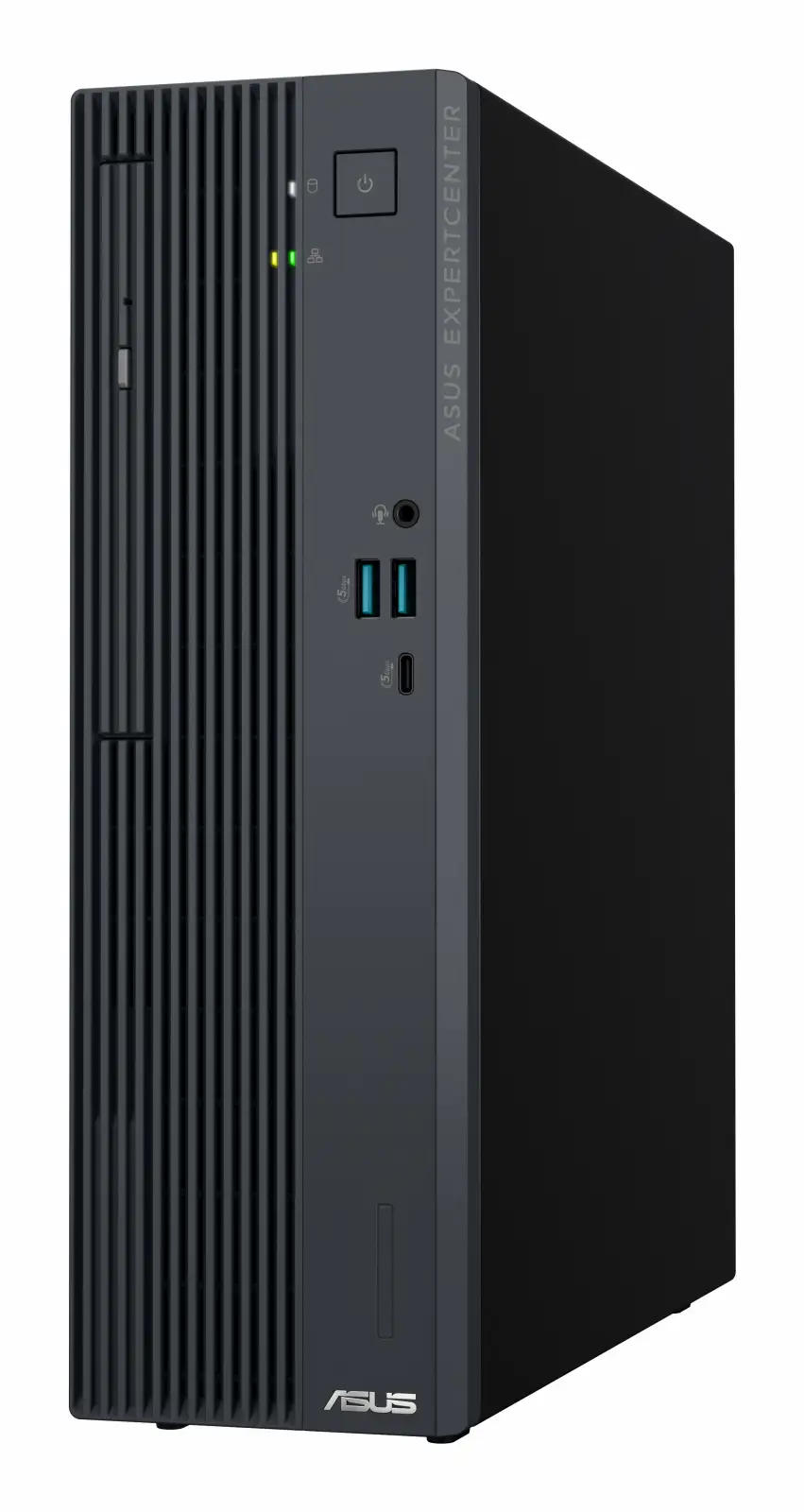

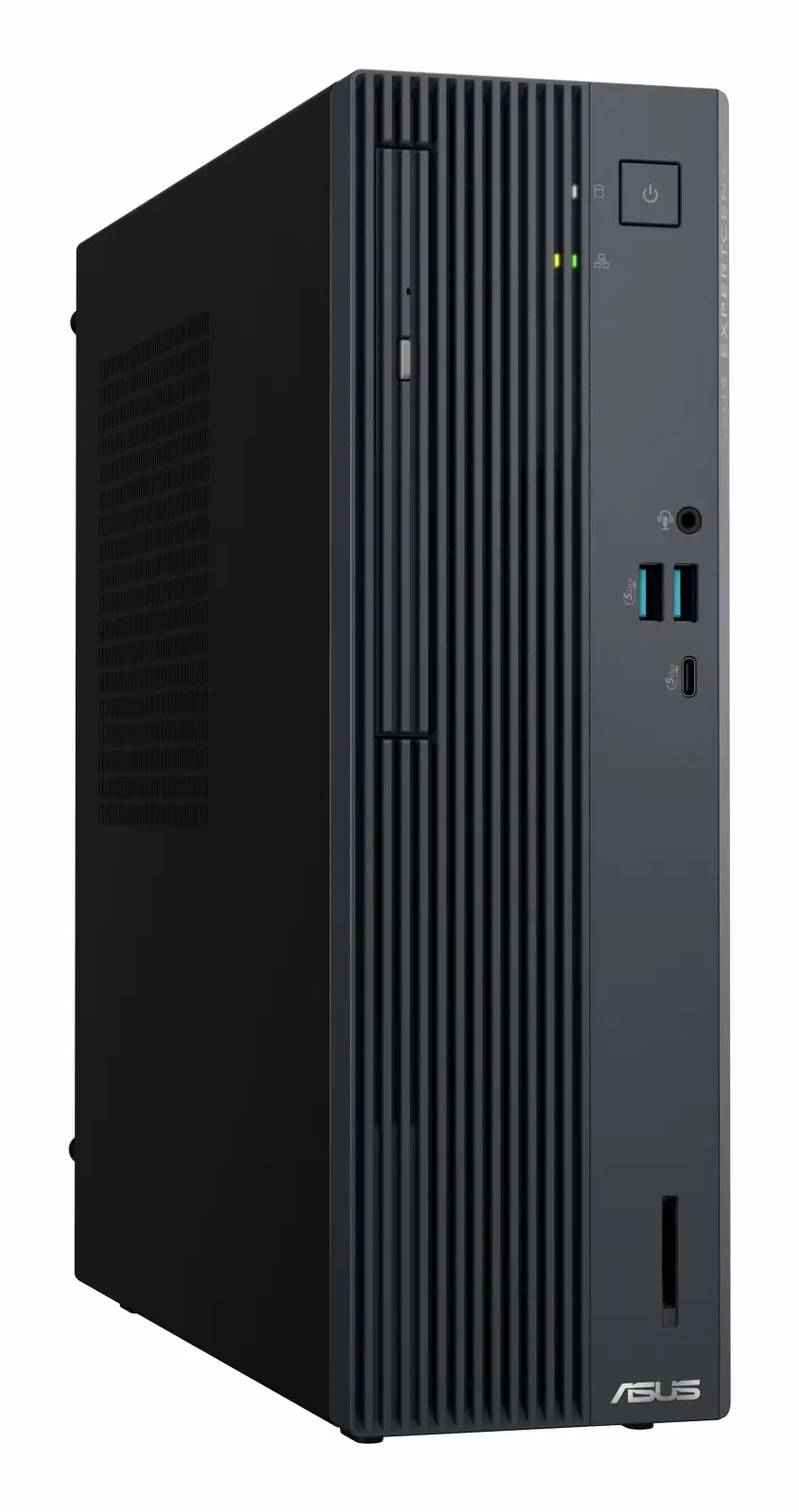

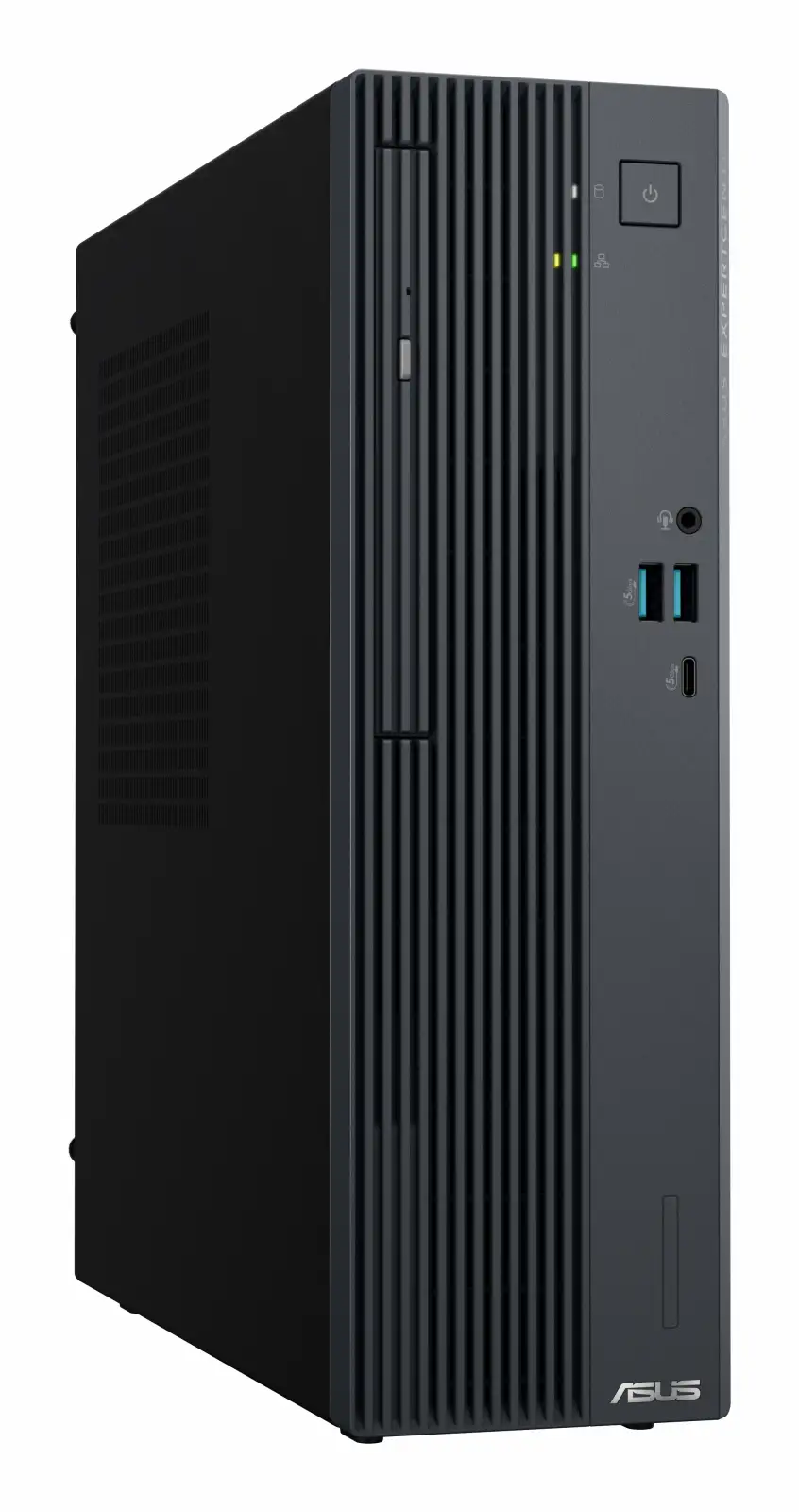

Produktbilder

Processor

Processor manufacturer

Intel

Processor family

Intel Core 7

Processor generation

Intel Core (Series 2)

Processor model

240H

Processor cores

10

Processor threads

16

Processor boost frequency

5.2 GHz

Performance cores

6

Efficient cores

4

Performance-core Max Turbo Frequency

5.2 GHz

Efficient-core Max Turbo Frequency

4 GHz

Performance-core base frequency

2.5 GHz

Efficient-core base frequency

1.8 GHz

Processor cache

24 MB

Processor cache type

Smart Cache

Processor base power

45 W

Maximum turbo power

115 W

Memory

Internal memory

16 GB

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

1 x 16 GB

Memory slots

2x DIMM

Storage

Total storage capacity

512 GB

Optical drive type

Nej

Storage media

SSD

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Graphics

Discrete graphics card

Nej

On-board graphics card

Ja

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® Graphics

On-board graphics card model

Intel® Graphics

Performance

Product type

PC

Market positioning

Business

Password protection

Ja

Password protection type

HDD, User

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Audio output channels

7.1 channels

Network

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Antenna type

2x2

Bluetooth

Ja

Bluetooth version

5.4

Ports & interfaces

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Thunderbolt 3 ports quantity

0

DisplayPorts quantity

1

DisplayPort version

1.4

HDMI ports quantity

1

HDMI version

1.4

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Ja

Line-out

Ja

Line-in

Ja

Number of rear USB ports

4

Number of front USB ports

3

Number of front audio ports

1

Number of rear audio ports

3

Number of SATA III connectors

2

Expansion slots

Number of 3.5" bays

1

PCI Express x16 (Gen 4.x) slots

1

Power

Power supply

180 W

Power supply input voltage

100 - 240 V

Power supply input frequency

50 - 60 Hz

80 PLUS certification

80 PLUS Bronze

Design

Chassis type

SFF

Colour name

Grey

Cable lock slot

Ja

Cable lock slot type

Kensington

Product colour

Grey

Introduction year

2025

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Display

Display included

Nej

Audio

Audio system

High Definition Audio

Weight & dimensions

Width

93 mm

Depth

296 mm

Height

309 mm

Weight

5060 g

Packaging data

Package width

490 mm

Package depth

168 mm

Package height

510 mm

Packaging content

Mouse included

Nej

Keyboard included

Nej

Certificates

Compliance certificates

REACH

Sustainability

Sustainability certificates

ENERGY STAR, EPEAT Silver
