Asrock X870 Pro-A WiFi

Produkt

Tillverkare

Asrock

Produktnamn

X870 Pro-A WiFi

Tillverkarens länk

https://www.asrock.com/mb/AMD/X870%20Pro-A%20WiFi/index.asp#Ov..

Produktkoder

Tillverkarens produktkoder

• 90-MXBT60-A0UAYZ
• X870 PRO-A WIFI

GTIN- / EAN-koder

• 4710483942310

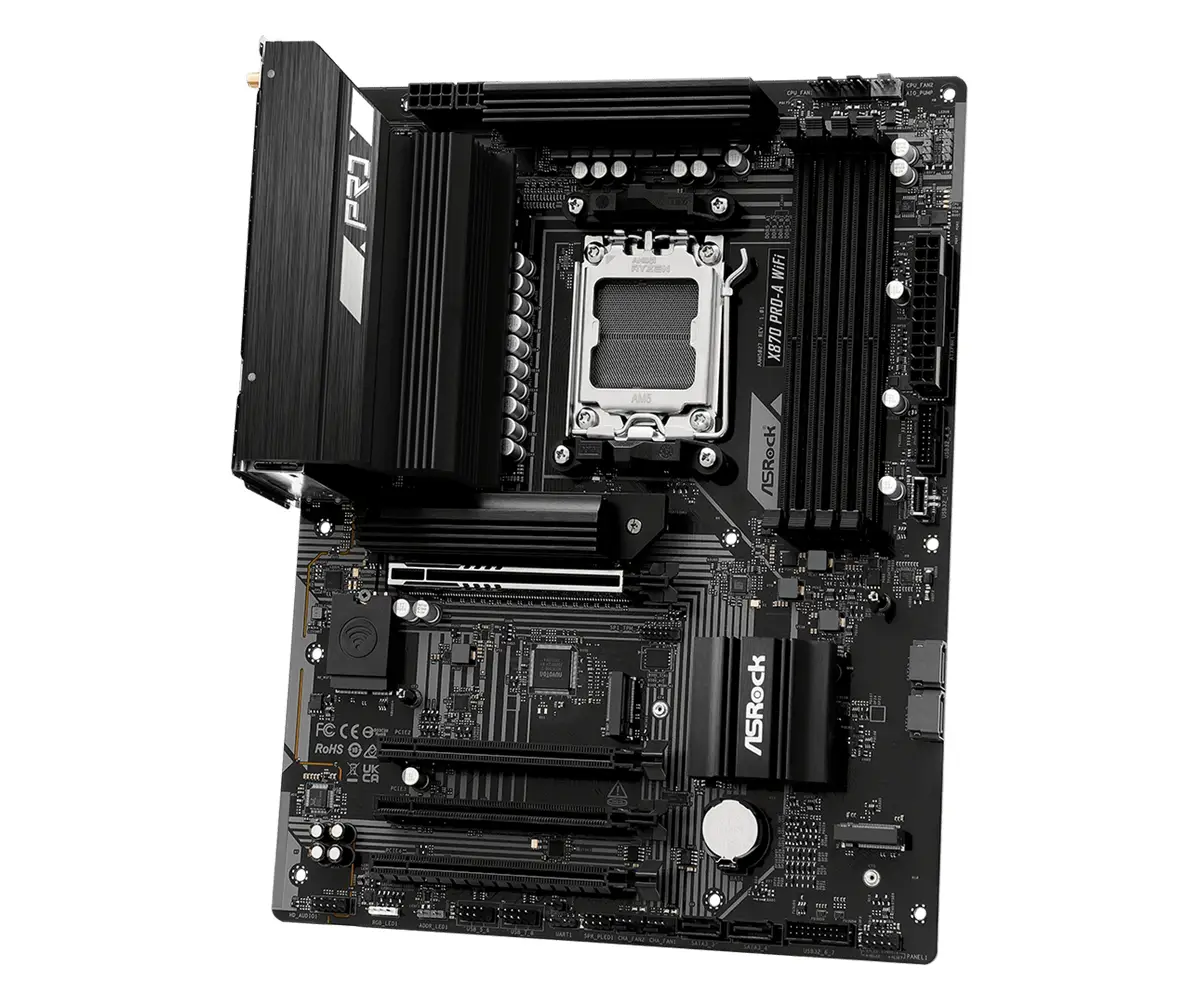

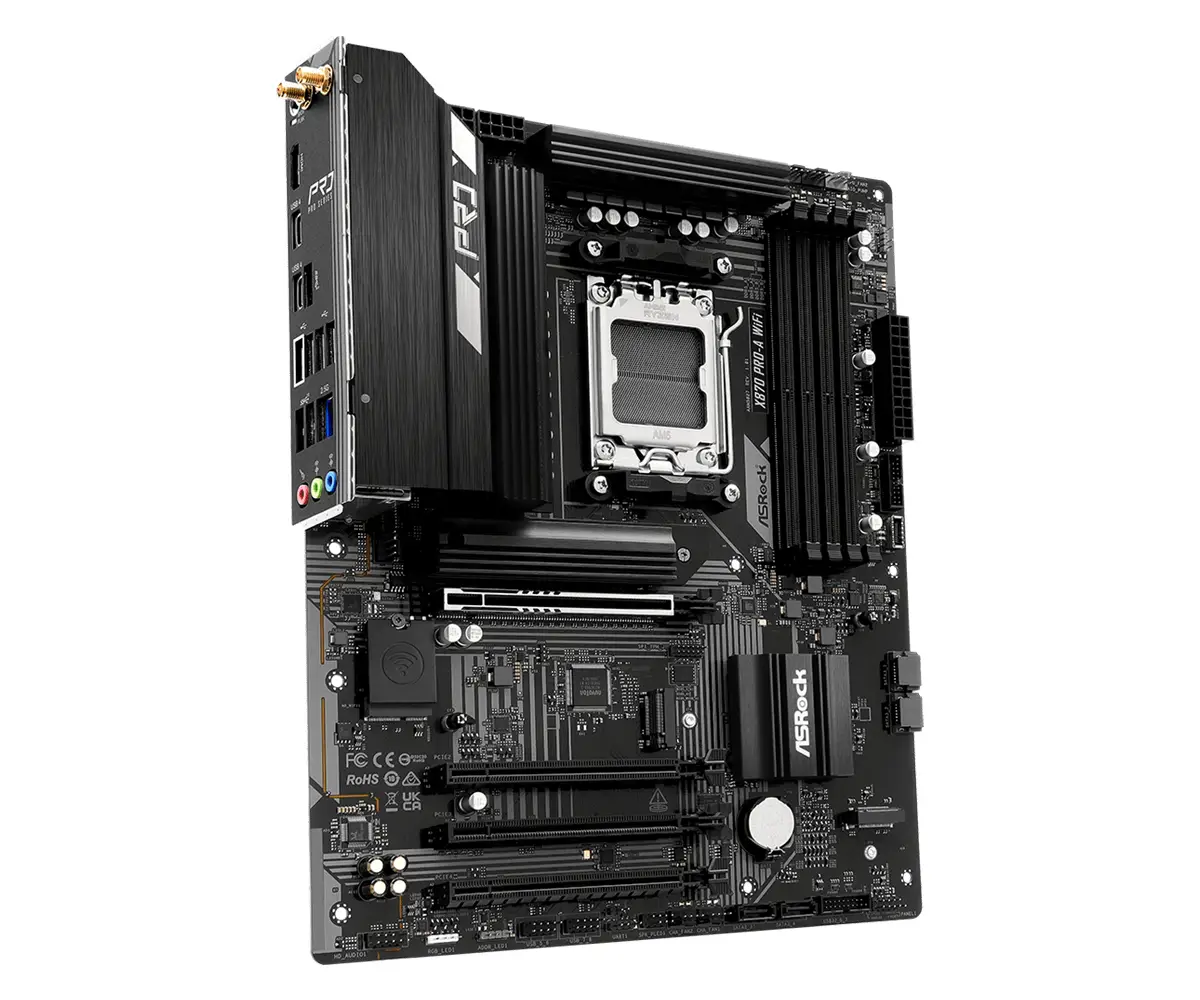

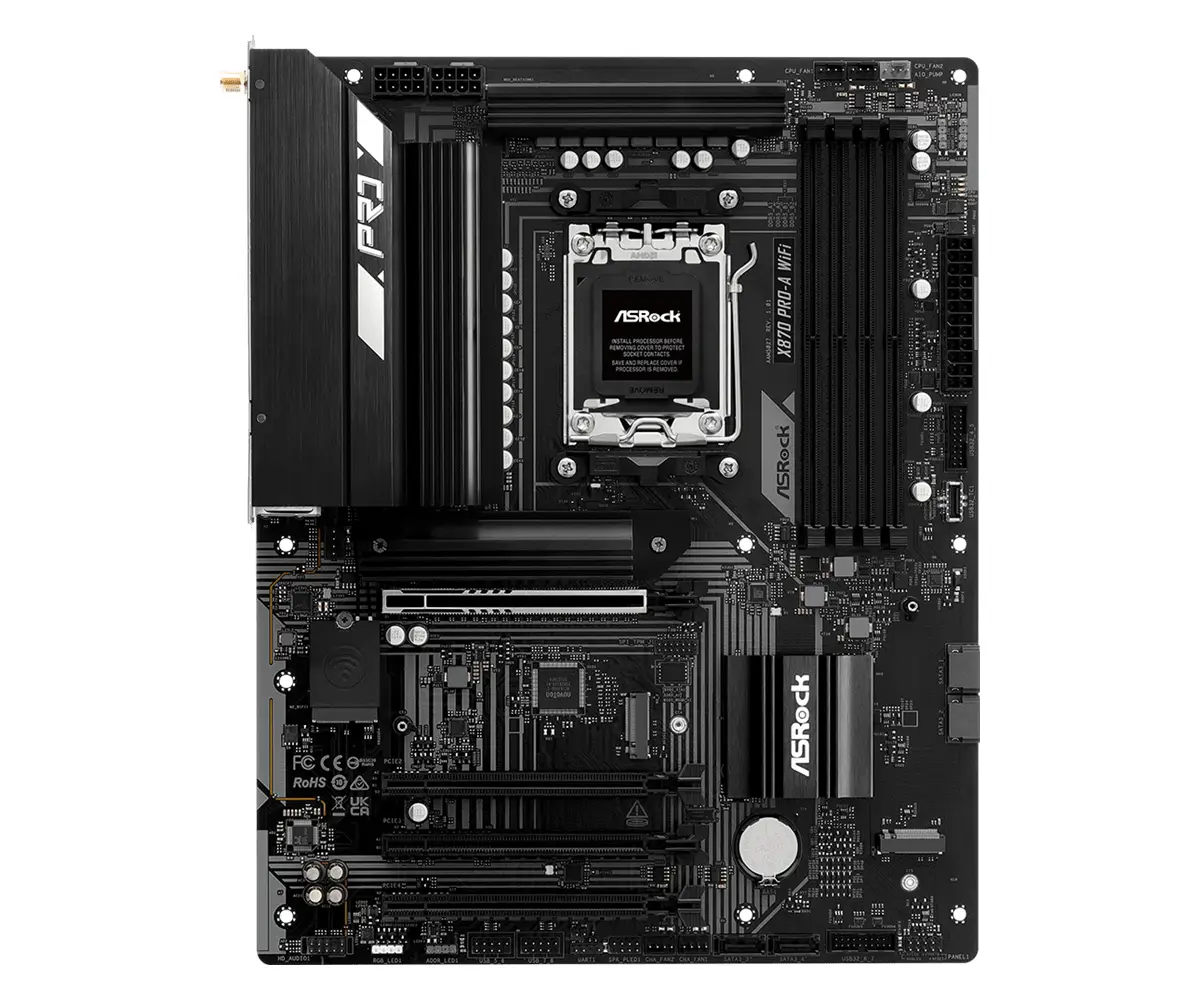

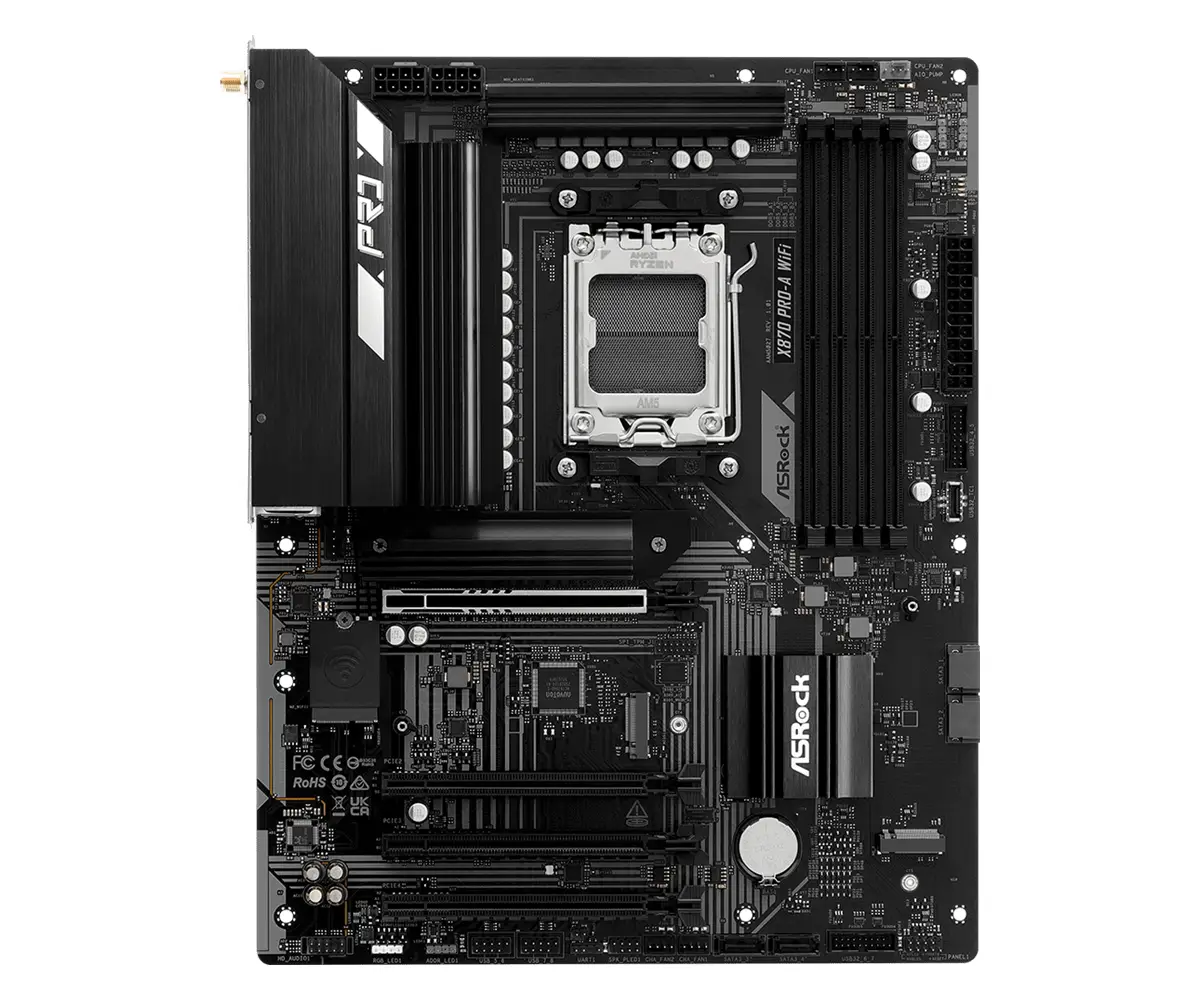

Produktbilder

Processor

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 6000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen PRO 7000 Series, AMD Ryzen PRO 8000 Series, AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series

Memory

Supported memory types

DDR5-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Maximum internal memory

256 GB

Storage controllers

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

7

RAID support

Ja

RAID levels

0, 1, 10

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

Number of SATA III connectors

4

Front panel audio connector

Ja

ATX Power connector (24-pin)

Ja

CPU fan connector

Ja

Number of CPU fan connectors

2

EPS power connector (8-pin)

Ja

Number of EPS power connectors (8-pin)

2

TPM connector

Ja

Rear panel I/O ports

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

2

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

Line-in

Ja

Microphone in

Ja

Network

Ethernet LAN

Ja

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Dragon RTL8125BG

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)

Bluetooth

Ja

Bluetooth version

5.4

Features

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots

3

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

3

BIOS

BIOS type

EFI AMI

BIOS memory size

512 Mbit

Weight & dimensions

Width

305 mm

Depth

244 mm

Packaging content

Cables included

SATA
