MSI Cubi NUC AI 1UMG-019BEU

Produkt

Tillverkare

MSI

Produktnamn

Cubi NUC AI 1UMG-019BEU

Tillverkarens länk

https://www.msi.com/Business-Productivity-PC/Cubi-NUC-1MX/Over..

Produktkoder

Tillverkarens produktkoder

• 936-B20911-019
• CUBI NUC AI 1UMG-019BEU

GTIN- / EAN-koder

• 4711377327664

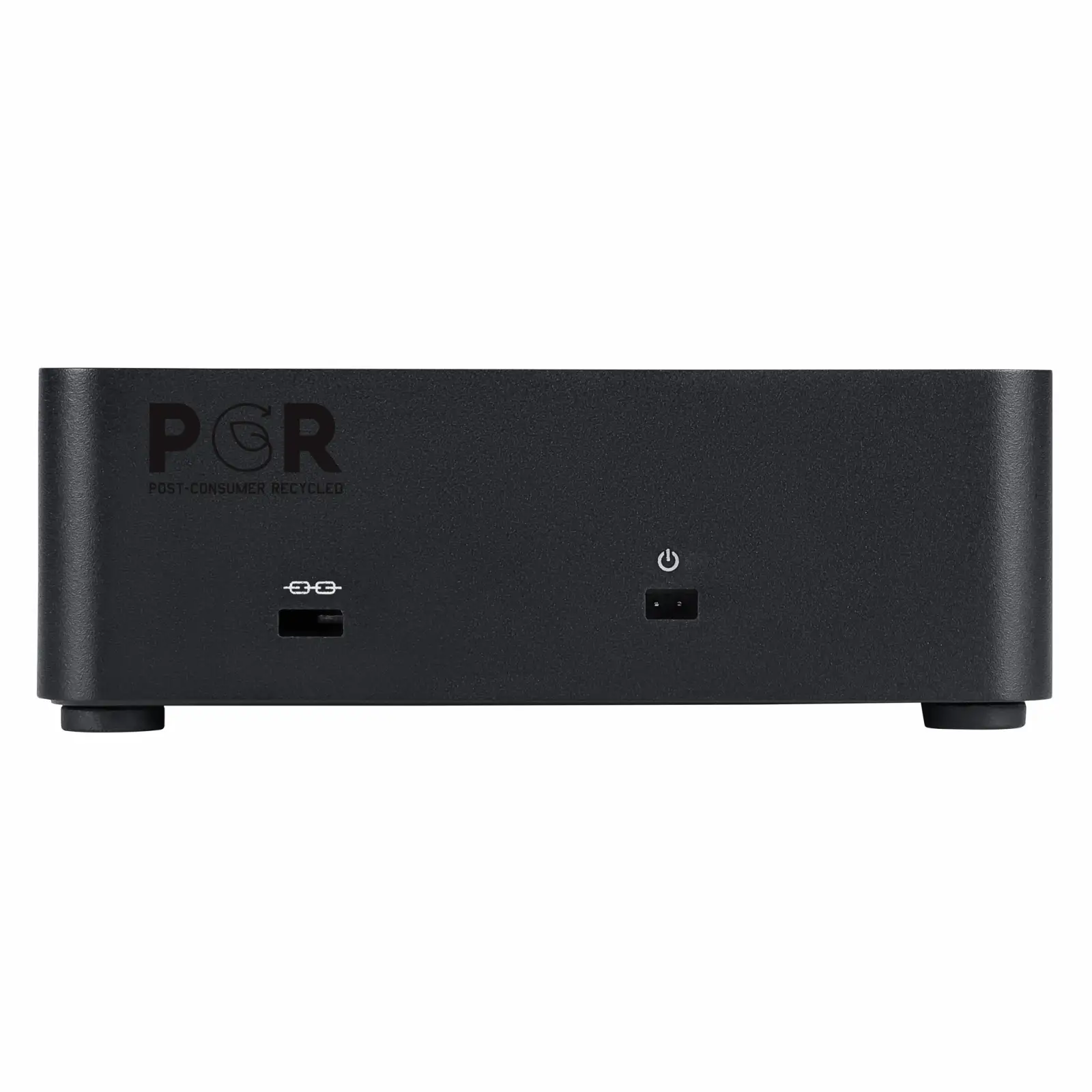

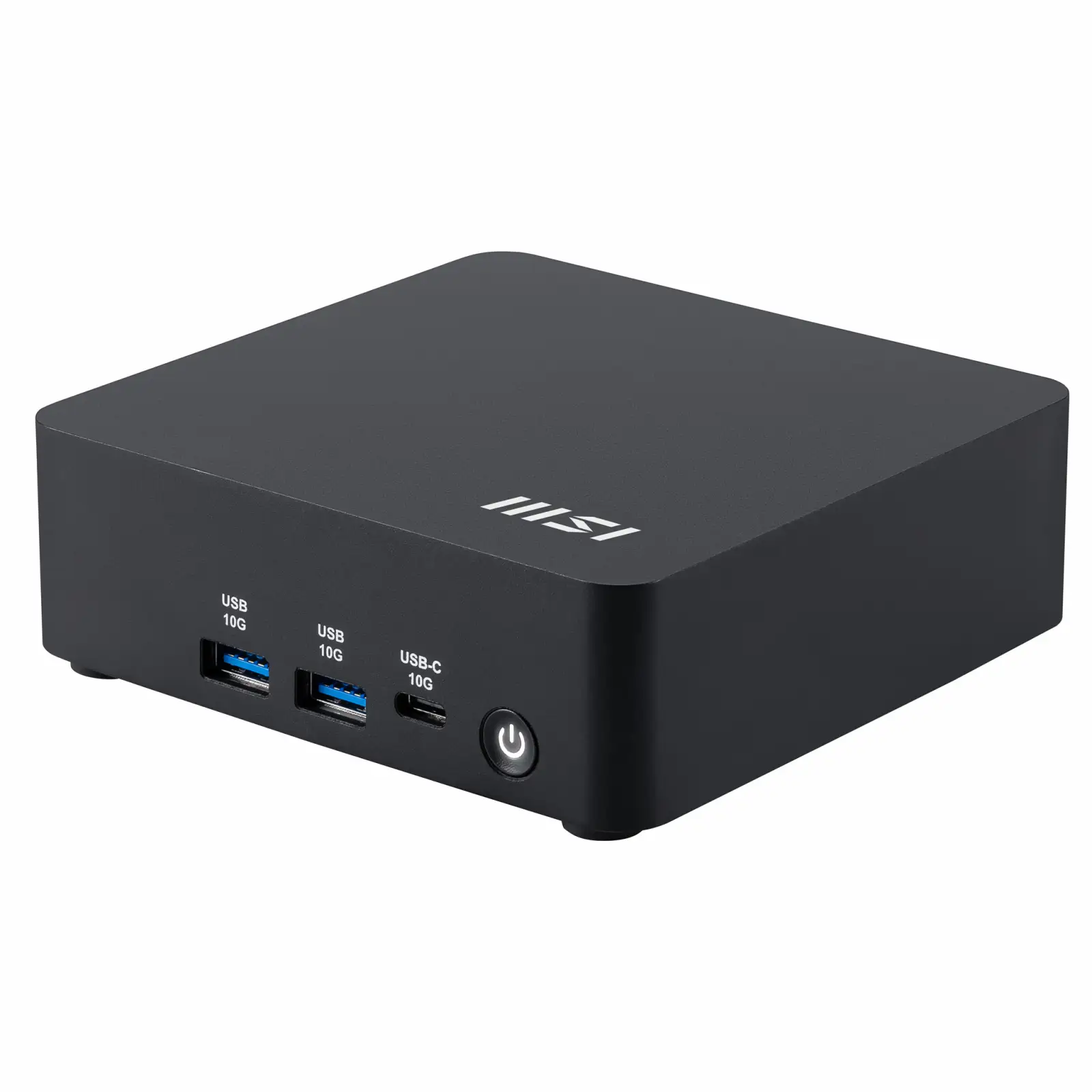

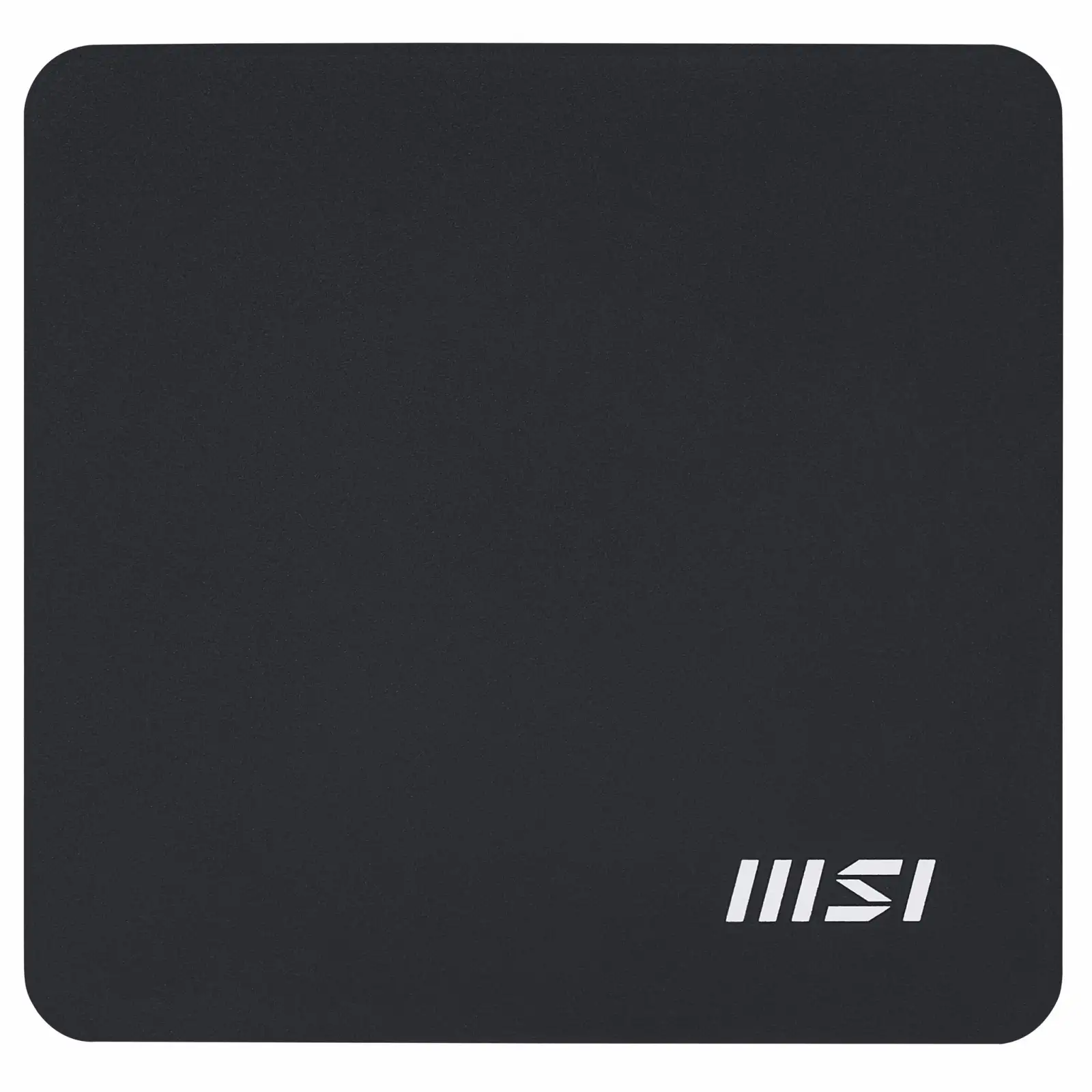

Produktbilder

Processor

Built-in processor

Ja

Processor manufacturer

Intel

Processor family

Intel Core Ultra 5

Processor generation

Intel® Core™ Ultra (Series 1)

Processor model

125H

Processor cores

14

Processor threads

18

Processor boost frequency

4.5 GHz

Performance cores

4

Efficient cores

8

Low Power Efficient-cores

2

Performance-core Max Turbo Frequency

4.5 GHz

Efficient-core Max Turbo Frequency

3.6 GHz

Low Power Efficient-core Max Turbo Frequency

2.5 GHz

Performance-core base frequency

1.2 GHz

Efficient-core base frequency

0.7 GHz

Low Power Efficient-core Base Frequency

700 MHz

Processor cache

18 MB

Processor cache type

Smart Cache

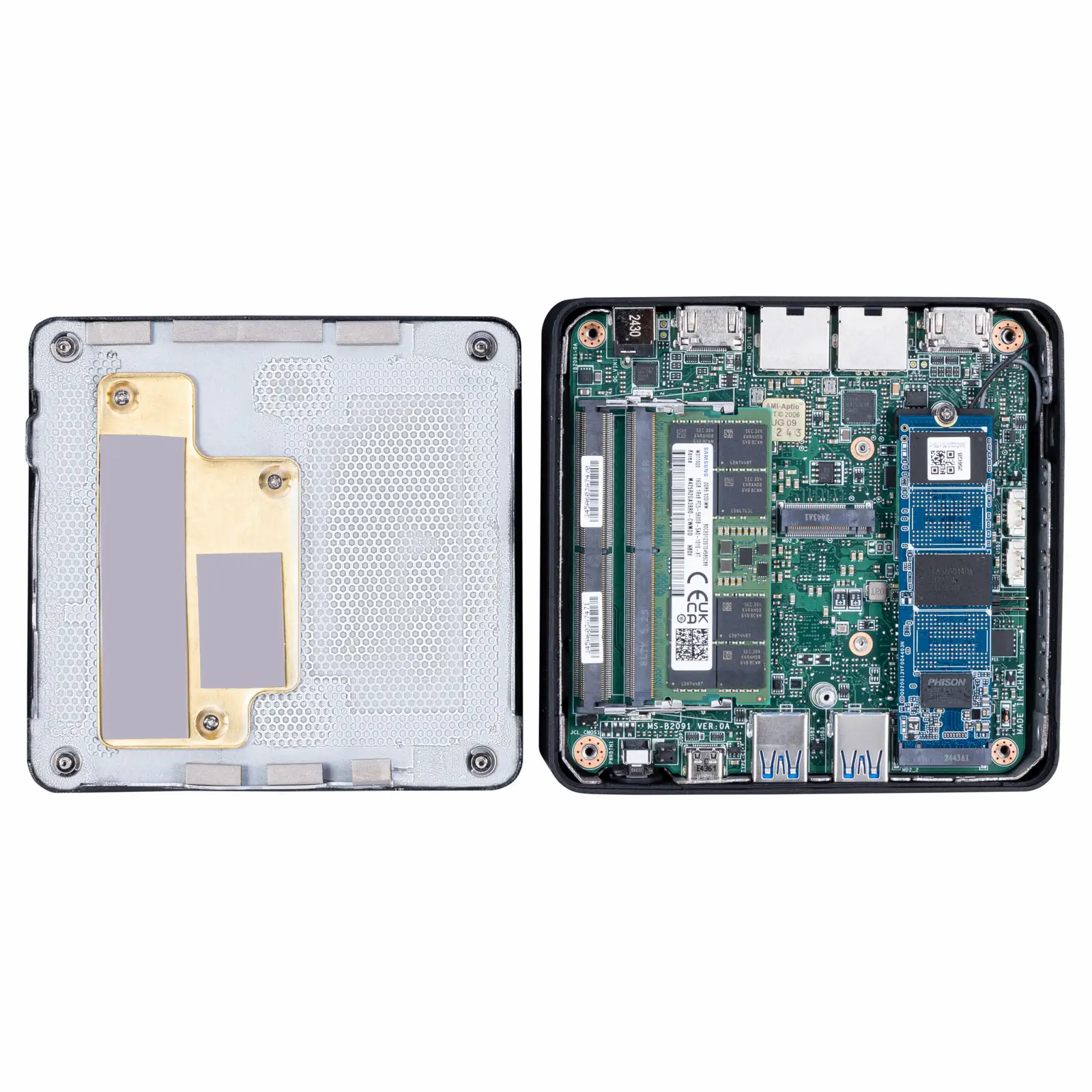

Memory

Memory slots type

SO-DIMM

Number of memory slots

2

Maximum internal memory

64 GB

Storage

Supported storage drive types

HDD & SSD

Storage drive sizes supported

M.2 "

NVMe

Ja

Card reader integrated

Ja

Compatible memory cards

MicroSD (TransFlash)

Graphics

On-board graphics card

Ja

Graphics card family

Intel

On-board graphics card model

Intel Arc Graphics

Discrete graphics card model

Not available

Number of displays supported

4

Performance

Motherboard form factor

NUC

Motherboard chipset

Intel SoC

Number of processors supported

1

Optical drive type

Nej

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Audio

Built-in speaker(s)

Nej

Network

Ethernet LAN

Ja

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

LAN controller

Intel I226-V

Bluetooth

Ja

Bluetooth version

5.3

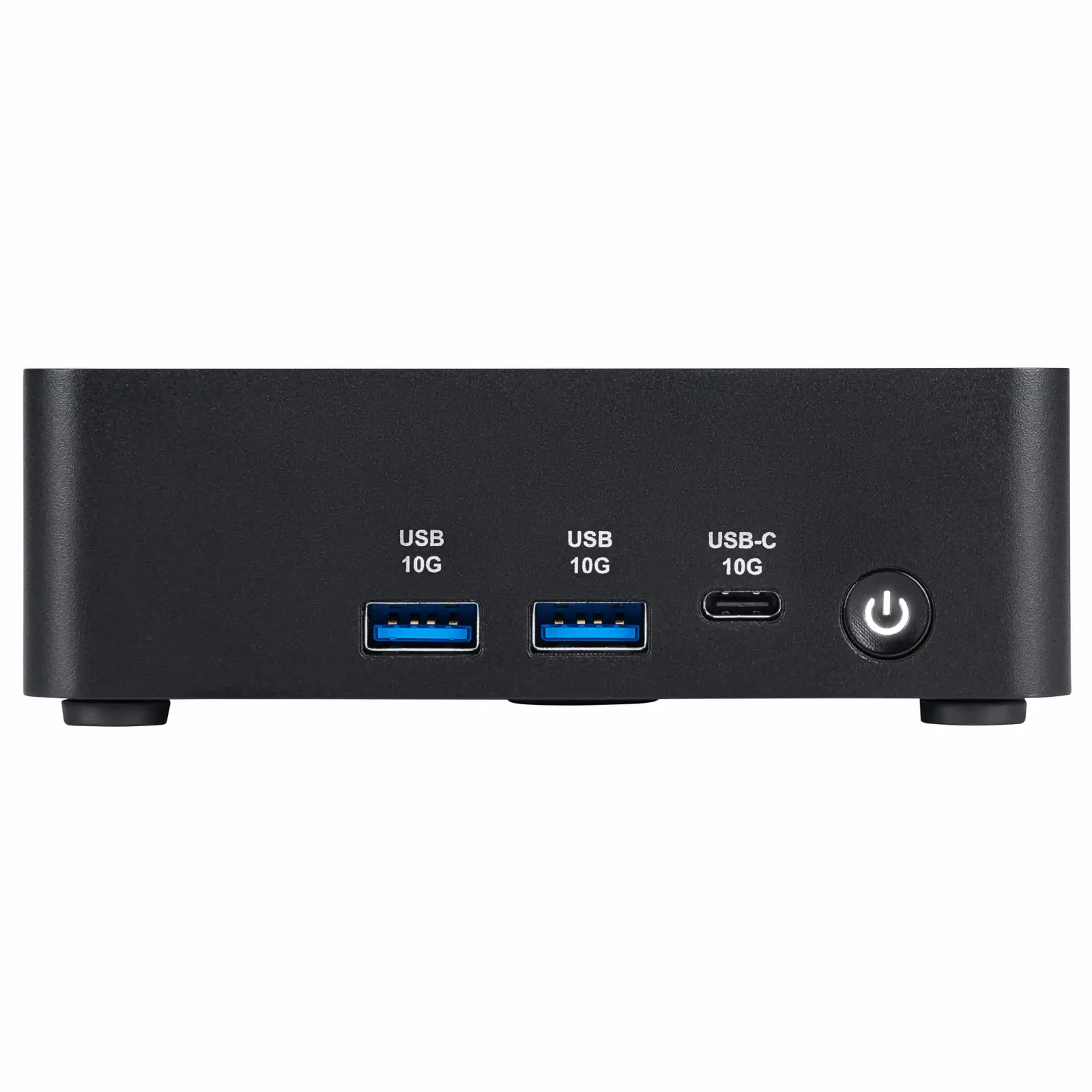

Ports & interfaces

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

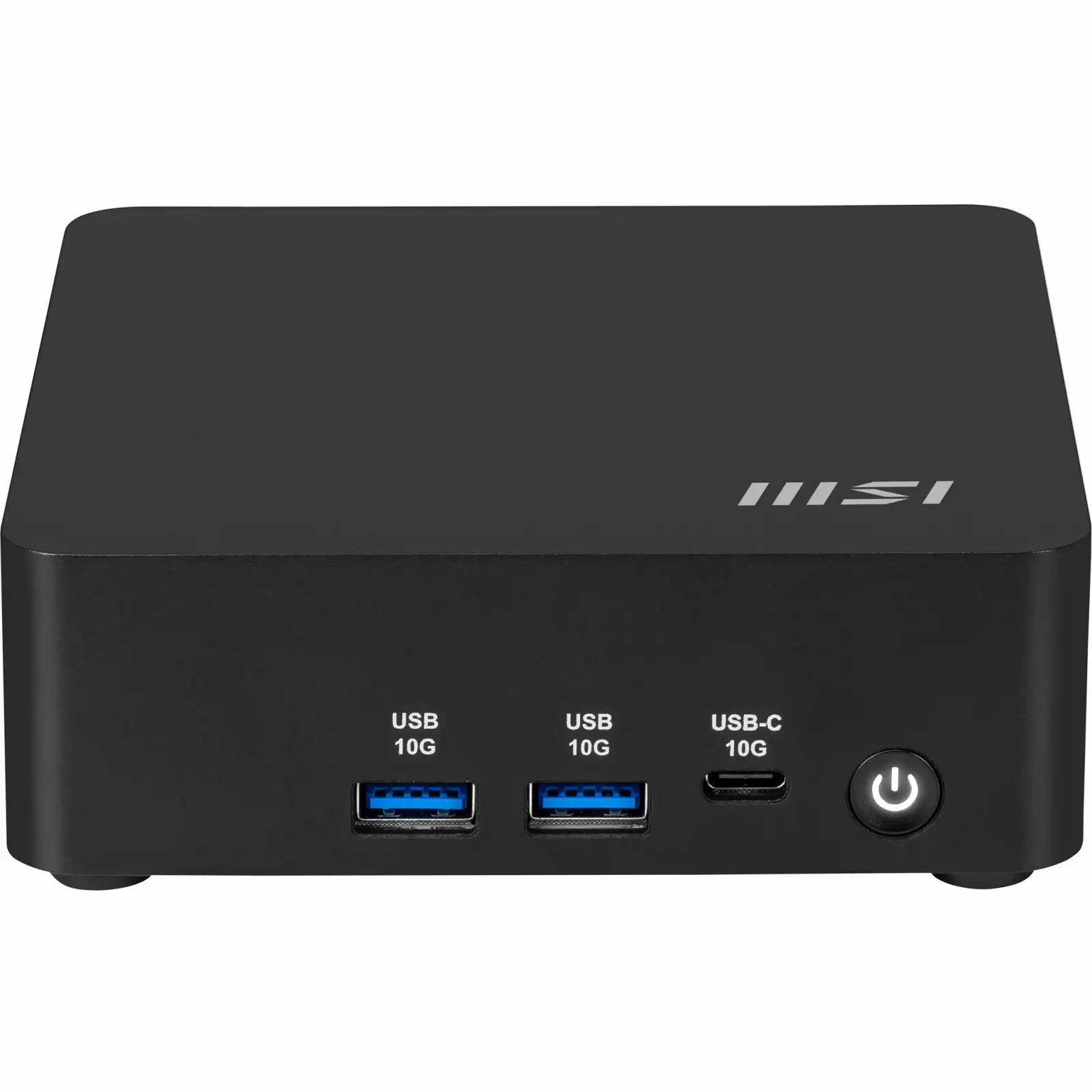

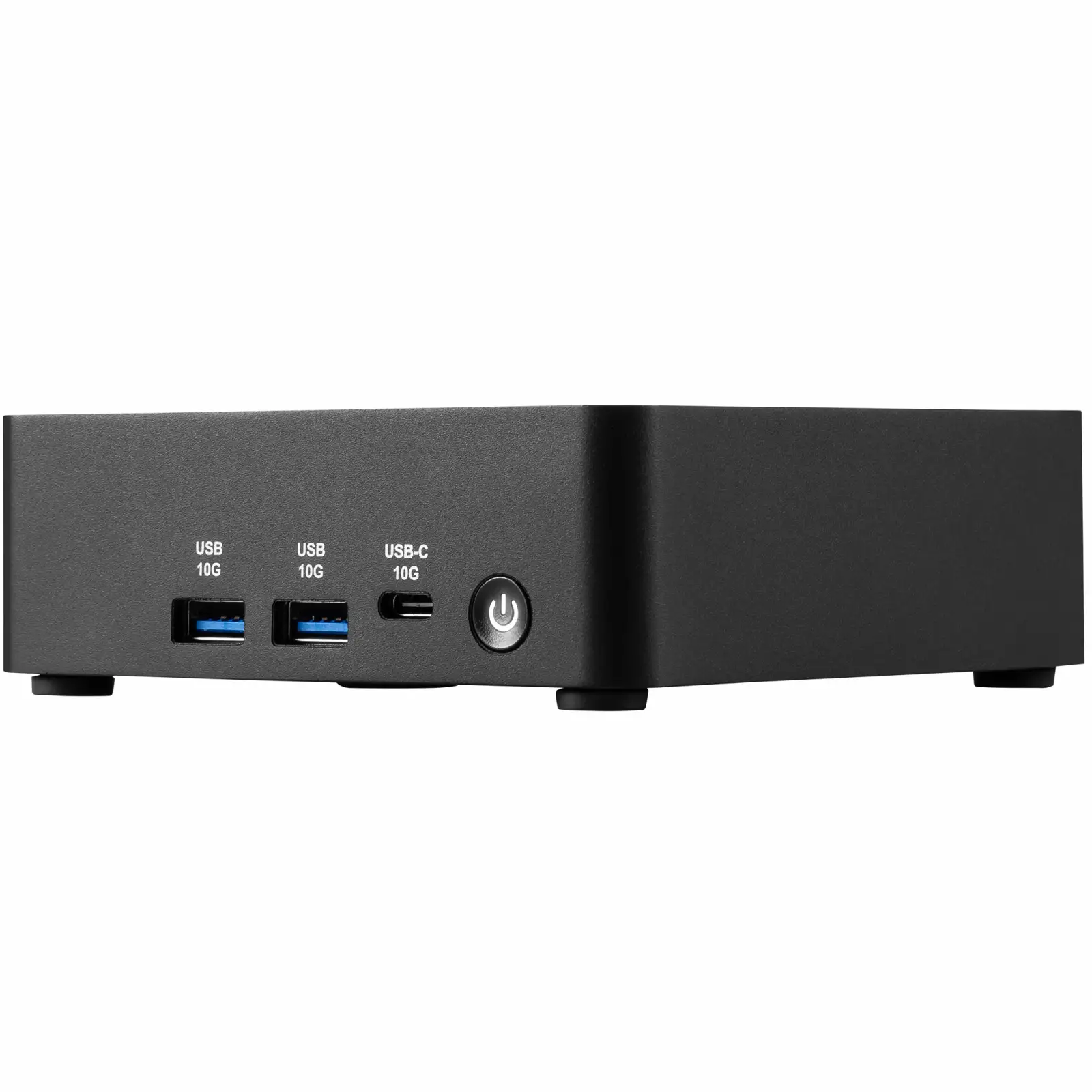

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

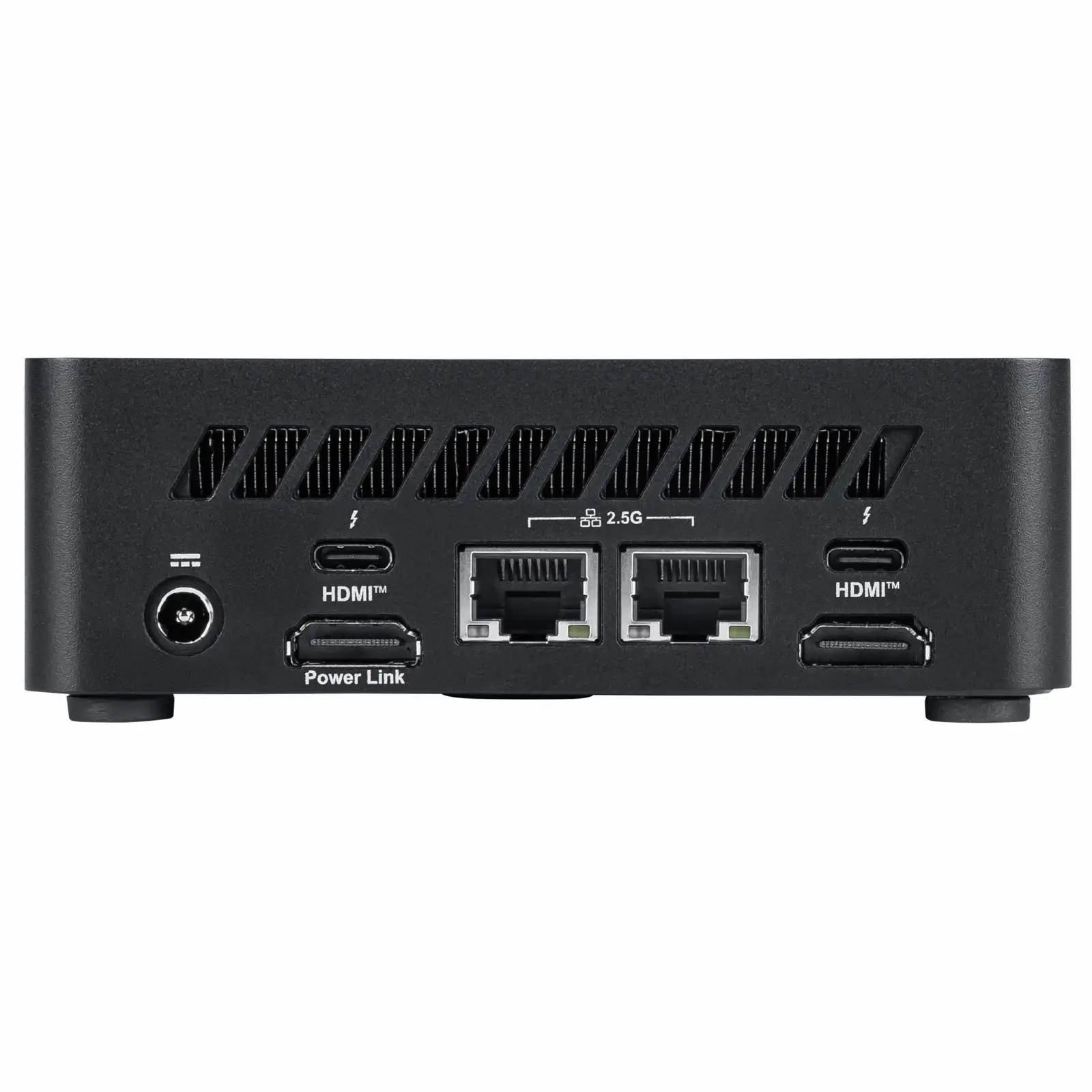

HDMI ports quantity

2

HDMI version

2.1

VGA (D-Sub) ports quantity

0

DVI port

Nej

DisplayPorts quantity

0

Microphone in

Nej

Combo headphone/mic port

Ja

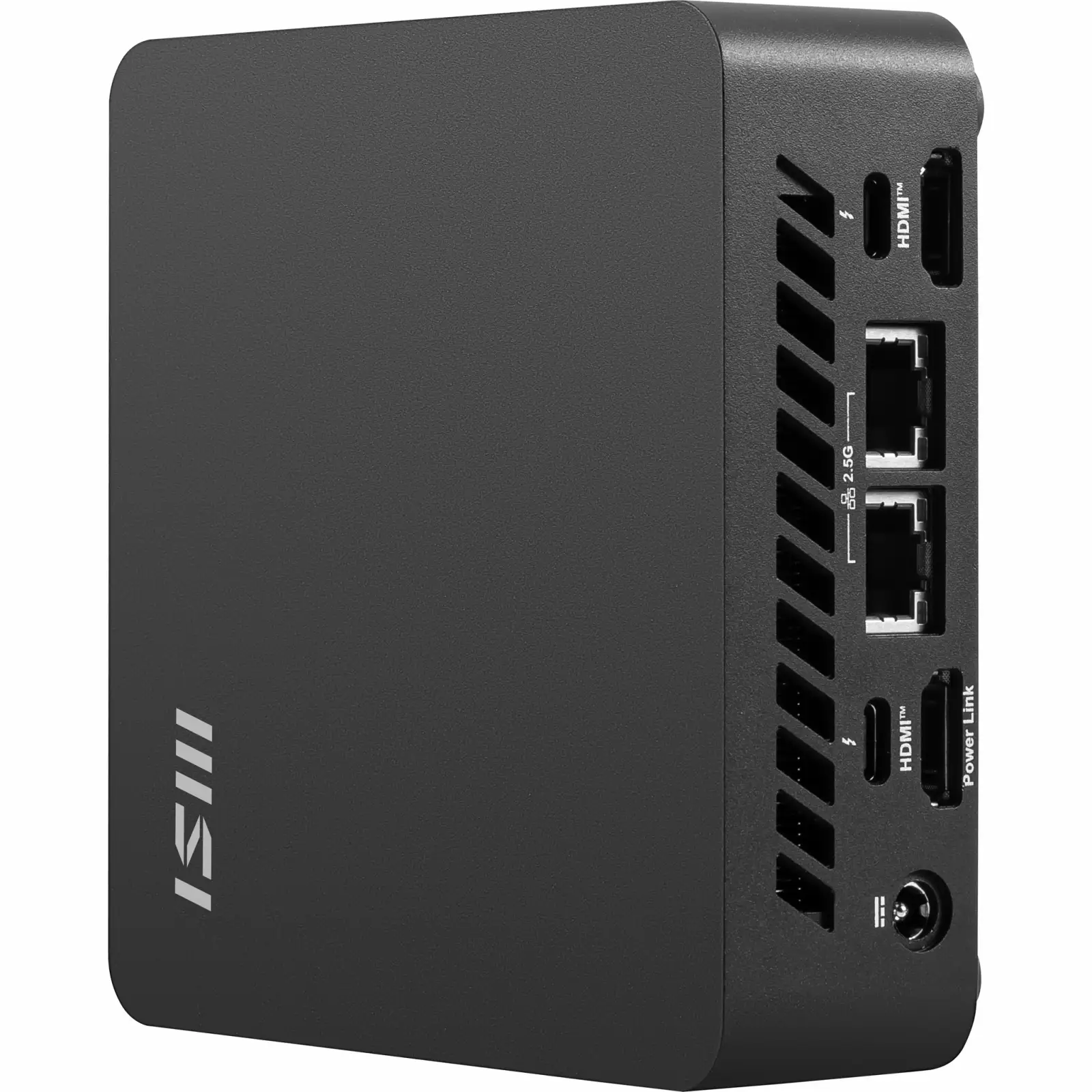

Ethernet LAN (RJ-45) ports

2

Thunderbolt 3 ports quantity

0

Thunderbolt 4 ports quantity

2

DC-in jack

Ja

Expansion slots

Number of M.2 (M) slots

2

Design

Product colour

Black

Cooling type

Active

Housing material

Plastic

Cable lock slot

Ja

Cable lock slot type

Kensington

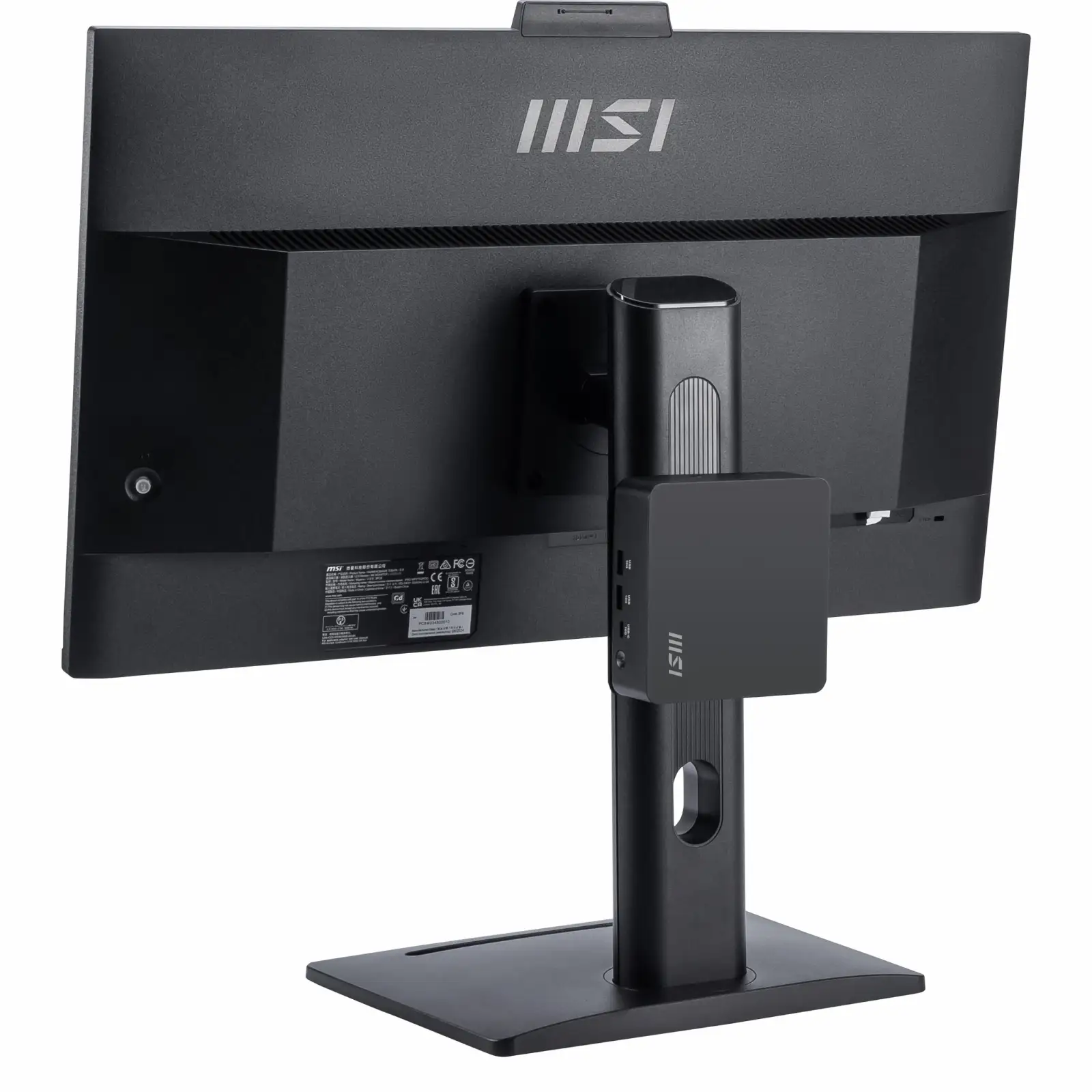

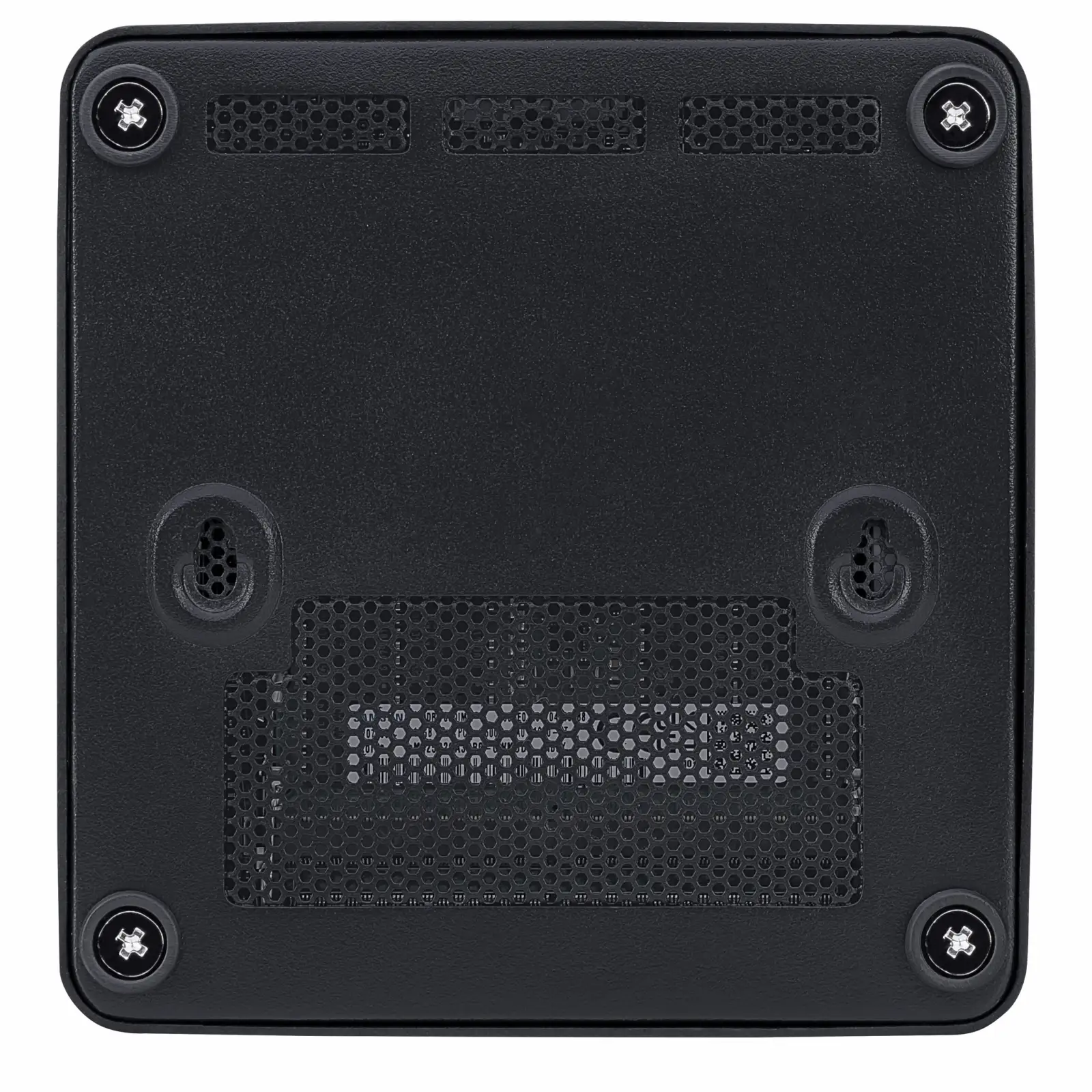

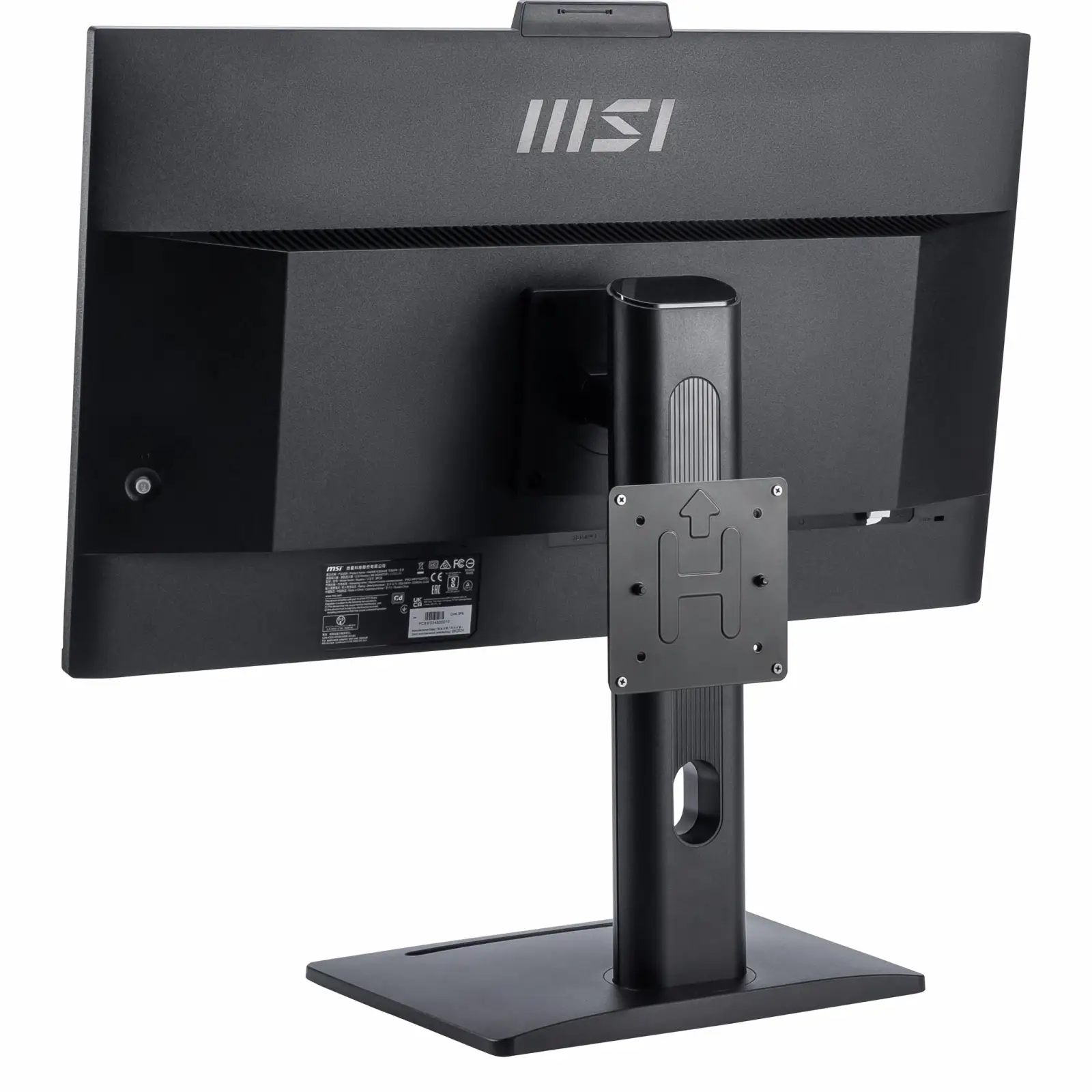

VESA mounting

Ja

Panel mounting interface

100 x 100 mm

Product type

Mini PC barebone

Certificates

Certification

FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)

Software

Operating system installed

Nej

Power

Power supply type

External AC adapter

Power supply

120 W

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 85 %

Storage relative humidity (H-H)

0 - 90 %

Weight & dimensions

Width

119.6 mm

Depth

115.2 mm

Height

37.5 mm

Weight

630 g

Package width

205 mm

Package depth

220 mm

Package height

94 mm

Package weight

1450 g

Packaging content

Power cord included

Ja

AC adapter included

Ja

Display included

Nej

Mouse included

Nej

Keyboard included

Nej

Other features

Warranty period

3 year(s)
