Poynting OMNI-785

Produkt

Tillverkare

Poynting

Produktnamn

OMNI-785

Tillverkarens länk

https://poynting.tech/antennas/omni-785/

Produktkoder

Tillverkarens produktkoder

• A-OMNI-0785-V1-01

GTIN- / EAN-koder

• 6009710923405

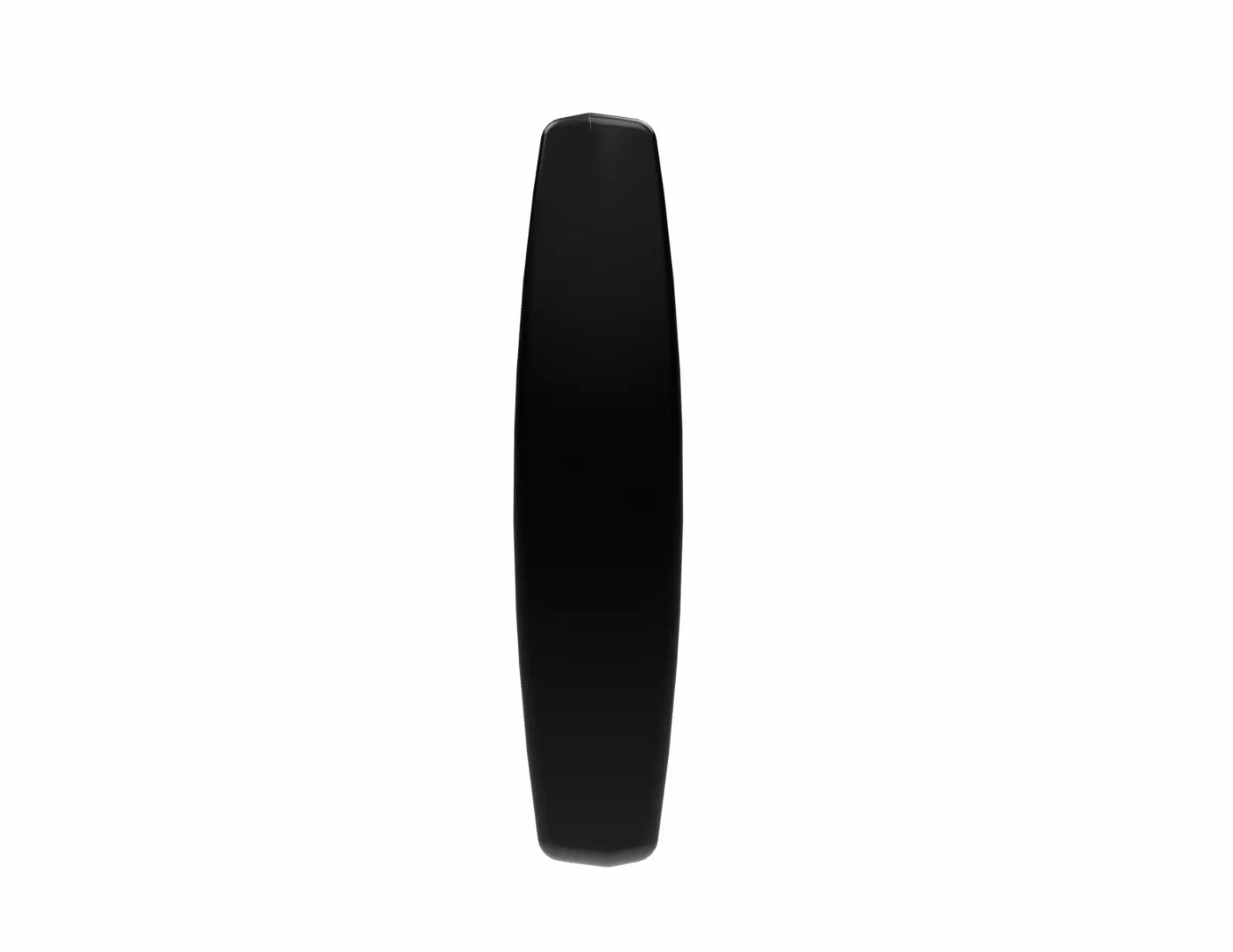

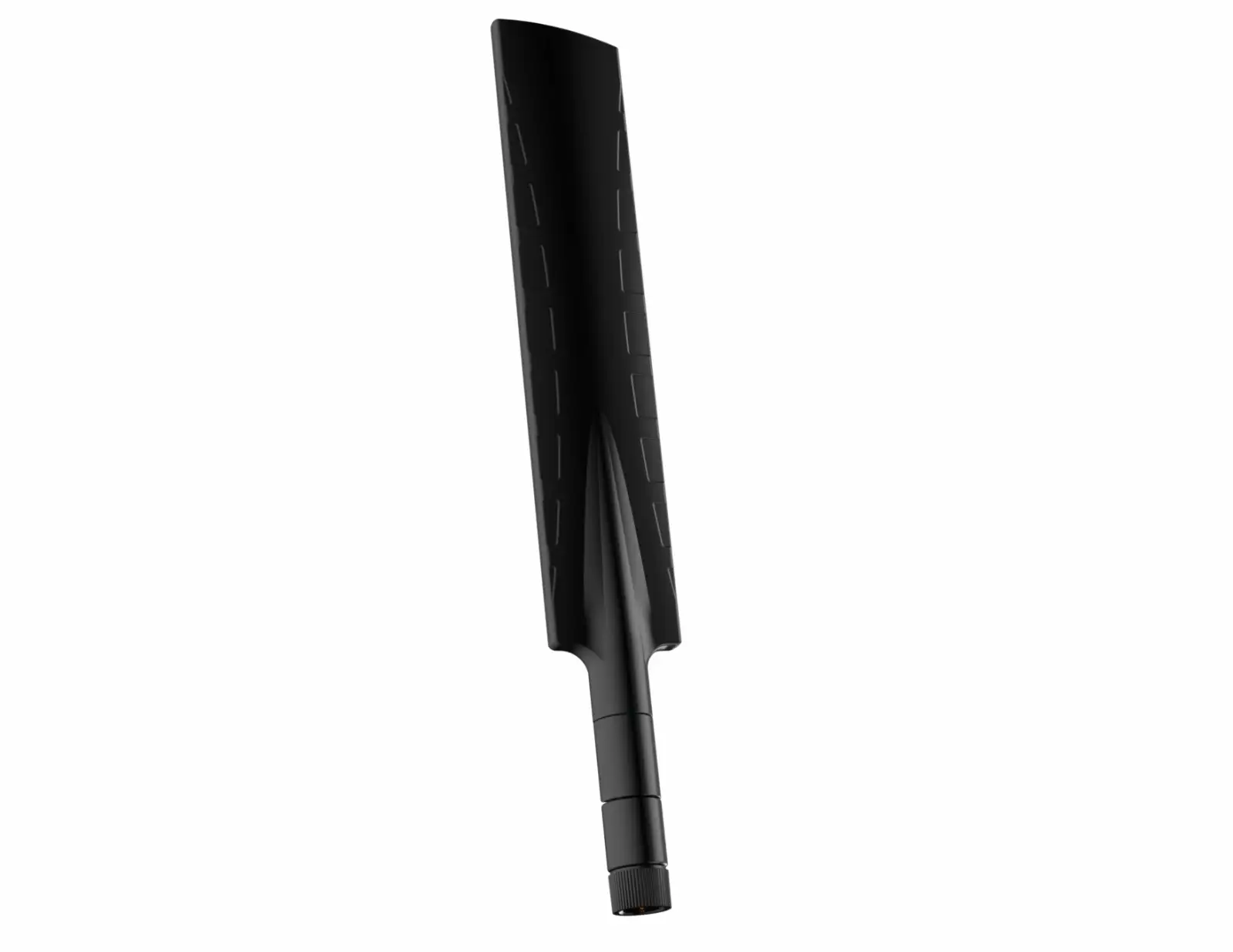

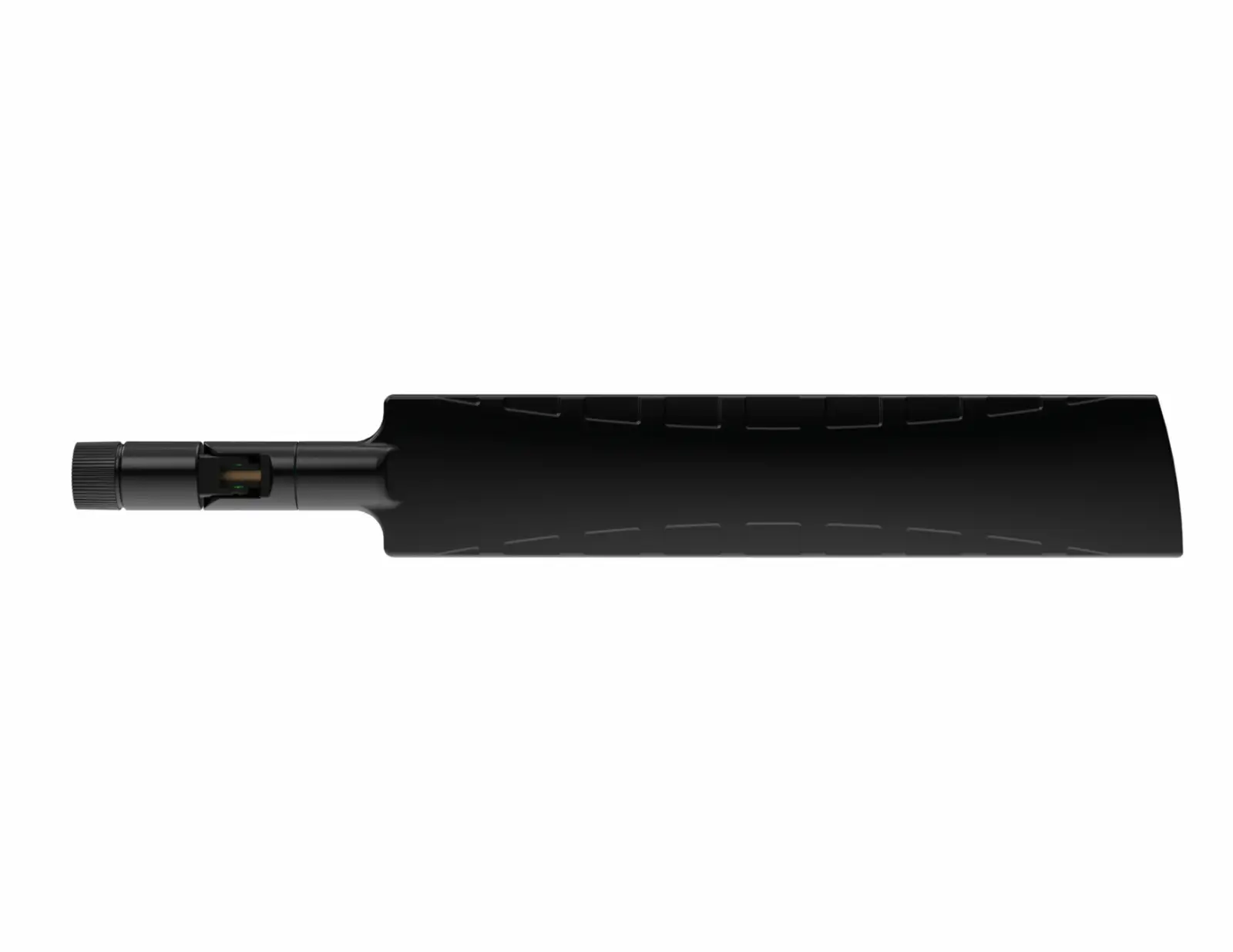

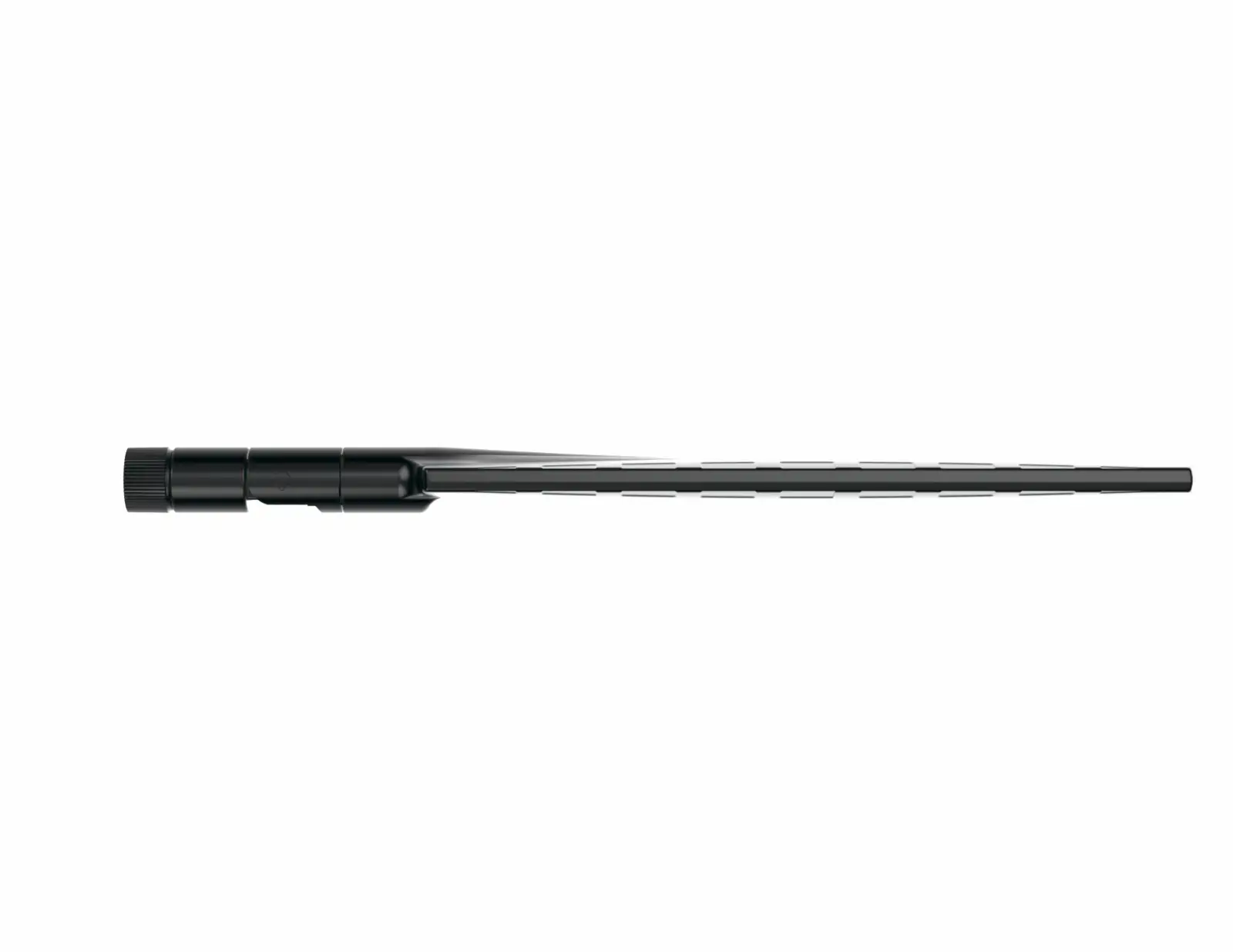

Produktbilder

Performance

Antenna gain level (max)

4 dBi

Frequency band

2.4 - 2.5 / 5 - 7.2 GHz

Antenna gain (2.4 GHz)

2 dBi

Antenna gain (5 GHz)

4 dBi

Impedance

50 Ω

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Features

Antenna type

Omni-directional antenna

Antenna connector type

RP-SMA

Connector gender

Male

Polarization

Linear, vertical

Voltage Standing Wave Ratio (VSWR)

<2.5:1

Product colour

Grey

Housing material

Acrylonitrile butadiene styrene (ABS)

International Protection (IP) code

IP55

Purpose

Indoor

Certificates

Certification

MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95 %

Weight & dimensions

Depth

31 mm

Height

209 mm

Diameter

31 mm

Weight

40 g

Packaging data

Package width

250 mm

Package depth

45 mm

Package height

16 mm

Packaging content

Quantity per pack

1 pc(s)

Mounting brackets included

Ja
