TERRA PC-BUSINESS 7000

Produkt

Tillverkare

TERRA

Produktnamn

PC-BUSINESS 7000

Produktkoder

Tillverkarens produktkoder

• 1000160

GTIN- / EAN-koder

• 4039407089451

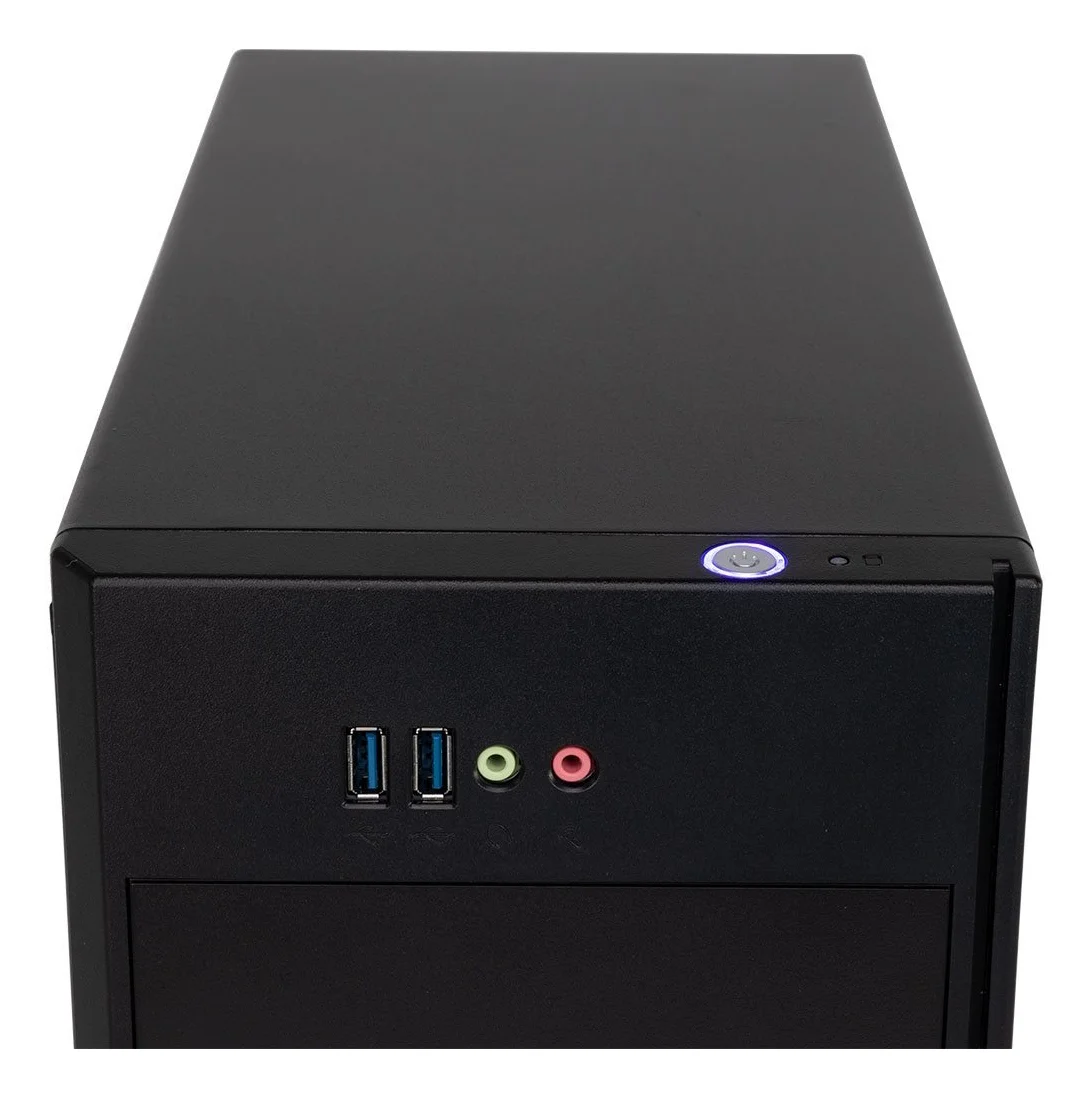

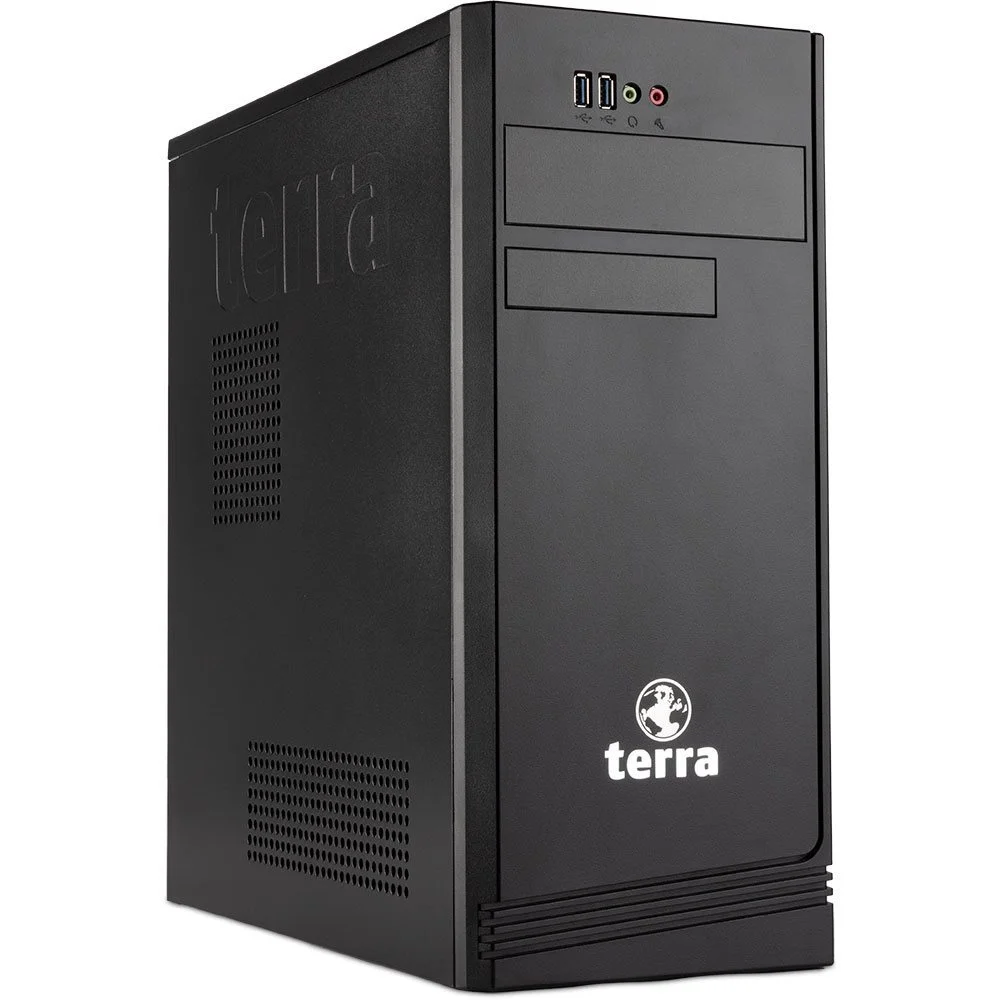

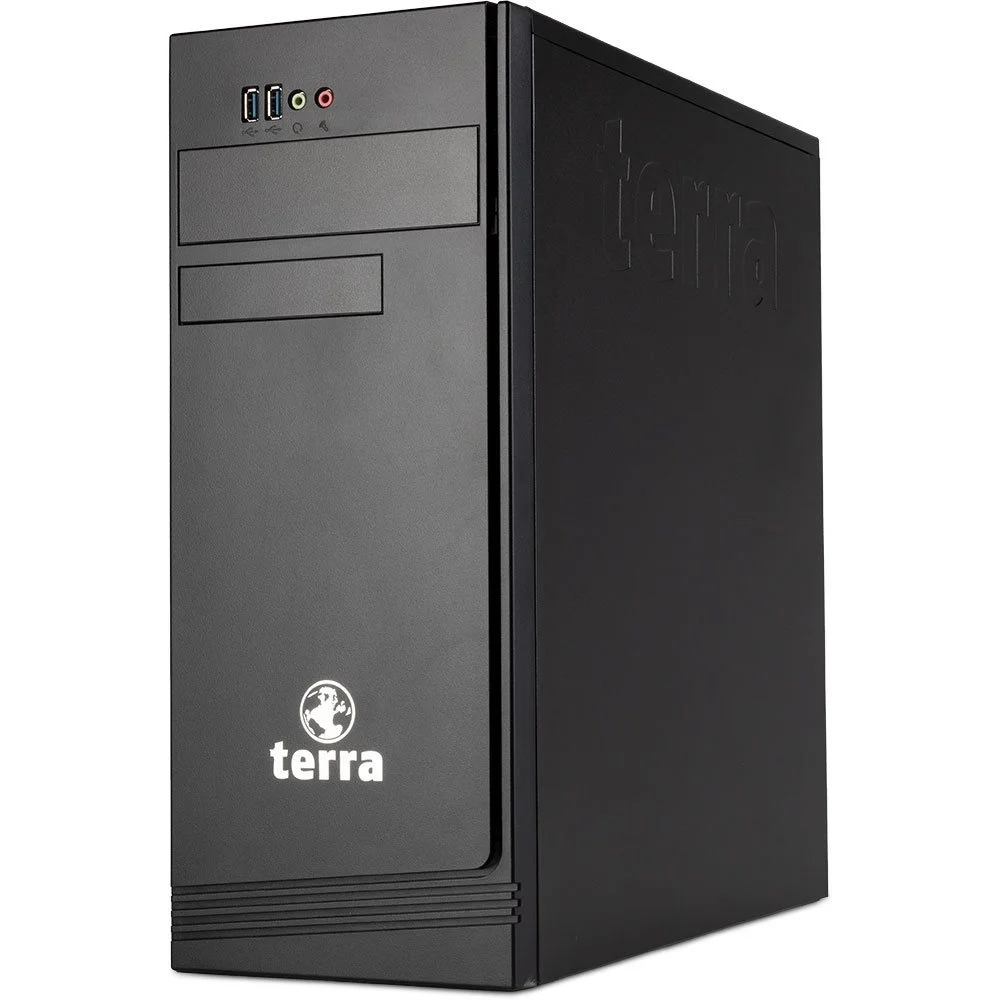

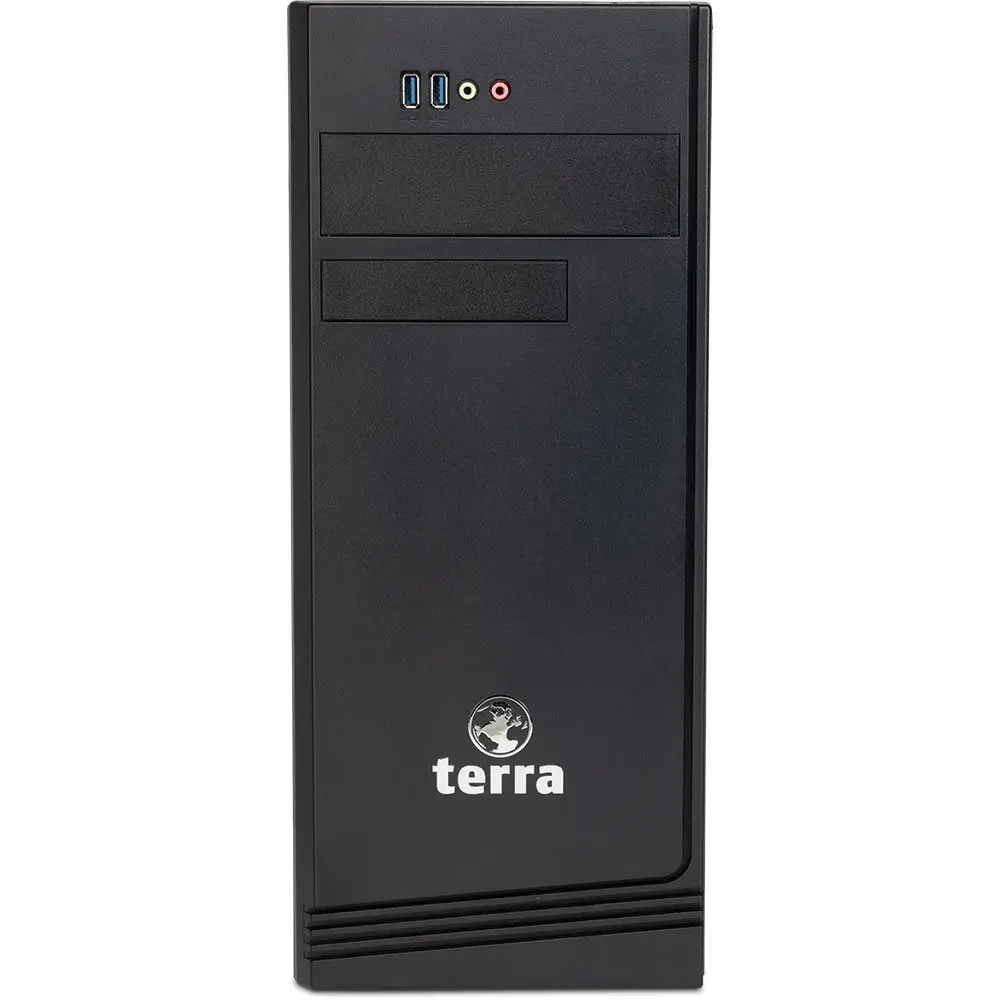

Produktbilder

Processor

Processor manufacturer

AMD

Processor family

AMD Ryzen™ 7

Processor generation

AMD Ryzen 8000 Series

Processor model

8700G

Processor cores

8

Processor threads

16

Processor boost frequency

5.1 GHz

Processor frequency

4.2 GHz

Processor cache

16 MB

Processor cache type

L2 & L3

Number of processors installed

1

Processor socket

Socket AM5

Processor base power

65 W

Neural processor unit (NPU)

Neural processor unit (NPU)

AMD Ryzen AI

NPU performance up to

16 TOPs

Memory

Internal memory

16 GB

Maximum internal memory

96 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

1 x 16 GB

Memory slots

2x DIMM

Memory clock speed

4800 MHz

Storage

Total storage capacity

1000 GB

Optical drive type

Nej

Storage media

SSD

Number of storage drives supported

6

Total SSDs capacity

1000 GB

Number of SSDs installed

1

SSD capacity

1000 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

RAID support

Ja

RAID levels

1, 0, 10

Storage options

2x M.2 (Key M) 2280/2260/2242, PCIe 4.0 x4 mode, 4x SATA 6Gb/s ports ¦ Supports SATA & PCIe Raid 0/1/10

Graphics

Discrete graphics card

Nej

On-board graphics card

Ja

Discrete graphics card model

Not available

On-board GPU manufacturer

AMD

On-board graphics card family

AMD Radeon

On-board graphics card model

AMD Radeon 780M

Number of external displays supported

4

Graphics card HDMI ports quantity

1

Graphics card DisplayPorts quantity

1

Graphics card DVI-D ports quantity

1

Graphics card VGA (D-Sub) ports quantity

1

Resolution description

DisplayPort 1.2 max. 4096 x 2304@60Hz ¦ HDMI 2.1 max. 4096 x 2160@60Hz ¦ D-Sub (VGA) max. 1920 x 1200@60Hz

Performance

Product type

PC

Market positioning

Business

Motherboard chipset

AMD A620

Trusted Platform Module (TPM)

Ja

Trusted Platform Module (TPM) version

2.0

Audio output channels

8.0 channels

Sound pressure level

24 dB

Network

Ethernet LAN

Ja

Ethernet LAN data rates

10,100,1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

DisplayPorts quantity

1

HDMI ports quantity

1

HDMI version

2.1

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Ja

VGA (D-Sub) ports quantity

1

DVI port

Ja

PS/2 ports quantity

2

Number of rear USB ports

6

Number of front USB ports

2

Number of front audio ports

2

Expansion slots

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Expansion slots

1x PCIe 4.0 x16¦ 2x PCI 3.0 x1¦ 1x PCI

Power

Power supply

400 W

Power supply input voltage

230 V

Power supply input frequency

50 Hz

Power consumption (typical)

26 W

Power consumption (standby)

1.5 W

Power consumption (off)

0.25 W

80 PLUS certification

80 PLUS Bronze

Design

Chassis type

Midi Tower

Product colour

Black

Cooling type

Active

Software

Operating system installed

Windows 11 Pro

Compatible operating systems

Windows 10, Windows 11

Bundled software

1 Monat Testversion für neue Microsoft 365 Kunden

Display

Display included

Nej

Audio

Audio system

High Definition Audio

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

10 - 75 %

Weight & dimensions

Width

180 mm

Depth

420 mm

Height

435 mm

Weight

8000 g

Packaging content

Mouse included

Ja

Mouse connectivity

Wired

Keyboard included

Ja

Cables included

AC

Manual

Ja

Keyboard

Keyboard connectivity

Wired

Keyboard language

German

Features

Motherboard manufacturer

ASUS Pro A620M-C-CSM 24-7 ready

Other features

Locale

German
