Thermaltake TRS-600AH2NK

Produkt

Tillverkare

Thermaltake

Produktnamn

TRS-600AH2NK

Tillverkarens länk

http://www.thermaltake.com/products-model.aspx?id=C_00002713

Produktkoder

Tillverkarens produktkoder

• PS-TRS-0600NPCWEU-2

GTIN- / EAN-koder

• 4717964401892

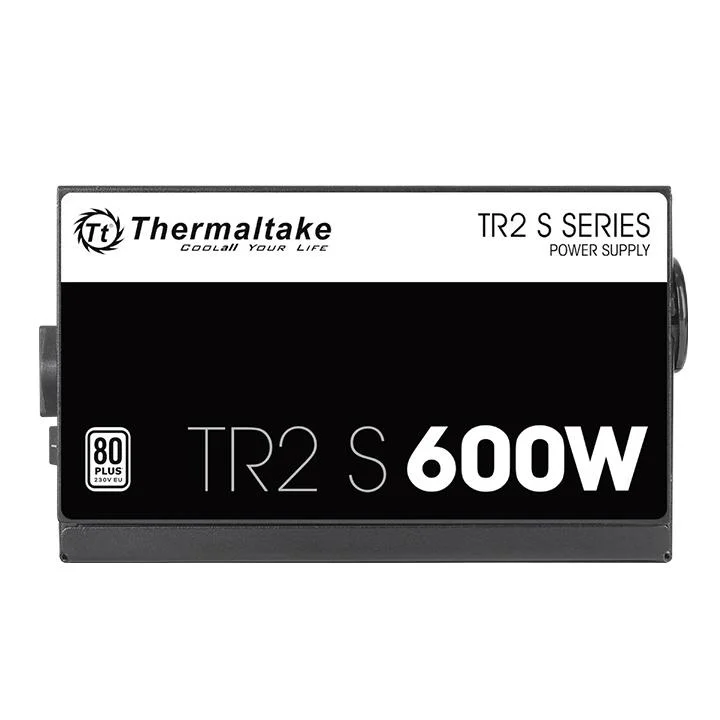

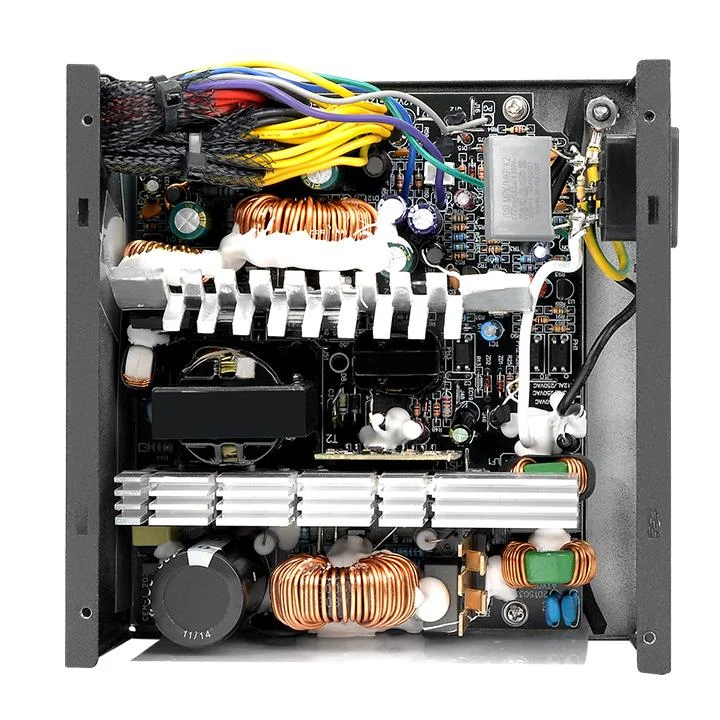

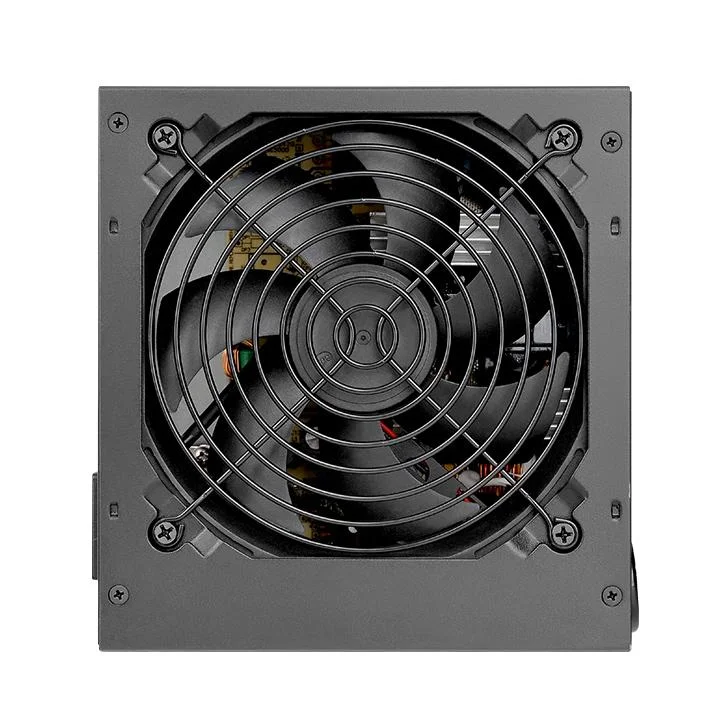

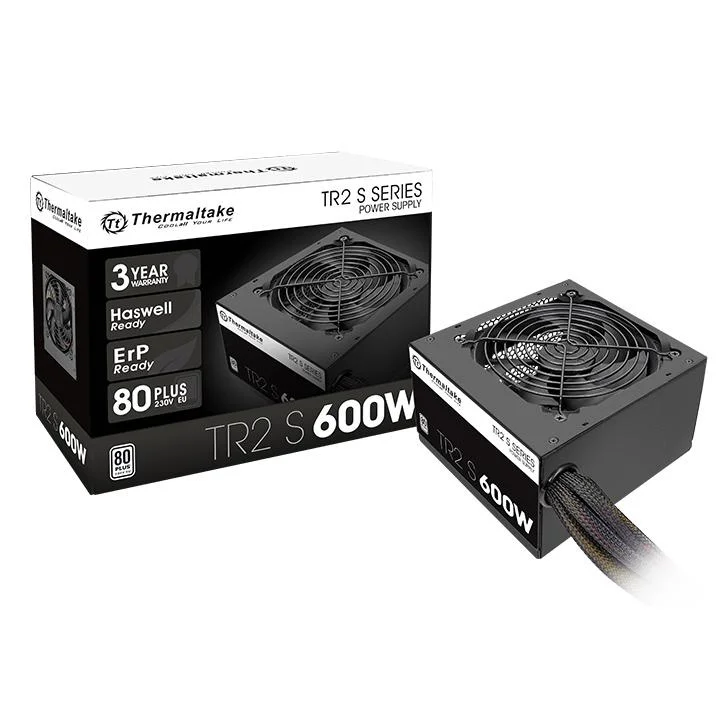

Produktbilder

Power

Total power

600 W

AC input voltage

230 V

AC input frequency

50 - 60 Hz

Input current

8 A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

105 W

Combined power (+12V)

504 W

Combined power (+5V)

105 W

Combined power (-12V)

6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

22 A

Max output current (+12V)

42 A

Max output current (+5V)

17 A

Max output current (-12V)

6 A

Max output current (+5Vsb)

12.5 A

Hold time

16 ms

Efficiency

86 %

Power Good signal delay range

100 - 500 ms

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Peripheral (Molex) power connectors (4-pin)

4

PCI Express power connectors (6+2 pin)

2

Floppy disk drive connector

Ja

Cabling type

Non-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS

ATX version

2.3

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

120 mm

Number of fans

1 fan(s)

Fan speed

1800 RPM

Fan location

Top

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-40 - 50 °C

Operating relative humidity (H-H)

20 - 85 %

Storage relative humidity (H-H)

10 - 95 %

Certificates

Certification

CE/CB/TUV

Weight & dimensions

Width

86 mm

Depth

140 mm

Height

150 mm

Logistics data

Harmonized System (HS) code

84733020
