StarTech.com USB3DOCKHDPC

Produkt

Tillverkare

StarTech.com

Produktnamn

USB3DOCKHDPC

Tillverkarens länk

https://www.startech.com/en-us/USB3DOCKHDPC

Produktkoder

Tillverkarens produktkoder

• USB3DOCKHDPC

GTIN- / EAN-koder

• 0065030859233

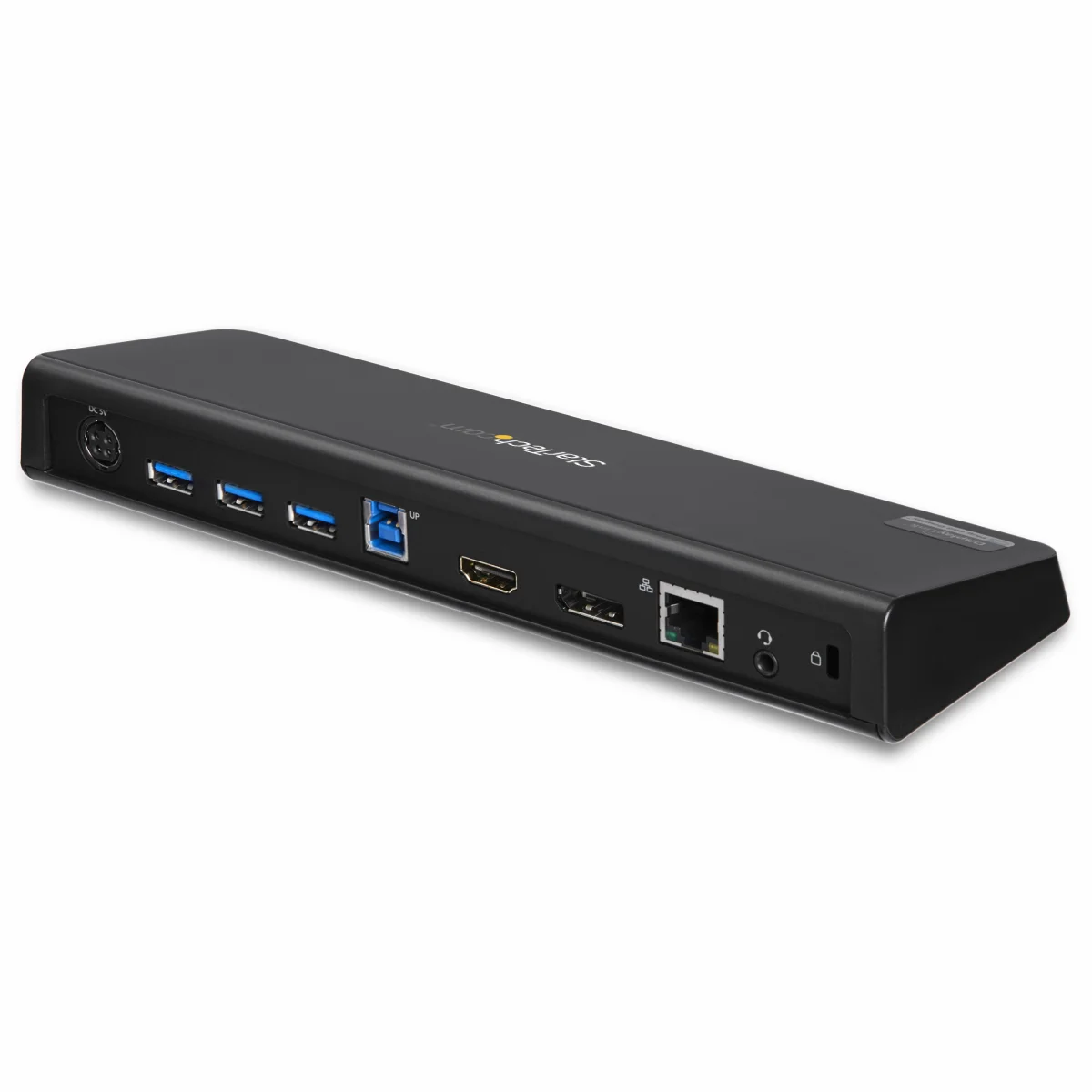

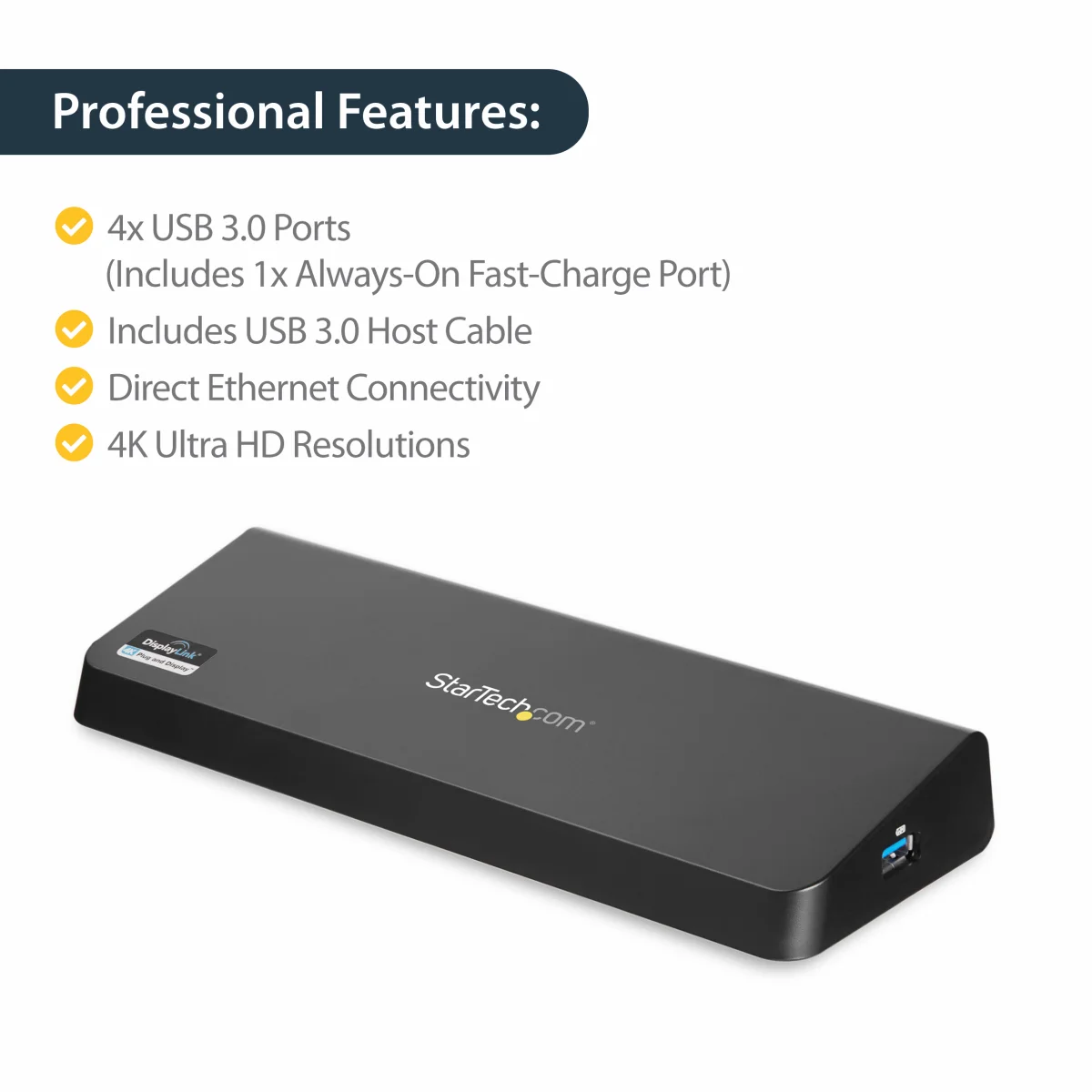

Produktbilder

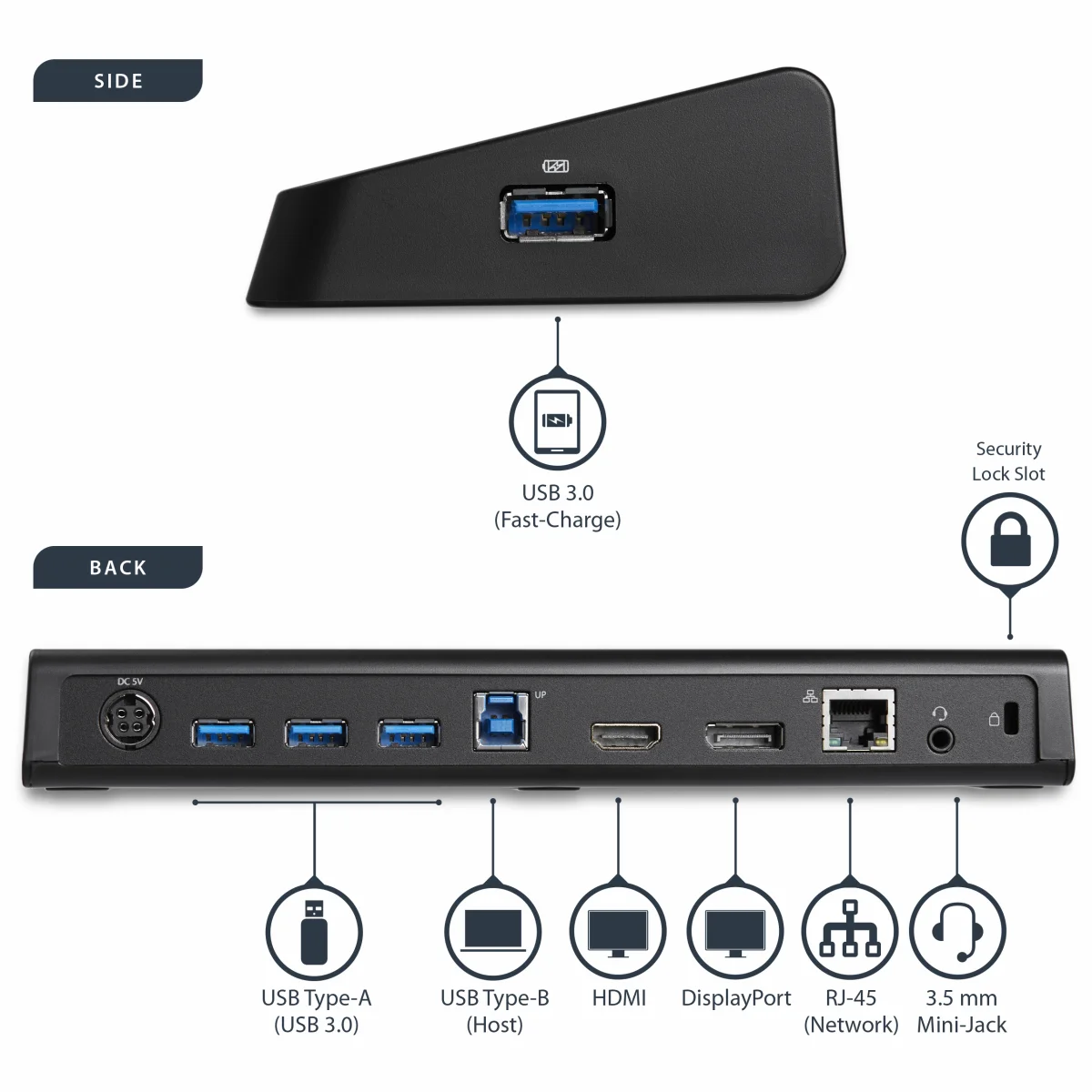

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

1

DisplayPorts quantity

1

Headphone outputs

1

Headphone connectivity

3.5 mm

USB connector type

USB Type-A

DC-in jack

Ja

Network

Ethernet LAN

Ja

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Wake-on-LAN ready

Ja

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Auto MDI/MDI-X

Ja

Full duplex

Ja

Performance

Product colour

Black

Card reader integrated

Nej

Data transfer rate

5 Gbit/s

Maximum digital resolution

3840 x 2160 pixels

Cable lock slot

Ja

LED indicators

Activity, Link

Charging function

Ja

UASP support

Ja

Housing material

Plastic, Steel

Brand compatibility

Any brand

Certification

CE, FCC, DisplayLink

Power

AC input voltage

100-240 V

Input current

1.5 A

Output voltage

5 V

Output current

6.5 A

Power consumption (typical)

32.5 W

Compatible power plug types

AU, EU, UK, US

Wireless charging

Nej

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Mac compatibility

Ja

Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

0 - 90 %

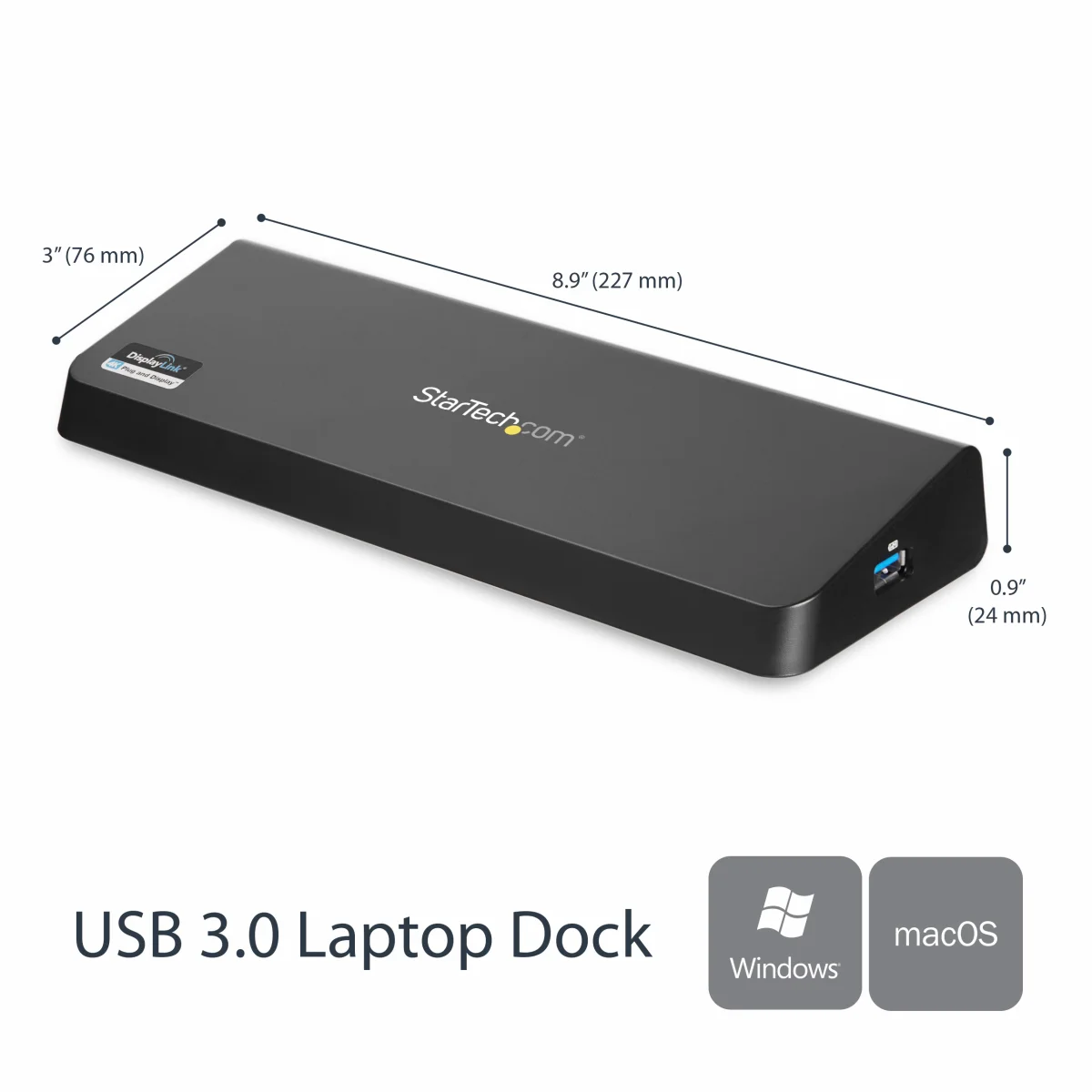

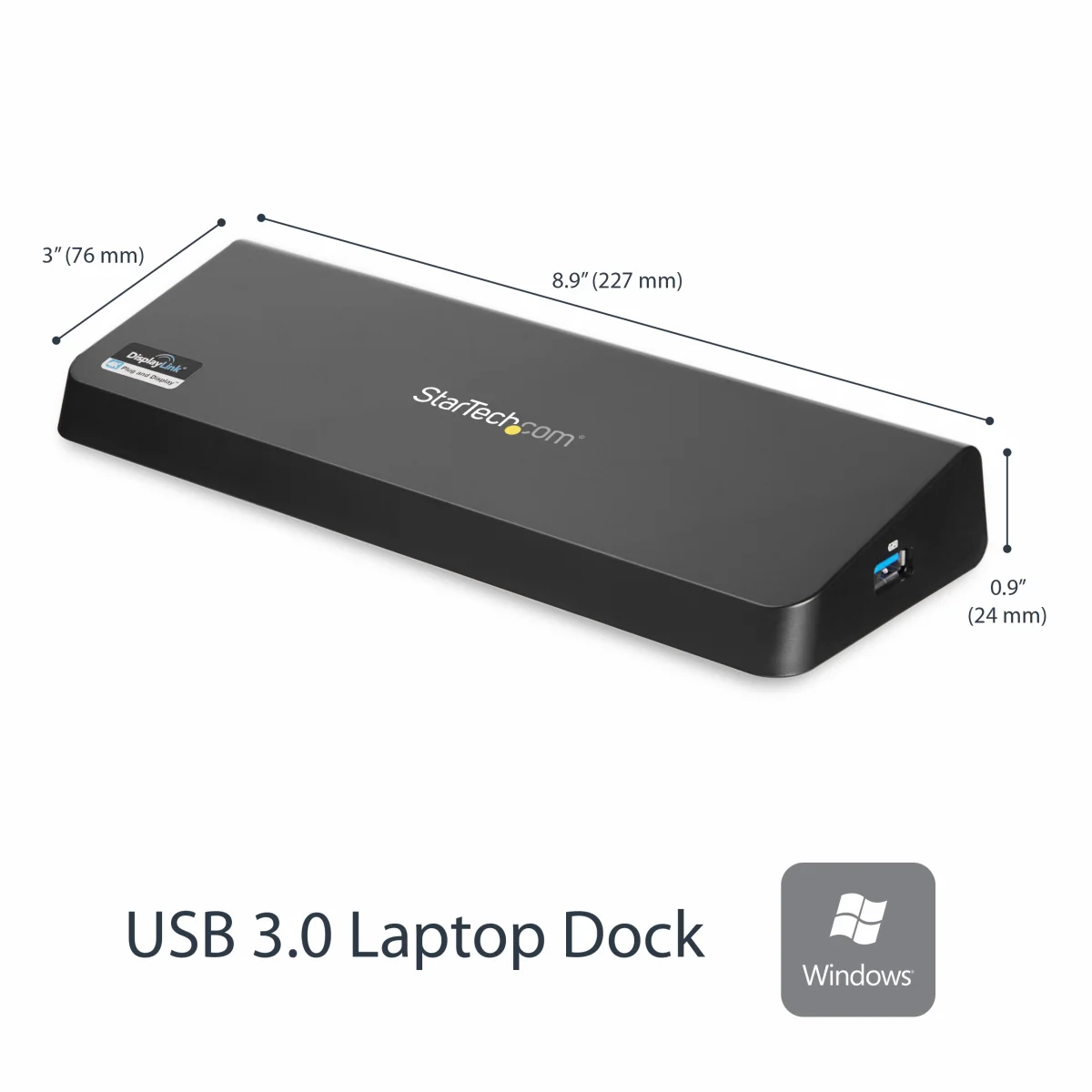

Weight & dimensions

Width

76 mm

Depth

227 mm

Height

24 mm

Weight

277 g

Packaging data

Package width

251 mm

Package depth

198 mm

Package height

71 mm

Package weight

1100 g

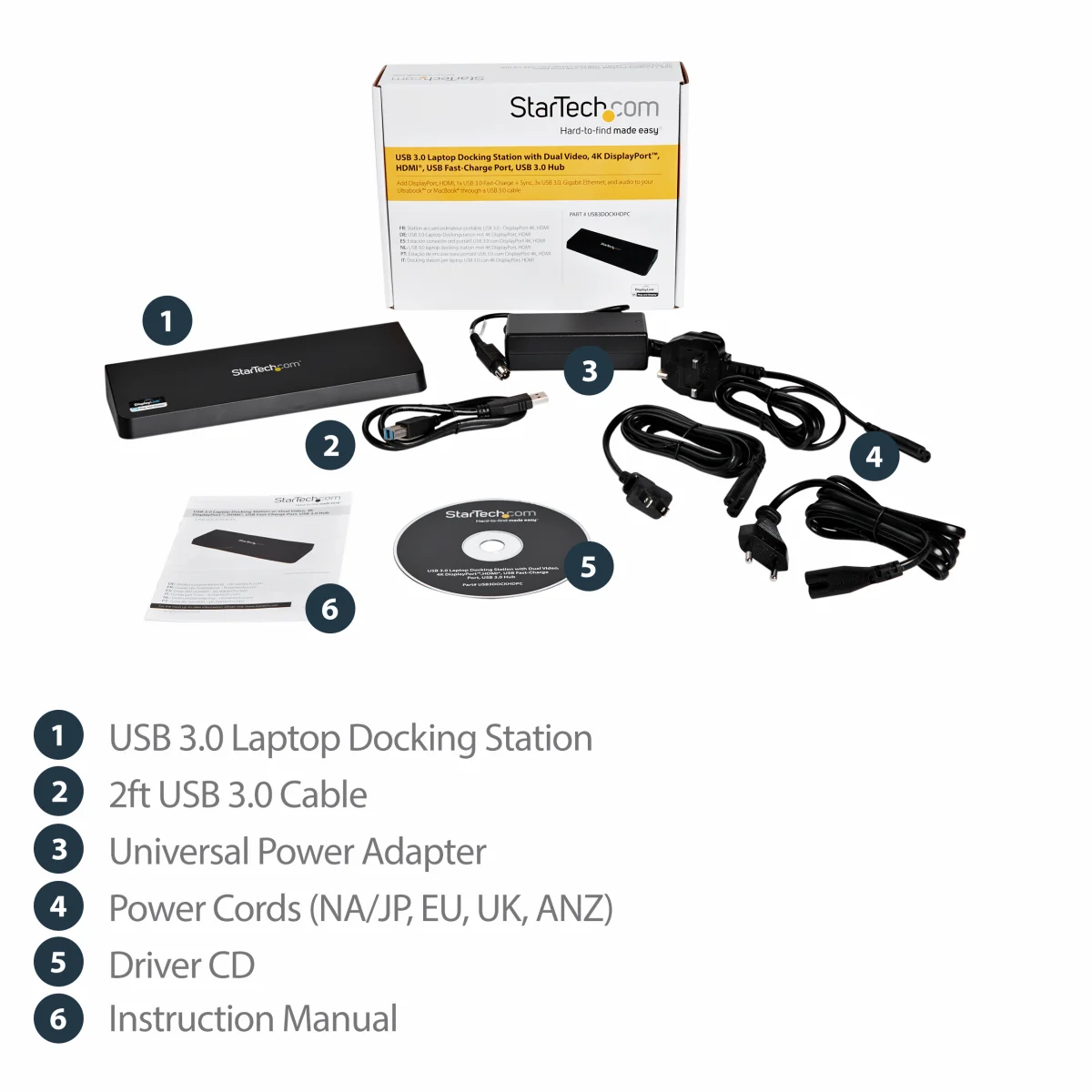

Packaging content

Cables included

AC, USB

AC adapter included

Ja

Manual

Ja

Drivers included

Ja

Technical details

Compliance certificates

RoHS

Logistics data

Products per master (outer) case

10 pc(s)

Master (outer) case width

390 mm

Master (outer) case length

426 mm

Master (outer) case height

302 mm

Products per shipping (inner) case

150 pc(s)

Harmonized System (HS) code

84733020

Other features

Cable length

0.6 m

Chipset

DisplayLink - DL-5900, VLI - VL812

USB data transfer rates

5000 Mbit/s
