MSI MPG A850G PCIE5

Produkt

Tillverkare

MSI

Produktfamilj / -serie

MPG

Produktnamn

A850G PCIE5

Tillverkarens länk

https://www.msi.com/Power-Supply/MPG-A850G-PCIE5/Overview

Produktkoder

Tillverkarens produktkoder

• MPG A850G PCIE5

GTIN- / EAN-koder

• 4719072972189

Produktbilder

Power

Total power

850 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

120 W

Combined power (+12V)

850 W

Combined power (+5V)

120 W

Max output current (+3.3V)

22 A

Max output current (+12V)

25 A

Max output current (-12V)

0.3 A

Efficiency

90 %

Power protection features

Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

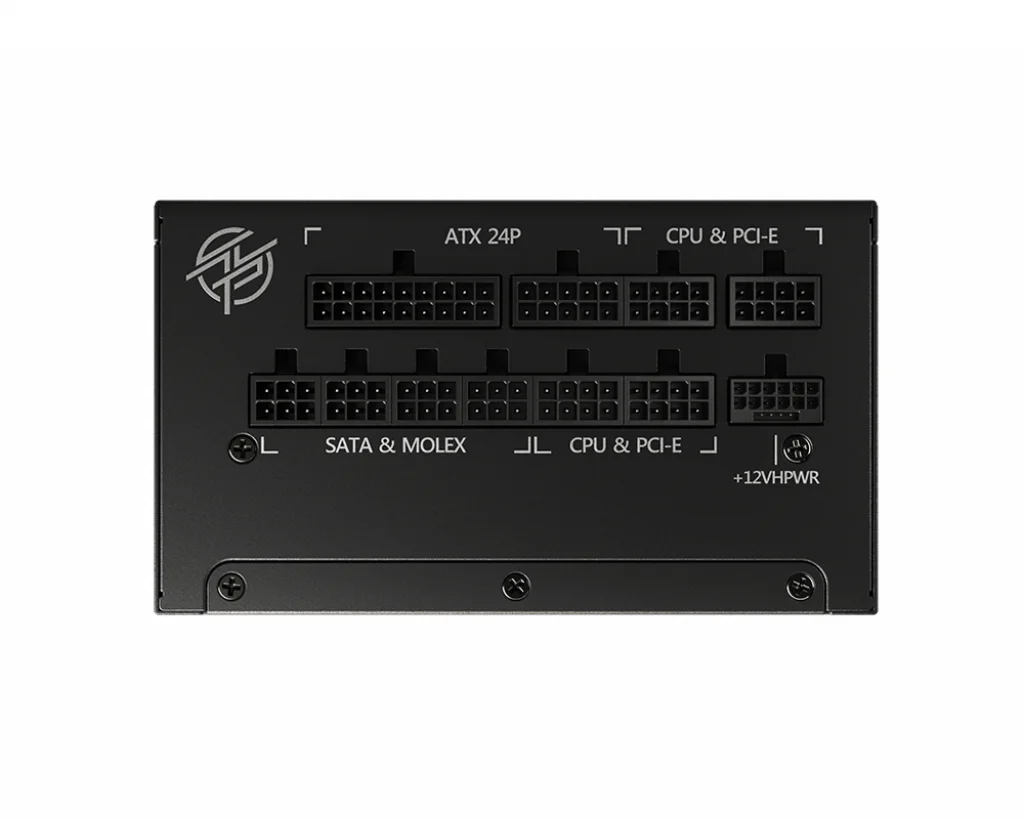

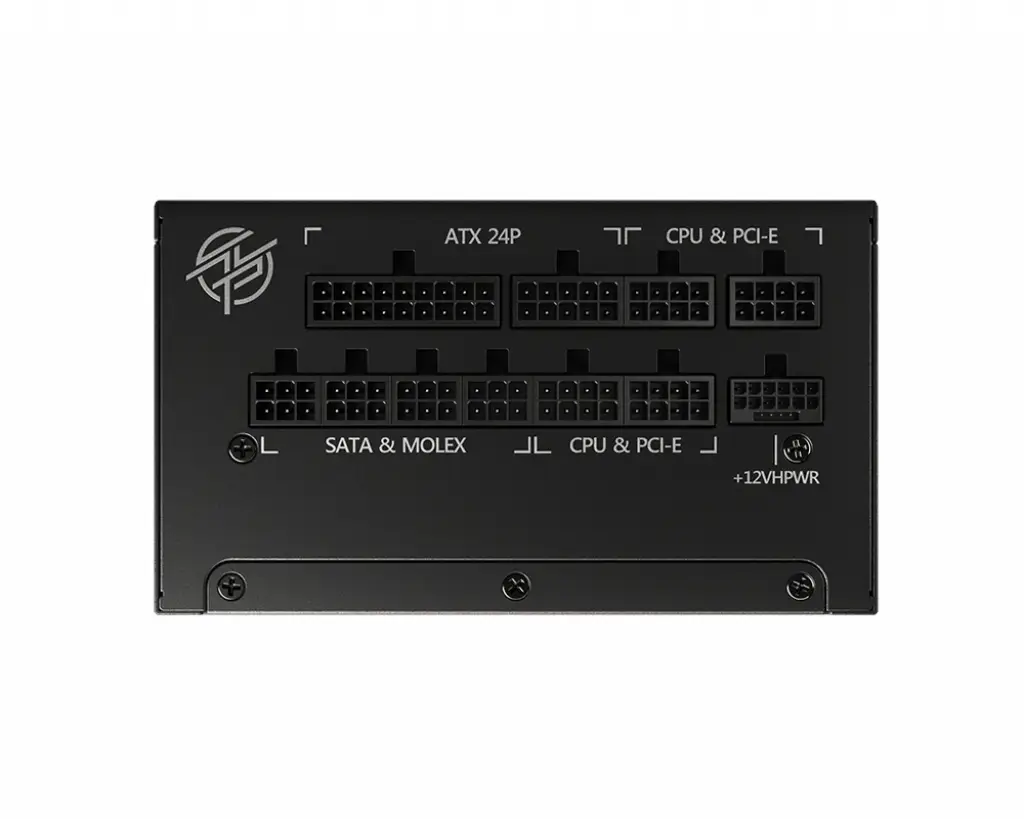

Motherboard power connector

24-pin ATX

Motherboard power cable length

600 mm

Number of SATA power connectors

8

SATA power cable length

950 mm

Peripheral (Molex) power connectors (4-pin)

4

EPS power connector (8-pin)

Nej

EPS power connector (4+4 pin)

Ja

PCI Express power connectors (6-pin)

0

PCI Express power connectors (6+2 pin)

6

PCI Express power connectors (8-pin)

0

PCI Express power connectors (12+4 pin)

0

PCI Express power connectors (12-pin)

0

PCI Express power cable length

500 mm

CPU power connector (4+4 pin)

Ja

ATX Power connector (24-pin)

Ja

Floppy disk drive connector

Ja

PCI Express connector

Ja

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Design

Product colour

Black

Cooling type

Active

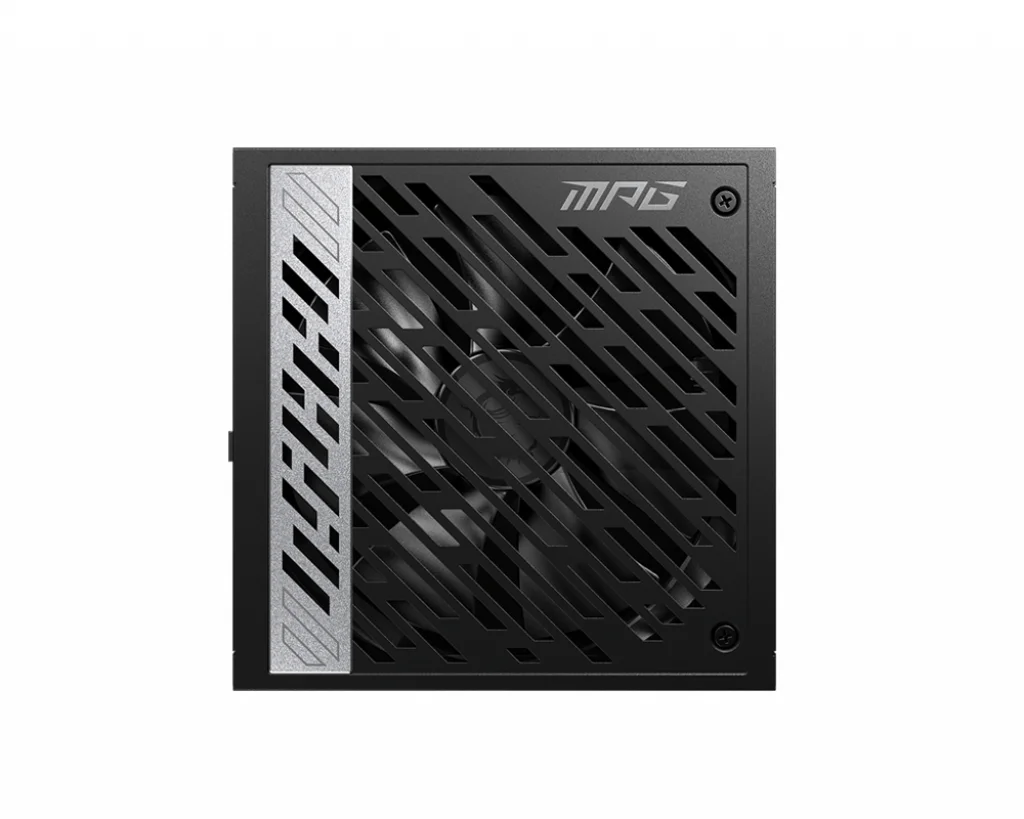

Fan diameter

135 mm

Number of fans

1 fan(s)

Illumination

Nej

On/off switch

Ja

Weight & dimensions

Width

150 mm

Depth

150 mm

Height

86 mm

Logistics data

Harmonized System (HS) code

84733020

Country of origin

China
