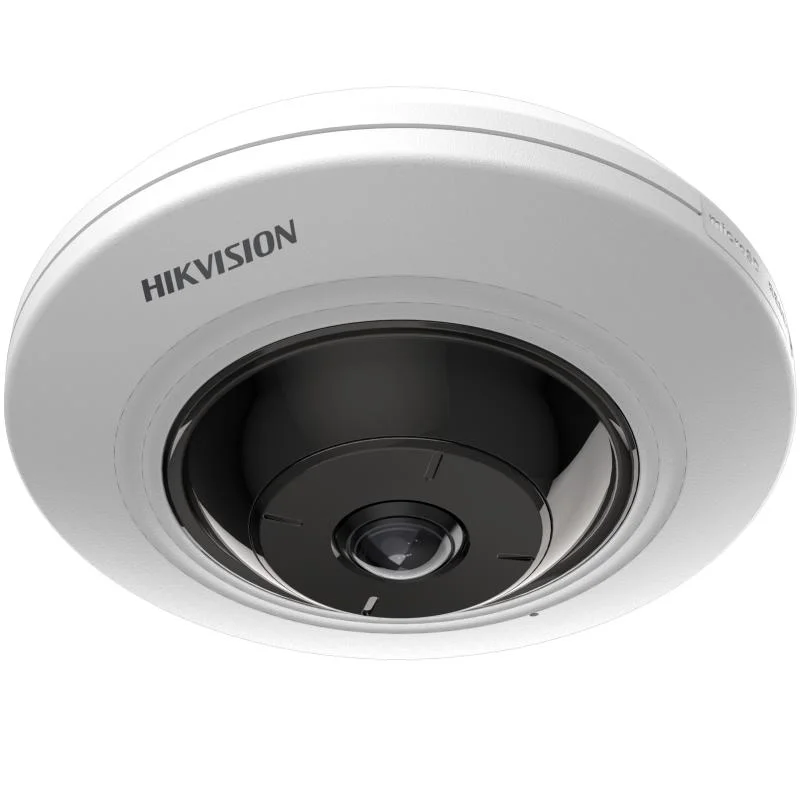

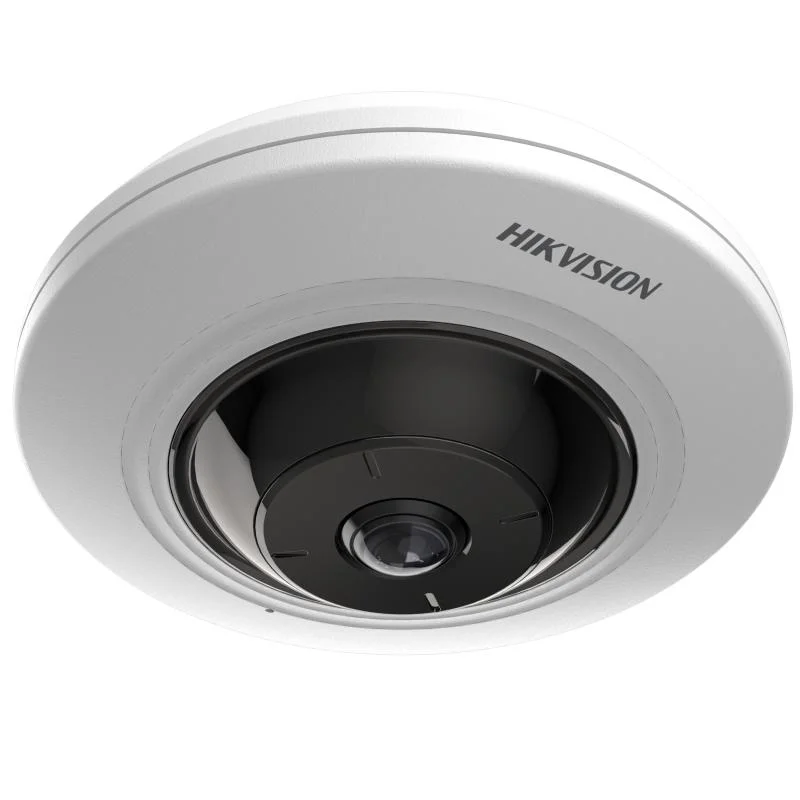

Hikvision DS-2CD2955G0-ISU(1.05MM)

Produkt

Tillverkare

Hikvision

Produktnamn

DS-2CD2955G0-ISU(1.05MM)

Tillverkarens länk

https://www.hikvision.com/en/products/IP-Products/Network-Came..

Produktkoder

Tillverkarens produktkoder

• DS-2CD2955G0-ISU(1.05MM)

GTIN- / EAN-koder

• 6931847191436
• 6936422130404

Produktbilder

Performance

Type

IP security camera

Placement supported

Indoor

Connectivity technology

Wired

Wide Dynamic Range (WDR)

Ja

Day/night mode

Ja

Infrared (IR) cut-off filter

Ja

Alarm input/output

Ja

Built-in light

Ja

Number of languages

13

Languages support

Multi

Dynamic range

120 dB

Design

Form factor

Dome

Mounting type

Ceiling/Wall/Desk

Product colour

White

Camera

Minimum illumination

0 lx

Lens viewing angle, horizontal

180 °

Lens viewing angle, vertical

180 °

Lens viewing angle, diagonal

180 °

Camera shutter speed

1/3 - 1/100000 s

Image sensor

Sensor type

CMOS

Number of sensors

1

Optical sensor size

1/2.7 "

Progressive scan

Ja

Lens system

Number of lenses

1

Detect distance

21 m

Observe distance

8 m

Recognize distance

4 m

Fixed focus

Ja

Maximum aperture number

2.25

Identify distance

2 m

Fixed focal length

1.05 mm

Night vision

Night vision

Ja

Night vision distance

8 m

LED type

IR/White

Infra-red wavelength

850 nm

Video

Maximum resolution

2560 x 1920 pixels

Total megapixels

5 MP

Video compression formats

H.264, H.264+, H.265, H.265+, M-JPEG

Supported graphics resolutions

640 x 480 (VGA), 1280 x 960, 2048 x 1536 (QXGA), 2560 x 1920

Frame rate

30 fps

Noise reduction

Ja

Noise reduction technology

3D noise reduction

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Bit rate

32 Kbps - 16 Mbps

Back Light Compensation (BLC)

Ja

Region of Interest (ROI) encoding

Ja

Audio

Audio formats supported

AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM

Built-in microphone

Ja

Bit rate range

16 - 160 Kbit/s

Sample rates

8 - 16 kHz

Network

Ethernet LAN

Ja

Wi-Fi

Nej

Bluetooth

Nej

Ethernet interface type

Fast Ethernet

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Number of users

32 user(s)

User access level

Administrator, Operator, User

Quality of Service (QoS) support

Ja

Live view

Ja

Number of simultaneous live view channels

6 channels

Storage

Built-in HDD

Nej

Card reader integrated

Ja

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size

256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Terminal block port

Ja

Security

Alarm input channels

1

Alarm output channels

1

Password protection

Ja

Video motion detection

Ja

Active tampering alarm

Ja

IP address filtering

Ja

HTTPS encryption

Ja

Intelligent Video Surveillance (IVS) system features

Intrusion, Line crossing detection

Heartbeat

Ja

Mirror

Ja

Audit log

Ja

Digest authentication

Ja

Network access storage (NAS)

Ja

Management features

Reset button

Ja

Power

Power source type

DC, PoE

Power consumption (max)

6 W

Power consumption (Power over Ethernet (PoE))

7.5 W

DC output voltage

12

DC output current

0.5 A

Operational conditions

Operating temperature (T-T)

-10 - 50 °C

Storage temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

0 - 95 %

Storage relative humidity (H-H)

0 - 95 %

Weight & dimensions

Height

41.2 mm

Diameter

119.9 mm

Weight

320 g

Packaging data

Package width

150 mm

Package depth

125 mm

Package height

99 mm

Package weight

500 g

Sustainability

Compliance certificates

BIS, CB, CE, Industry Canada (IC), KC, RoHS, UL

Sustainability compliance

Ja

Packaging content

Number of cameras

1
