Funktioner
- Switch typ
- hanterad
- Typ av grundläggande RJ-45 Ethernet-portar
- Gigabit Ethernet (10/100/1000)
- Adresstabellstorlek
- 16000 poster
- Switch-lager
- L3
Recensioner
Recensera produktLägsta pris på 30 dagar
13 571 kr
+9,43 %
Priset är nu 1 280 kr högre.
PrishistorikInformation
Produkt
- Tillverkare
- Ruijie Networks
- Produktnamn
- RG-CS83-12GT4XS-P
- Tillverkarens länk
- https://www.ruijie.com/en-global/products/switches/campus-swit..
Produktkoder
- Tillverkarens produktkoder
- RG-CS83-12GT4XS-P
- GTIN- / EAN-koder
- 6971693276192

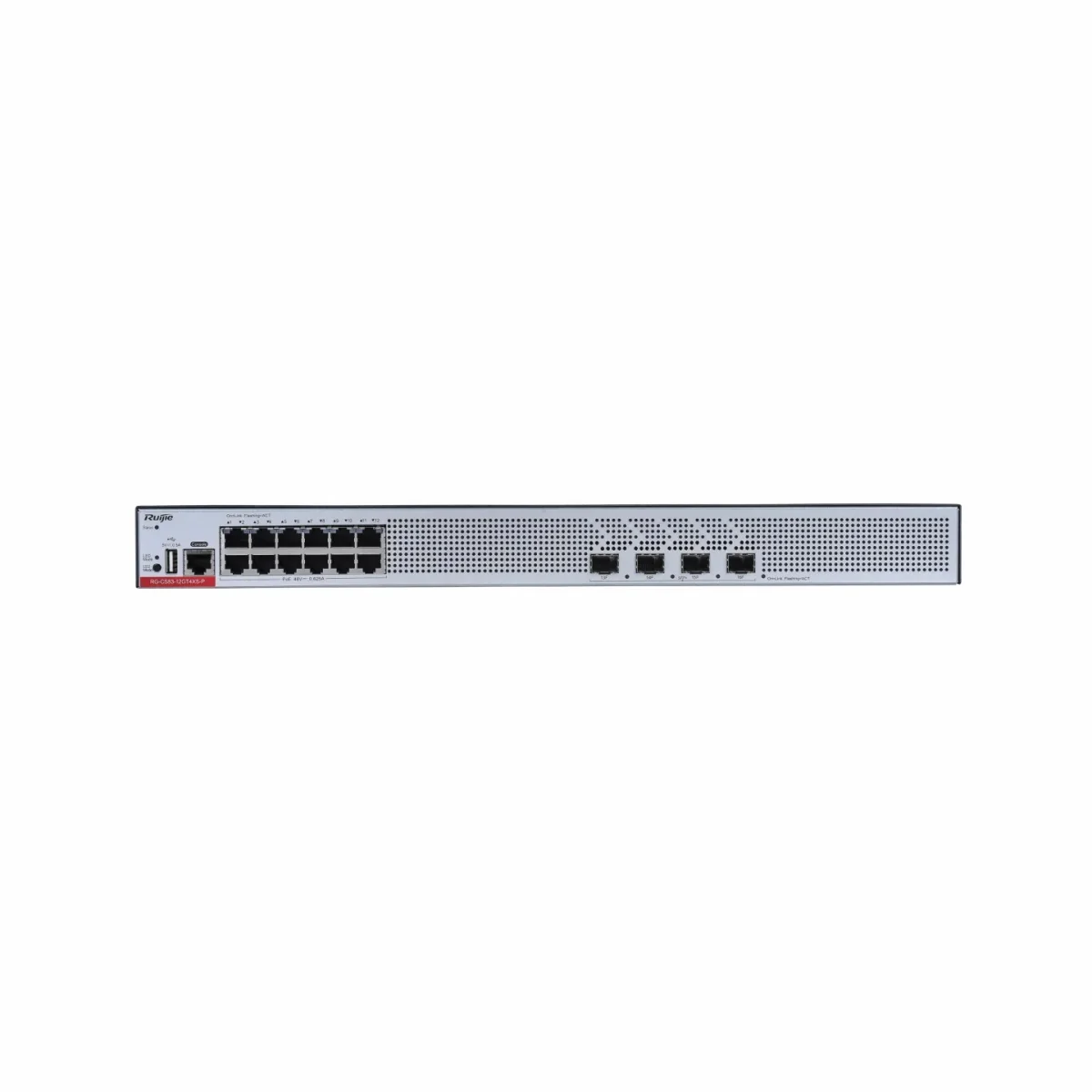

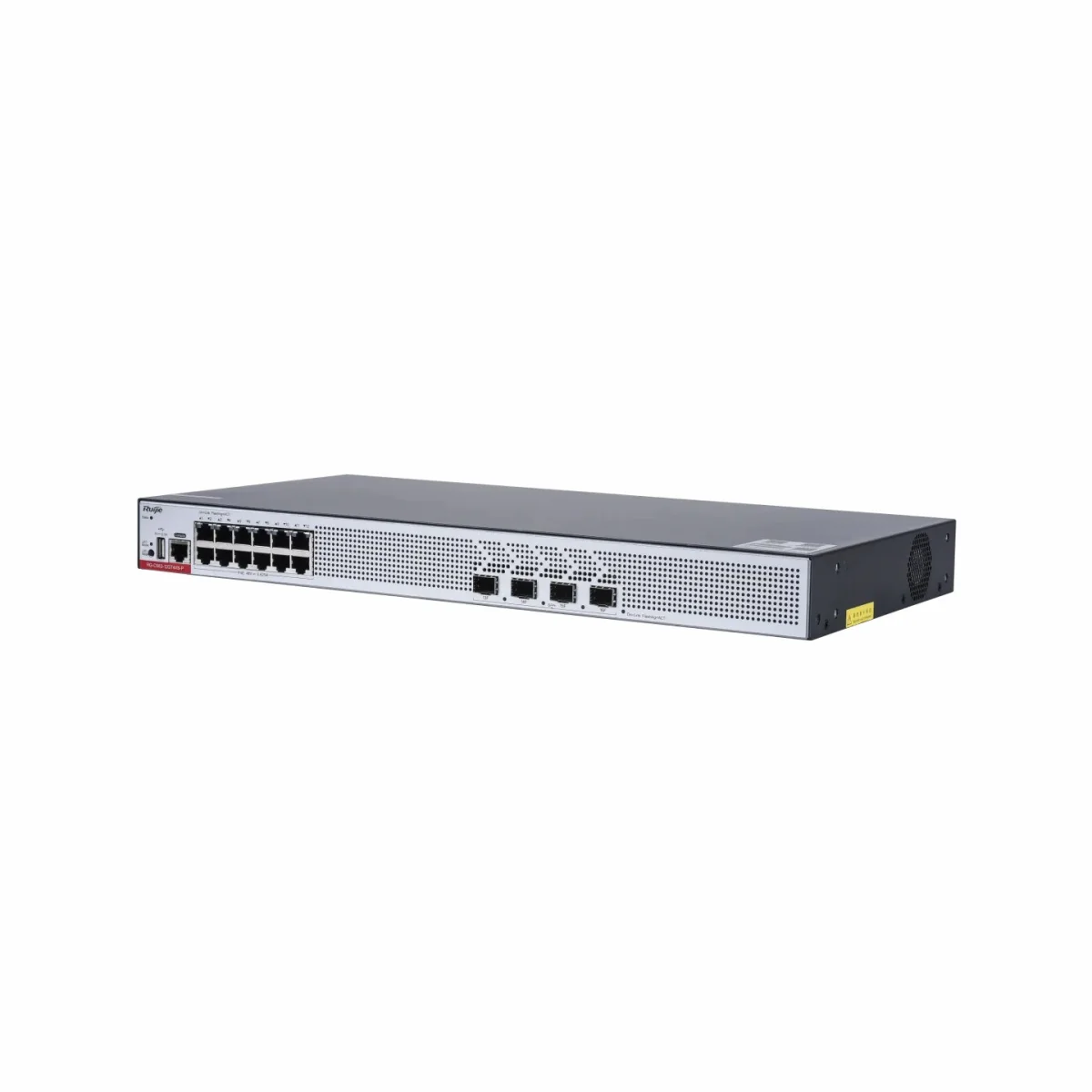

Produktbilder
Management features
- Switch type
- Managed
- Switch layer
- L3
- Quality of Service (QoS) support
- Ja
- Cloud-managed
- Ja
- Traffic classification
- Ja
- ARP inspection
- Ja
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity
- 4
- Number of management ports
- 1 pc(s)
- USB 2.0 ports quantity
- 1
Network
- Networking standards
- IEEE 802.1p, IEEE 802.3ah, IEEE 802.3az
- 10G support
- Ja
- Auto-negotiation
- Ja
- IPv4 routes
- 6000
- IPv6 routes
- 2000
- VLAN support
- Ja
- Virtual LAN features
- IP subnet–based VLAN, Interface-based VLAN, MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
- Number of VLANs
- 4000
Data transmission
- MAC address table
- 16000 entries
- Switching capacity
- 104 Gbit/s
- Forwarding rate
- 78 Mpps
- Static route
- Ja
- Jumbo frames support
- Ja
- Jumbo frames
- 9216
- Packet buffer memory
- 4 MB
Security
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
- Access Control List (ACL)
- Ja
- Access Control List (ACL) egress
- 800
- Access Control List (ACL) ingress
- 1750
- IGMP snooping
- Ja
- IGMP proxy
- Ja
- Security algorithms
- HTTPS, SSH, SSH-2
- IP-MAC-Port binding
- Ja
- Authentication
- MAC-based authentication, Web-based authentication
- Authentication type
- AAA, IEEE 802.1x, RADIUS, TACACS+
- Queue scheduling algorithms
- DRR+SP, Deficit Round Robin (DRR), SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
- Multicast support
- Ja
- IPv4 multicast entries
- 1000
- IPv6 multicast entries
- 750
- Multicast Listener Discovery (MLD) snooping
- MLD snooping v1/v2
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Ja
- Routing protocols
- OSPFv2, OSPFv3, RIP, RIPng
- IPv4 & IPv6 features
- IPv6 source address validation improvement (SAVI)
Design
- Stackable
- Ja
- Form factor
- 1U
- Product colour
- Grey
- Number of fans
- 1 fan(s)
Performance
- Built-in processor
- Ja
- Processor frequency
- 1000 MHz
- Memory type
- SDRAM / Flash
- Internal memory
- 1000 MB
- Flash memory
- 512 MB
- Noise level
- 35 dB
- Mean time between failures (MTBF)
- 211466 h
Power
- Power source
- AC
- Power supply included
- Ja
- AC input voltage
- 90 - 264 V
- AC input frequency
- 47/63 Hz
- Input current
- 6 A
- Power consumption (max)
- 409 W
- Power protection features
- Surge protection
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Ja
- Power over Ethernet (PoE) type supported
- PoE+
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90 %
- Storage relative humidity (H-H)
- 5 - 95 %
- Operating altitude
- 0 - 5000 m
- Non-operating altitude
- 0 - 5000 m
Weight & dimensions
- Width
- 442 mm
- Depth
- 220 mm
- Height
- 43.6 mm
- Weight
- 3300 g
Packaging content
- Quick start guide
- Ja
- Manual
- Ja
Packaging data
- Package width
- 540 mm
- Package depth
- 338 mm
- Package height
- 154 mm
- Package weight
- 4180 g
Certificates
- Compliance certificates
- RoHS
