Epson TM-P80II (111)

Produkt

Tillverkare

Epson

Produktnamn

TM-P80II (111)

Lanseringsdatum

01.09.2022

Tillverkarens länk

https://epson.com/

Produktkoder

Tillverkarens produktkoder

• C31CK00111

GTIN- / EAN-koder

• 8715946710280

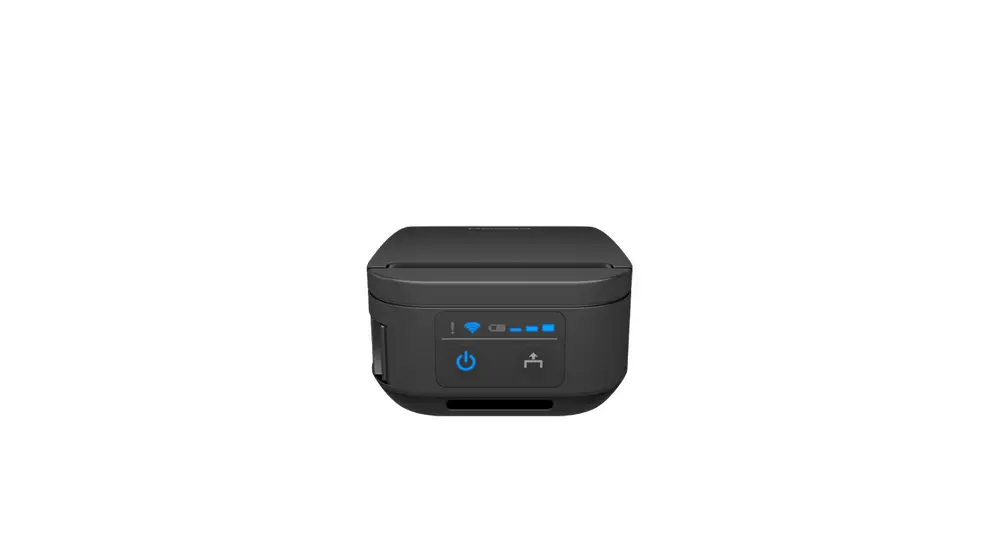

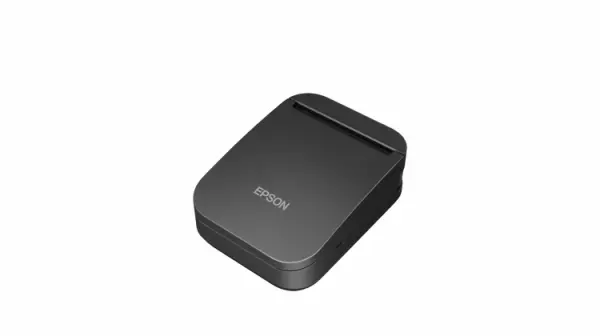

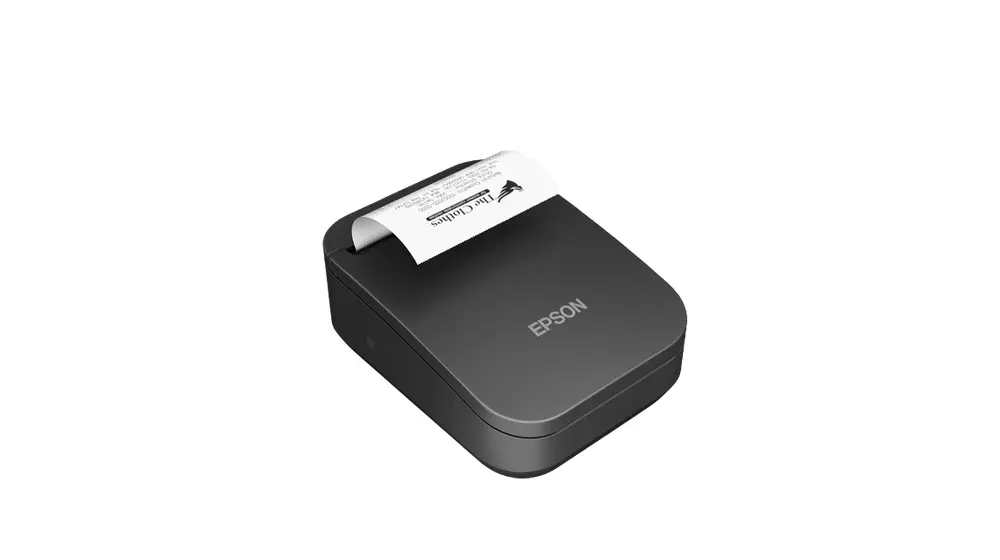

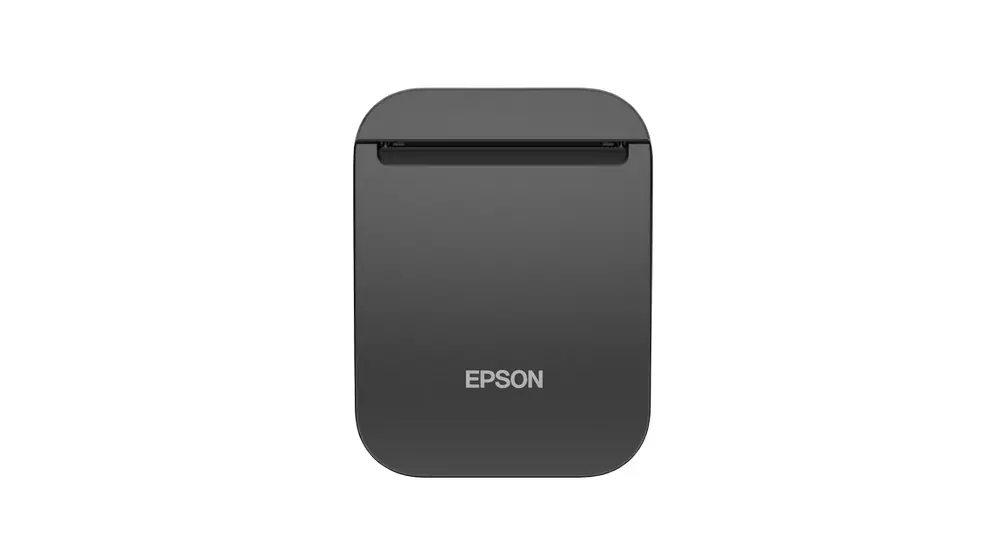

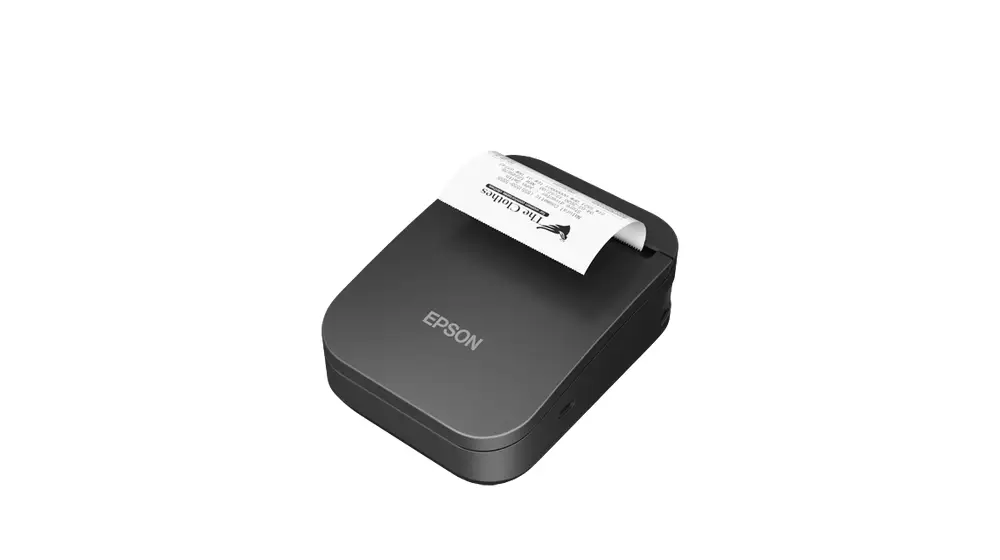

Produktbilder

Printing

Print technology

Thermal

Type

Mobile printer

Colour

Nej

Maximum resolution

203 x 203 DPI

Print speed

100 mm/sec

Print speed (receipt)

100 mm/sec

Printing characters

Graphic, Barcode, 2D barcode, Text

Paper handling

Paper loading type

Top & front

Printing media thickness

75 µm

Supported paper width

80 mm

Maximum printing width

80 mm

Ports & interfaces

Connectivity technology

Wired & Wireless

USB port

Ja

USB connector

USB Type-C

Bluetooth

Ja

Bluetooth version

5.0

Bluetooth Low Energy (BLE)

Ja

Near Field Communication (NFC)

Ja

Interface

USB Type-C, Wireless LAN IEEE 802.11a/b/g/n/ac

Network

Wi-Fi

Ja

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Features

Built-in barcodes

Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, GS1 DataBar, EAN8, GS1-128, EAN13, Code 39, Data Matrix, Code 93, ITF, MaxiCode, PDF417

Sound pressure level (printing)

53 dB

Mean time between failures (MTBF)

120000 h

Cutter

Ja

Paper save function

Ja

Print head life

50 km

Country of origin

Philippines

Design

Product colour

Black

Power

Power source type

DC

AC input voltage

7.2 V

Battery life (max)

25 h

Operational conditions

Operating temperature (T-T)

-15 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

0 - 90 %

Weight & dimensions

Width

105 mm

Depth

138 mm

Height

58 mm

Weight

386000 g

Packaging data

Cables included

USB

Quantity per pack

1 pc(s)

Package width

220 mm

Package depth

165 mm

Package height

110 mm

Package weight

795 g

Battery

Battery capacity

1950 mAh

Logistics data

Products per pallet

320 pc(s)

Products per pallet layer

40 pc(s)

Products per pallet (UK)

416 pc(s)

Products per pallet layer (UK)

52 pc(s)

Technical details

Technology

Thermal Line

Font styles

ANK, BIG5, GB18030-80, JIS X0208-90, KSC-5601C, Traditional Chinese, Simplified Chinese

Box contents

Battery (OT-BY20), Belt clip, Main unit, Quick Start Guide, Roll paper, Setup guide, USB cable, Warranty document

Paper size roll paper

79.50 ± 0.50 (W) mm x dia 51.00 mm

Print speed

Max. 100 mm/sec at 203 x 203 DPI ( printing width80 mm)

Other features

Buffer size

64 KB
