NZXT C850 Gold ATX 3.1

Produkt

Tillverkare

NZXT

Produktnamn

C850 Gold ATX 3.1

Tillverkarens länk

https://nzxt.com/product/c850-gold-atx#

Produktkoder

Tillverkarens produktkoder

• PA-8G2BB-EU

GTIN- / EAN-koder

• 5056547204796

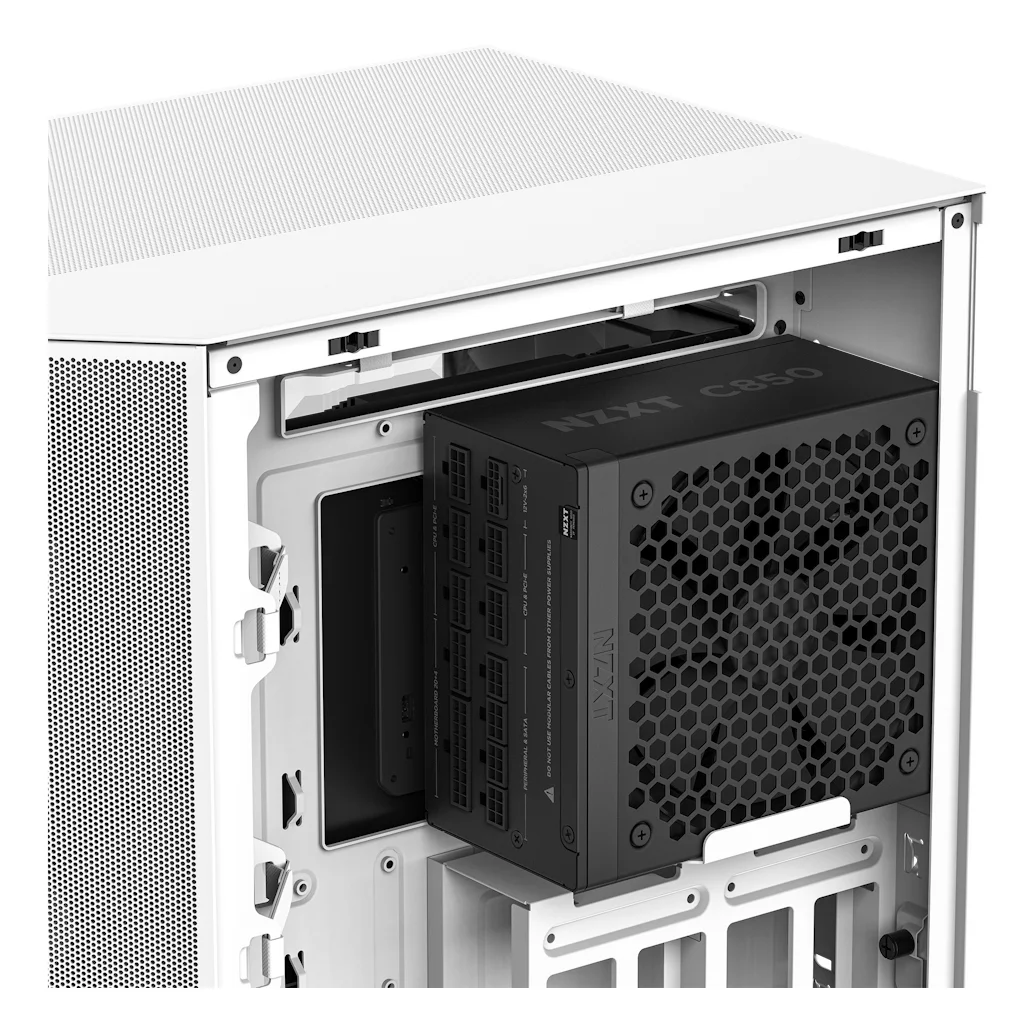

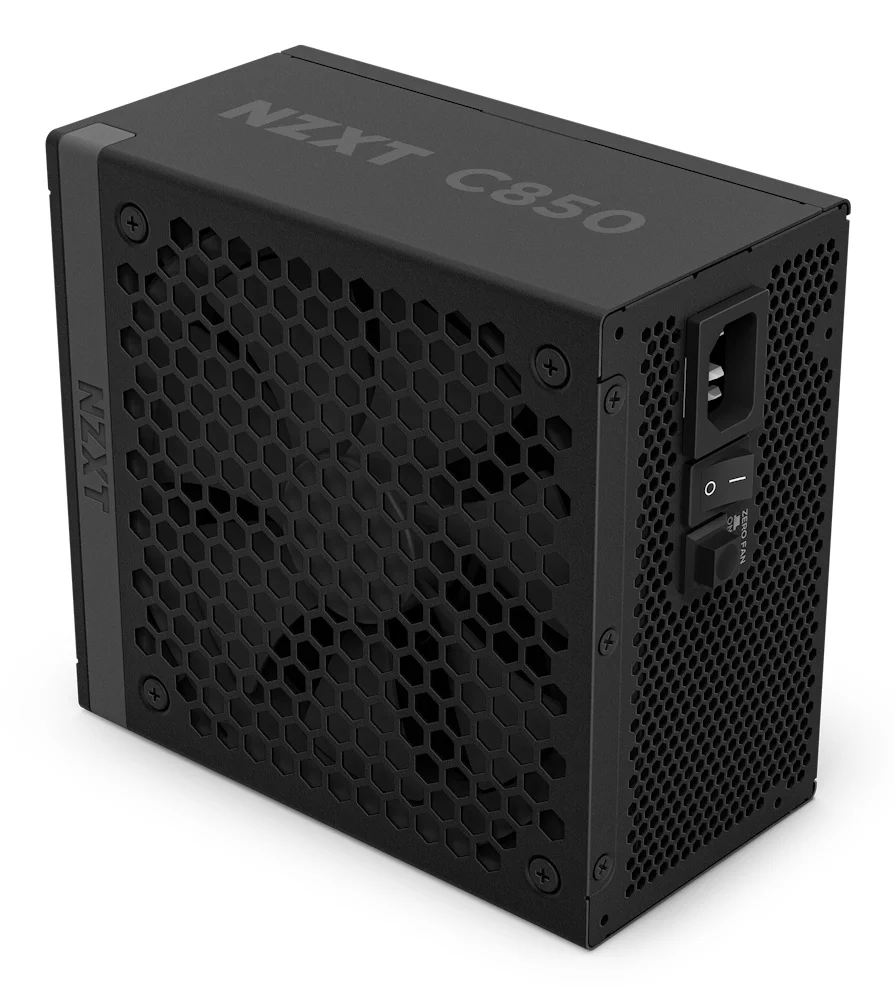

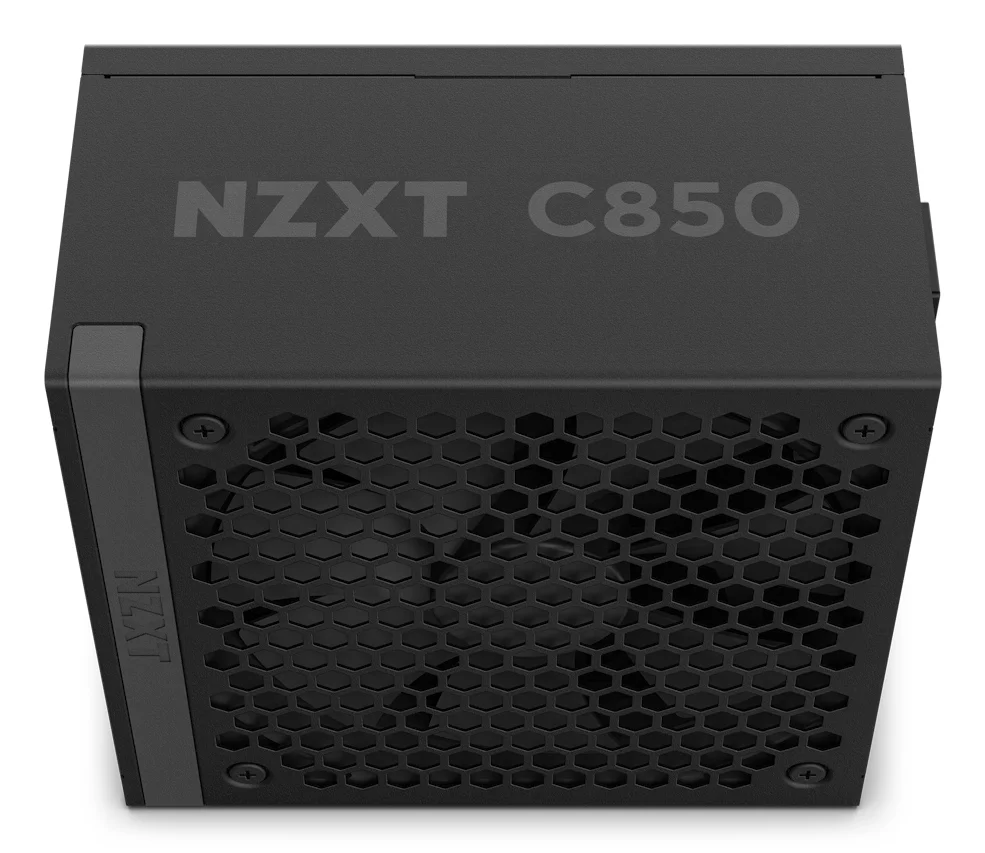

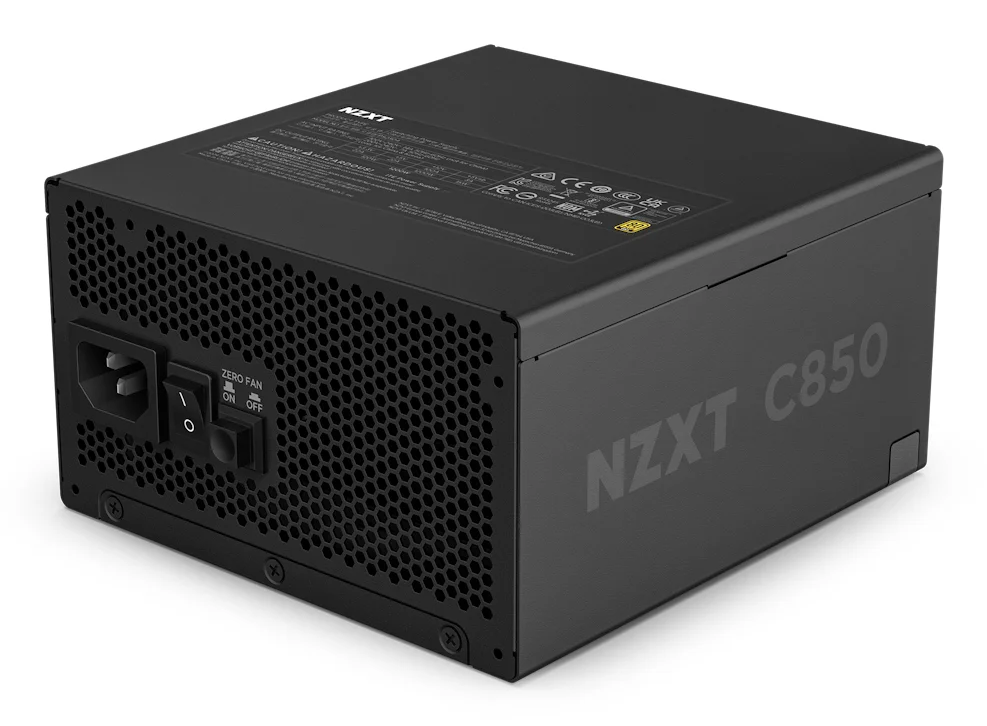

Produktbilder

Power

Total power

850 W

AC input voltage

100 - 240 V

Input current

10 - 5 A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

120 W

Combined power (+12V)

850 W

Combined power (+5V)

15 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

22 A

Max output current (+12V)

70.83 A

Efficiency

91.7 %

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

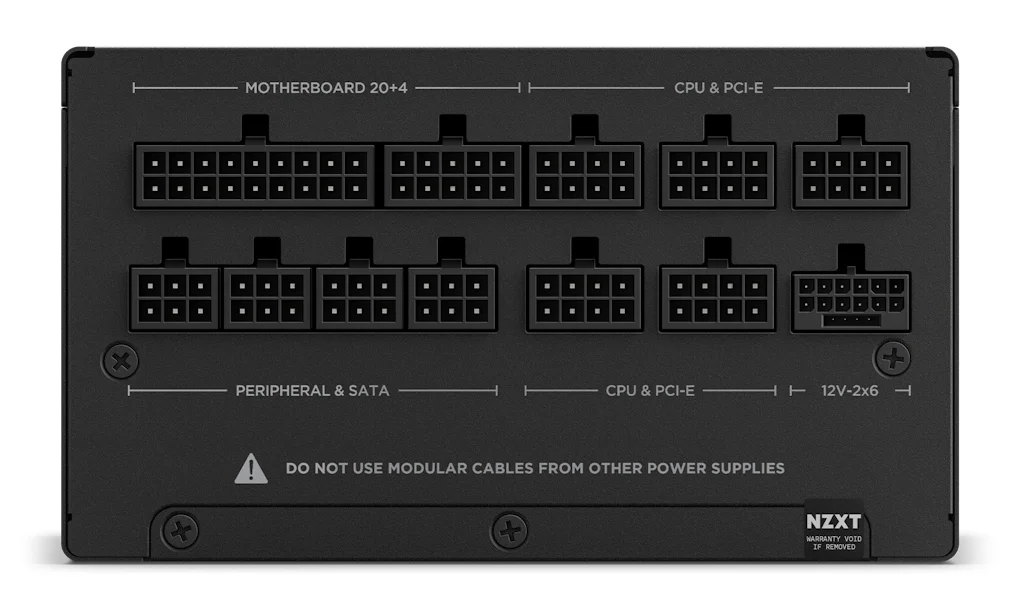

Ports & interfaces

Motherboard power connector

24-pin ATX

Motherboard power cable length

600 mm

Number of SATA power connectors

12

SATA power cable length

150,500 mm

Peripheral (Molex) power connectors (4-pin)

4

Peripheral (Molex) power cable length

150,500 mm

PCI Express power connectors (6+2 pin)

2

CPU power connector (4+4 pin)

Ja

ATX Power connector (24-pin)

Ja

Cabling type

Fully-Modular

Performance

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.1

EPS version

2.92

Noise level

44.5 dB

Bearing technology

FDB

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

135 mm

Number of fans

1 fan(s)

Fan speed

0 - 2300 RPM

Fan location

Top

On/off switch

Ja

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Certificates

Compliance certificates

BIS, BSMI, CCC, Federal Communications Commission (FCC), RCM, UKCA

Weight & dimensions

Width

150 mm

Depth

160 mm

Height

86 mm

Logistics data

Warranty period

10 year(s)
