Zyxel LTE2566-M634

Produkt

Tillverkare

Zyxel

Produktnamn

LTE2566-M634

Tillverkarens länk

https://www.zyxel.com/products_services/4G-LTE-A-Mobile-WiFi-L..

Produktkoder

Tillverkarens produktkoder

• LTE2566-M634-EUZNV1F

GTIN- / EAN-koder

• 4718937610945

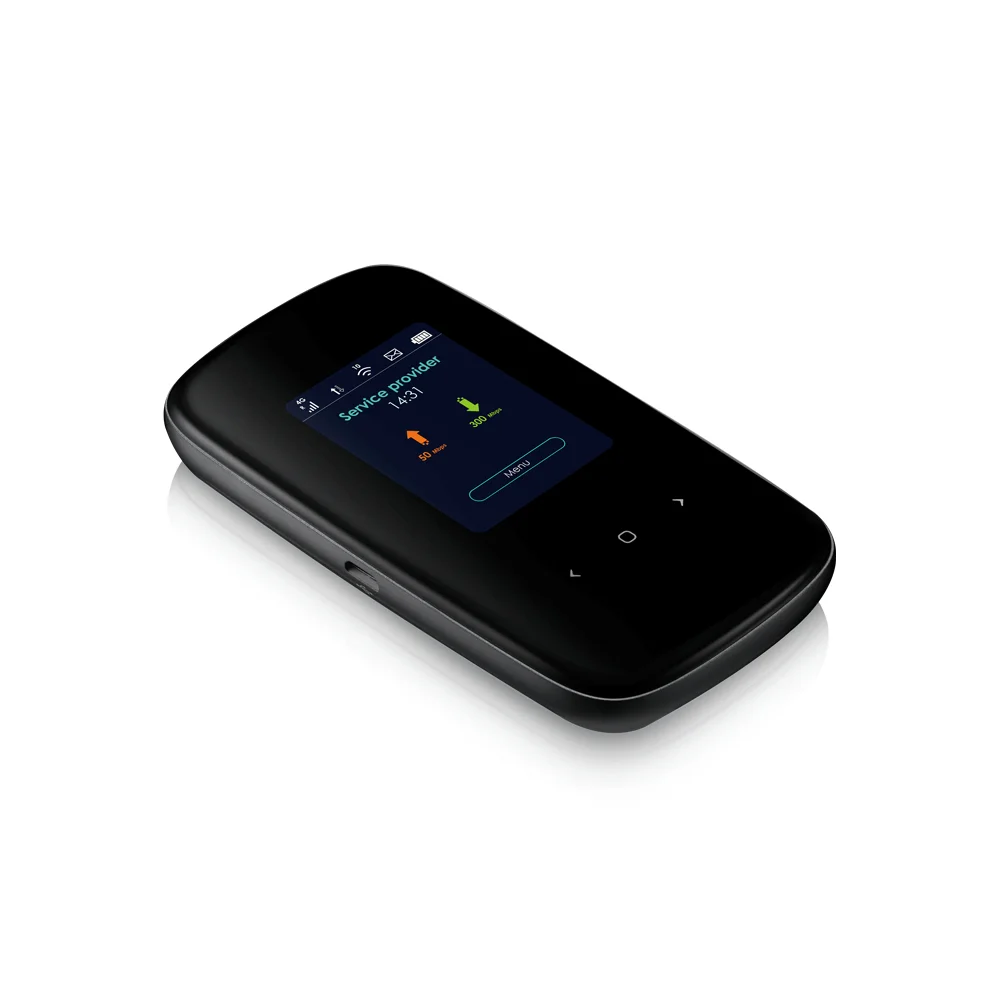

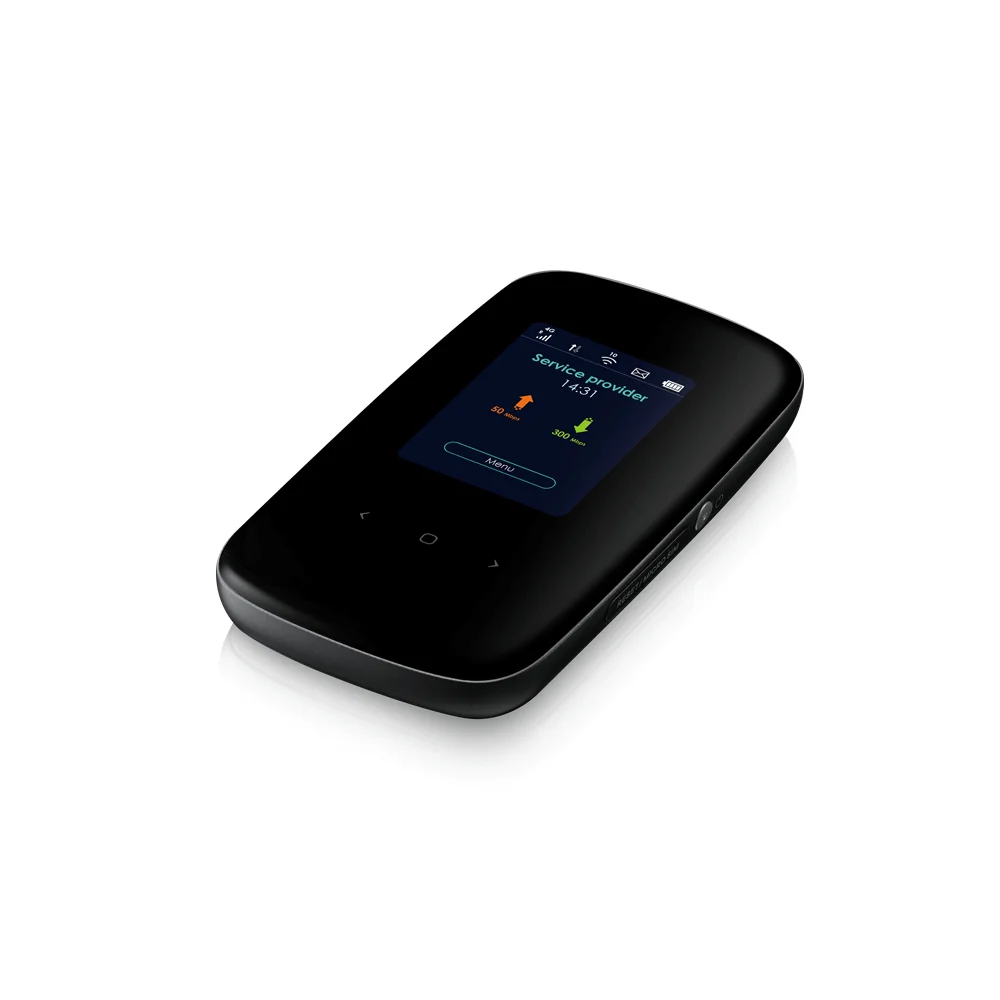

Produktbilder

WAN connection

Ethernet WAN

Nej

DSL WAN

Nej

SIM card slot

Ja

3G/4G USB modem compatibility

Ja

Wireless LAN features

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

WLAN data transfer rate (max)

300 Mbit/s

WLAN data transfer rate (first band)

300 Mbit/s

WLAN data transfer rate (second band)

224 Mbit/s

Network

Ethernet LAN

Nej

Ethernet LAN interface type

Not available

Dynamic DNS (DDNS)

Ja

SSID-based VLAN assignment

Ja

VPN Passthrough

Ja

Mobile network

Mobile network generation

4G

3G

Ja

4G

Ja

4G standard

LTE-TDD & LTE-FDD

3G bands supported

900,2100 MHz

Ports & interfaces

Ethernet LAN (RJ-45) ports

0

USB port

Ja

USB 2.0 ports quantity

1

Memory card slot(s)

Nej

Management features

Web-based management

Ja

Reset button

Ja

WPS push button

Ja

Security

Security algorithms

WPA-PSK, WPA2-PSK

Firewall

Ja

Access Control List (ACL)

Ja

MAC address filtering

Ja

IP address filtering

Ja

URL filtering

Ja

Network address translation (NAT)

Ja

Protocols

DHCP server

Ja

Design

Product type

Portable router

Product colour

Black

Indication light

Ja

Certificates

Certification

UN38.3, CE, WEEE, RoHS, HSF,

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

3000 mAh

Power

Power source type

Battery, DC

Output voltage

5 V

Output current

1.5 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

5 - 95 %

Storage relative humidity (H-H)

5 - 95 %

System requirements

Browser supported

Internet Explorer, Edge, Firefox, Chrome, Safari

Windows operating systems supported

Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP

Linux operating systems supported

Ubuntu 12.04, Ubuntu 14.04

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight & dimensions

Width

118.2 mm

Depth

65 mm

Height

15.7 mm

Weight

130 g

Packaging data

Package width

150 mm

Package depth

80 mm

Package height

50 mm

Package weight

270 g

Logistics data

Harmonized System (HS) code

85176990
