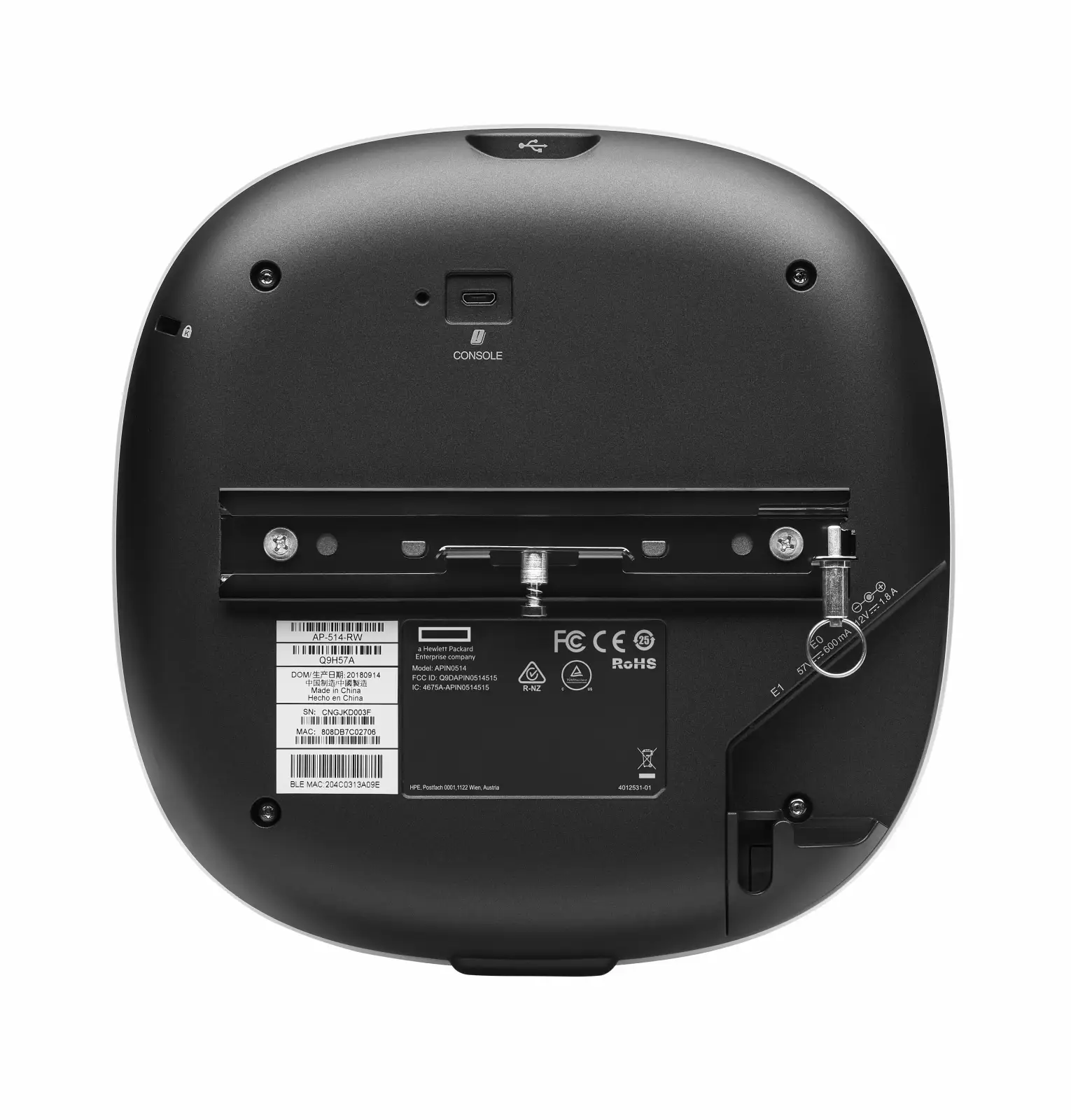

HPE Aruba Networking AP-514 (RW) Dual Radio 4x4/2x2 802.11ax External Antennas Unified Campus AP
Lägg till inköpslista Ta bort från inköpslistan
Funktioner
- Maximal dataöverföringshastighet
- 5375 Mbit/s
- Maximal dataöverföringshastighet (2,4 GHz)
- 575 Mbit/s
- Maximal dataöverföringshastighet (5 GHz)
- 4800 Mbit/s
- Datahastighet för Ethernet-LAN
- 1000,2500,5000 Mbit/s
Recensioner
Recensera produktLägsta pris på 30 dagar
13 062 kr
+22,06 %
Priset är nu 2 881 kr högre.
PrishistorikInformation
Produkt
- Tillverkare
- HPE
- Produktfamilj / -serie
- Aruba Networking
- Produktnamn
- Aruba Networking AP-514 (RW) Dual Radio 4x4/2x2 802.11ax External Antennas Unified Campus AP
- Lanseringsdatum
- 07.01.2019
- Tillverkarens länk
- https://www.hpe.com/
Produktkoder
- Tillverkarens produktkoder
- Q9H57A
- GTIN- / EAN-koder
- 0190017273570
Produktbilder
Features
- 2.4 GHz
- Ja
- 5 GHz
- Ja
- Maximum data transfer rate
- 5375 Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 575 Mbit/s
- Maximum data transfer rate (5 GHz)
- 4800 Mbit/s
- Ethernet LAN data rates
- 1000,2500,5000 Mbit/s
- Frequency band
- 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps GHz
- Networking standards
- IEEE 802.11ax, IEEE 802.11mc
- Auto MDI/MDI-X
- Ja
- MIMO
- Ja
- Spread spectrum method
- DSSS, OFDM
- Modulation
- 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
- MACsec support
- Nej
Security
- Security algorithms
- WMM, WPA, WPA2
Management features
- Access point management
- On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- USB 2.0 ports quantity
- 1
- USB connector type
- USB Type-A
- DC-in jack
- Ja
Power
- Power over Ethernet (PoE)
- Ja
- Power consumption (typical)
- 16 W
Design
- Placement
- Ceiling
- Product colour
- White
- Cable lock slot
- Ja
- Cable lock slot type
- Kensington
- Recommended usage
- Indoor
Antenna
- Antenna type
- External
- Antenna connector type
- RP-SMA
- Number of connectors
- 4
Performance
- Compatible operating systems
- HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later.
Certificates
- Compliance certificates
- Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
- Certification
- UL2043 plenum rating Bluetooth SIG Wi‑Fi Alliance: Wi‑Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location
Weight & dimensions
- Width
- 200 mm
- Depth
- 200 mm
- Height
- 46 mm
- Weight
- 810 g
Packaging data
- Package width
- 230 mm
- Package depth
- 220 mm
- Package height
- 72 mm
- Package weight
- 1010 g
Other features
- I/O ports
- E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
Operational conditions
- Operating relative humidity (H-H)
- 5 - 93 %
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Storage relative humidity (H-H)
- 5 - 93 %
Logistics data
- Harmonized System (HS) code
- 85176990
