Lenovo ThinkCentre M70s Gen 6

Produkt

Tillverkare

Lenovo

Produktfamilj / -serie

ThinkCentre M

Produktnamn

ThinkCentre M70s Gen 6

Tillverkarens länk

https://www.lenovo.com/gb/en/p/desktops/thinkcentre/m-series-s..

Produktkoder

Tillverkarens produktkoder

• 12YK000YPB

GTIN- / EAN-koder

• 0198158148597

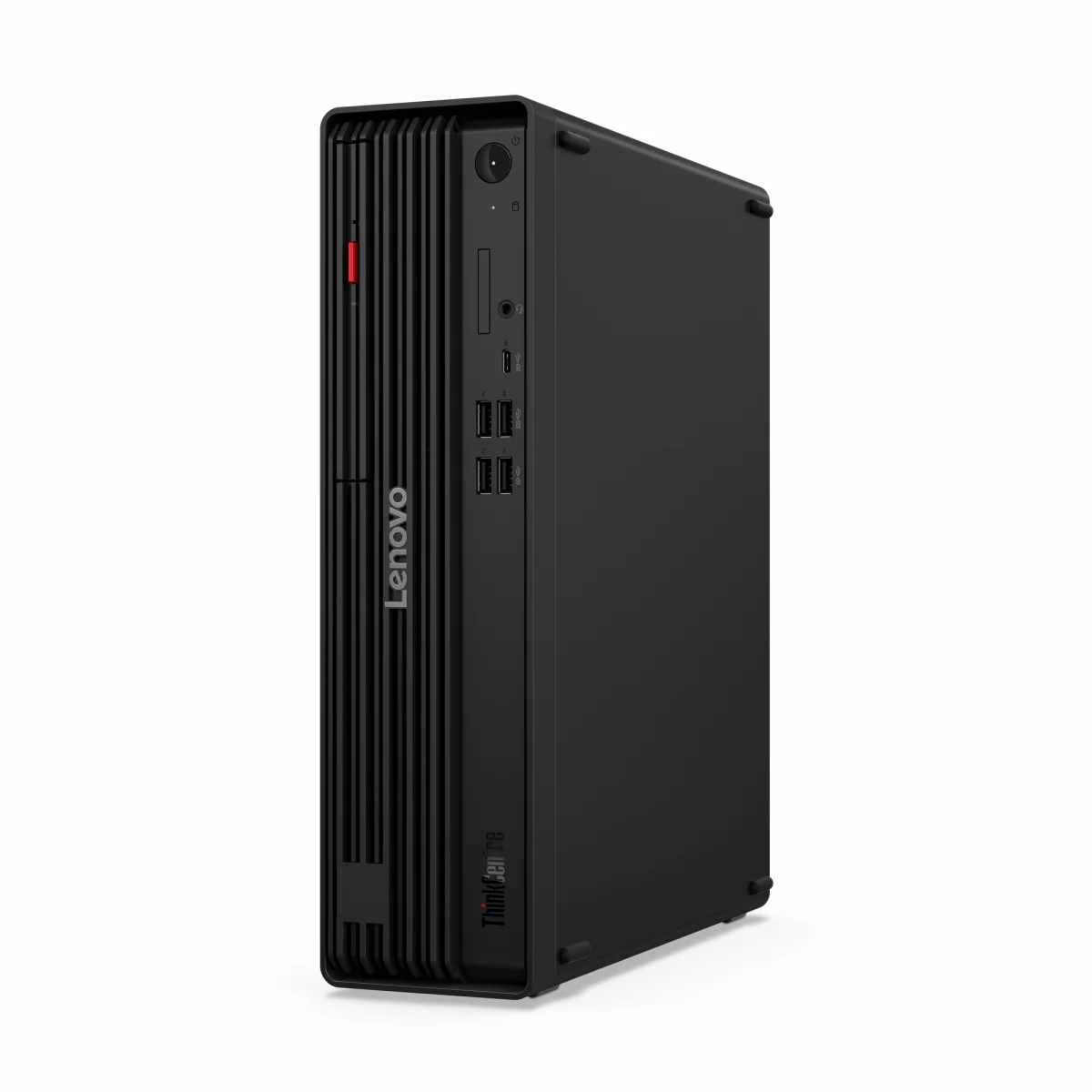

Produktbilder

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 5

Processor generation

Intel Core Ultra (Series 2)

Processor model

225

Processor cores

10

Processor threads

10

Processor boost frequency

4.9 GHz

Performance cores

6

Efficient cores

4

Efficient-core Max Turbo Frequency

4.4 GHz

Processor cache

20 MB

Processor cache type

Smart Cache

Processor socket

LGA 1851 (Socket V1)

Processor base power

65 W

Maximum turbo power

121 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Total processor performance up to

23 TOPs

NPU performance up to

13 TOPs

GPU performance up to

4 TOPs

Memory

Internal memory

16 GB

Maximum internal memory

128 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

1 x 16 GB

Memory slots

4x DIMM

Memory clock speed

5600 MHz

Non-ECC

Ja

Memory channels

Dual-channel

Storage

Total storage capacity

512 GB

Optical drive type

DVD±RW

Storage media

SSD

Number of storage drives installed

1

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Ja

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Card reader integrated

Ja

Graphics

Discrete graphics card

Nej

On-board graphics card

Ja

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® Graphics

On-board graphics card model

Intel® Graphics

Performance

Product type

PC

Motherboard chipset

Intel® Q870

Password protection

Ja

Password protection type

BIOS, HDD, Power on

Trusted Platform Module (TPM)

Ja

Built-in speaker(s)

Ja

Network

Ethernet LAN

Ja

Ethernet LAN data rates

100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Wi-Fi

Ja

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

Antenna type

2x2

Bluetooth

Ja

Bluetooth version

5.3

Ports & interfaces

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Thunderbolt 3 ports quantity

0

DisplayPorts quantity

2

DisplayPort version

1.4a

HDMI ports quantity

1

HDMI version

2.1

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Ja

Line-out

Ja

Power

Power supply

260 W

Power supply input voltage

100 - 240 V

Power supply input frequency

50/60 Hz

Design

Chassis type

SFF

Volume

8.2 L

Placement supported

Vertical

Cable lock slot

Ja

Cable lock slot type

Kensington

Product colour

Black

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Operating system language

English, Polish

Display

Display included

Nej

Audio

Audio chip

Realtek ALC623-CG

Audio system

High Definition Audio

Number of speakers

1

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

20 - 80 %

Storage relative humidity (H-H)

10 - 90 %

Operating altitude

0 - 3048 m

Non-operating altitude

0 - 12192 m

Weight & dimensions

Width

92.5 mm

Depth

299.7 mm

Height

339.5 mm

Weight

5100 g

Packaging data

Package width

195 mm

Package depth

395 mm

Package height

530 mm

Package weight

6700 g

Packaging content

Mouse included

Ja

Mouse connectivity

Wired

Keyboard included

Ja

Certificates

Certification

ENERGY STAR 9.0 TCO Certified 10 ErP Lot 3 GREENGUARD RoHS compliant

Keyboard

Keyboard connectivity

Wired
