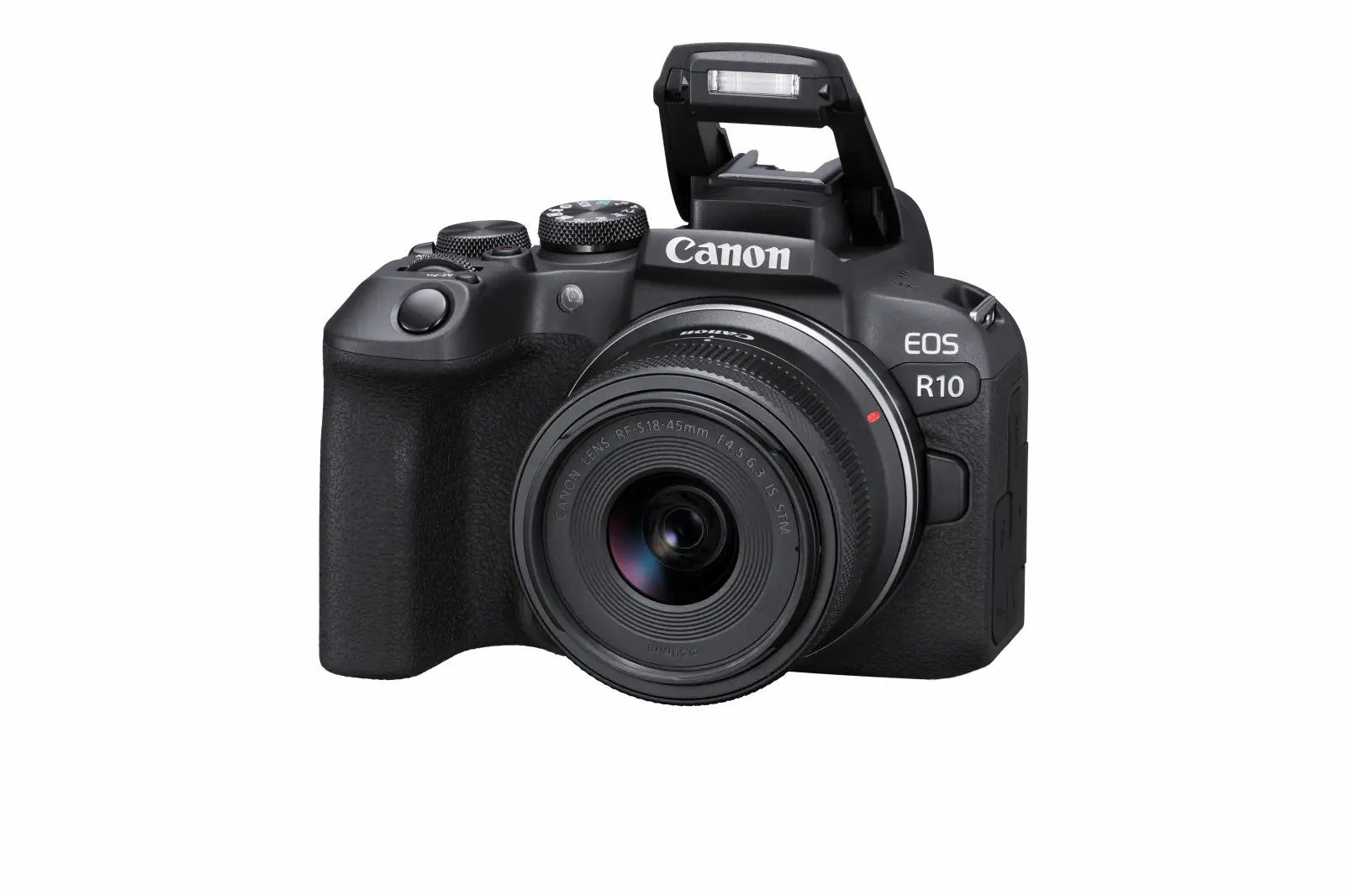

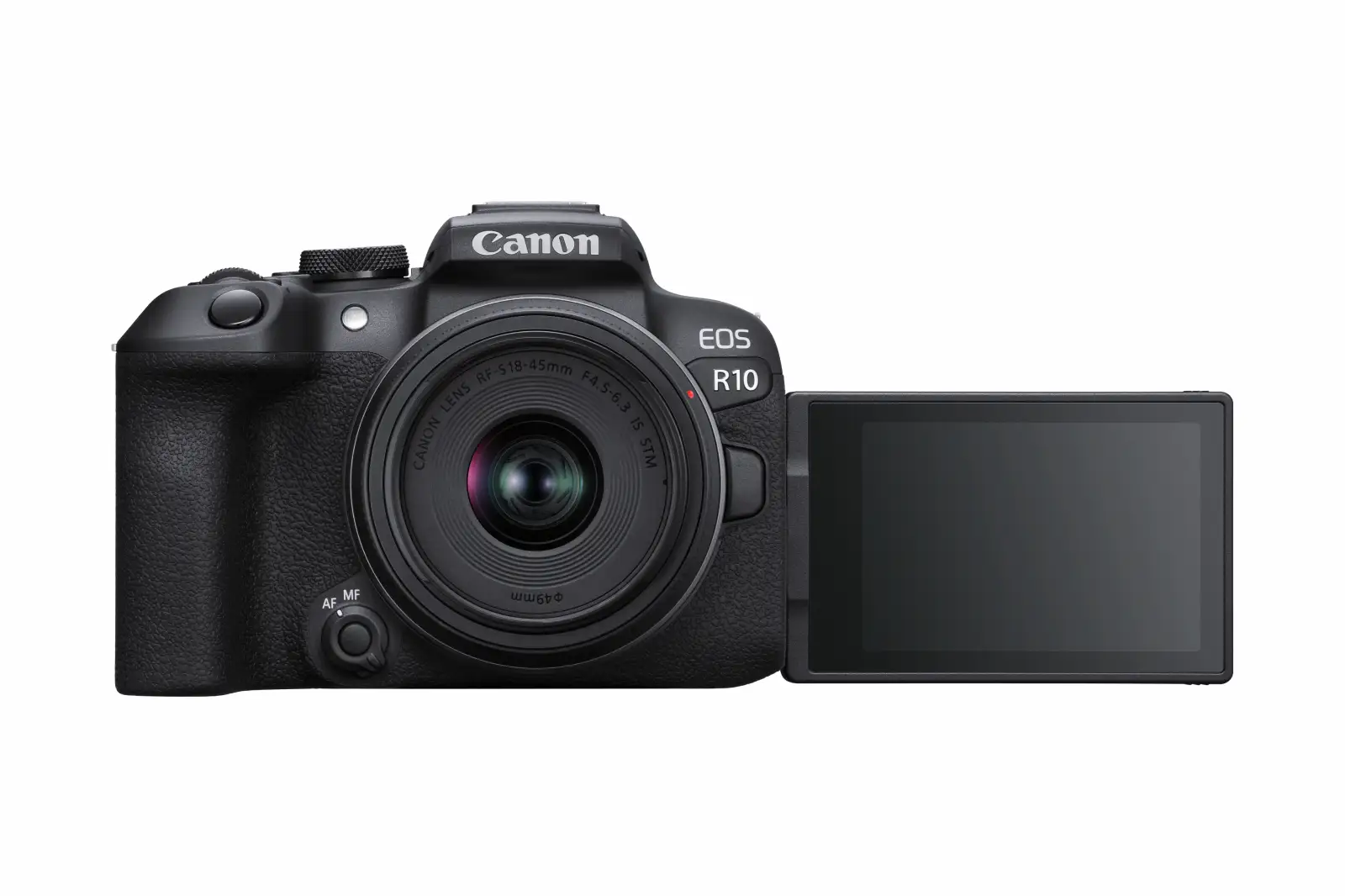

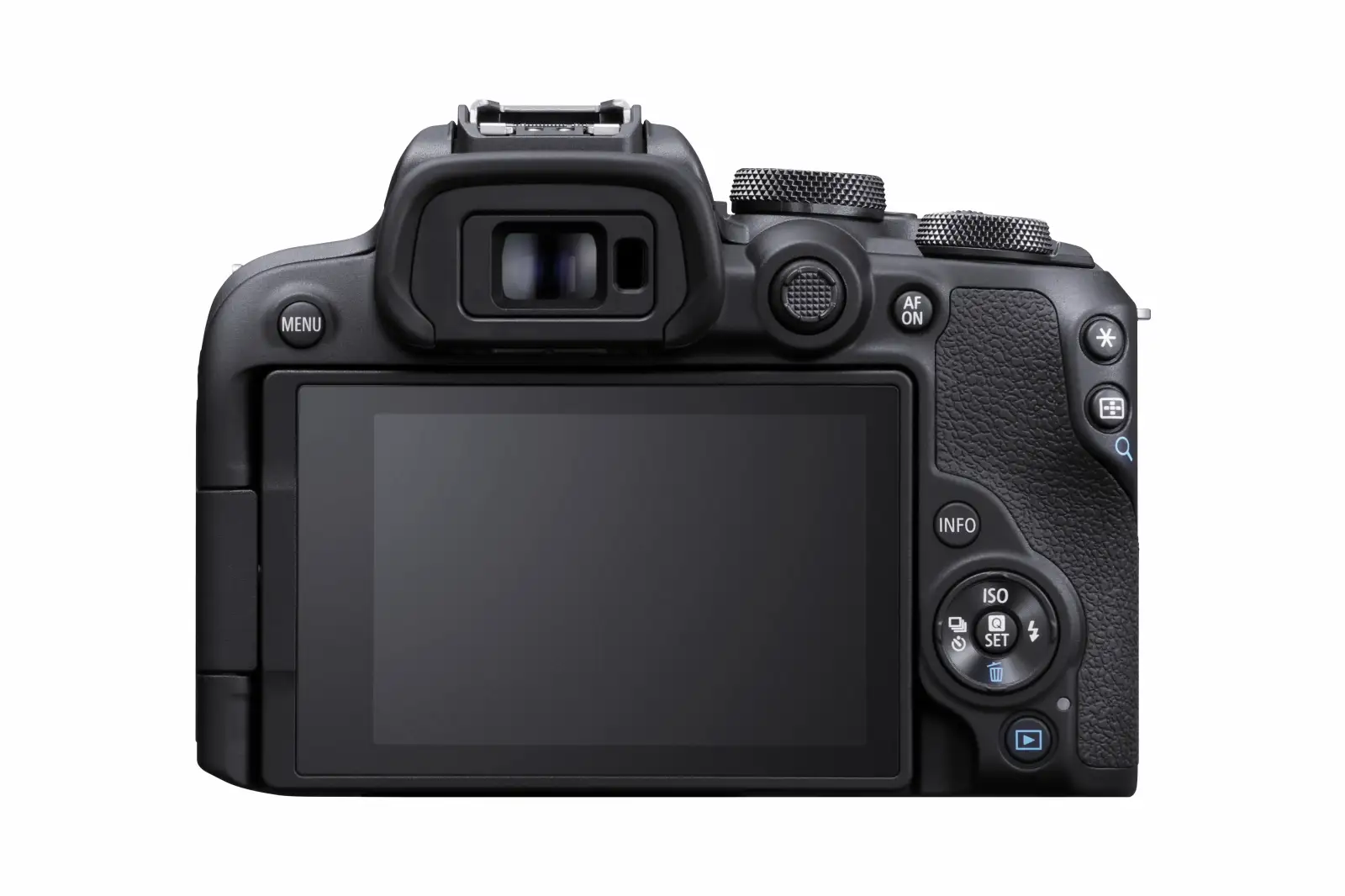

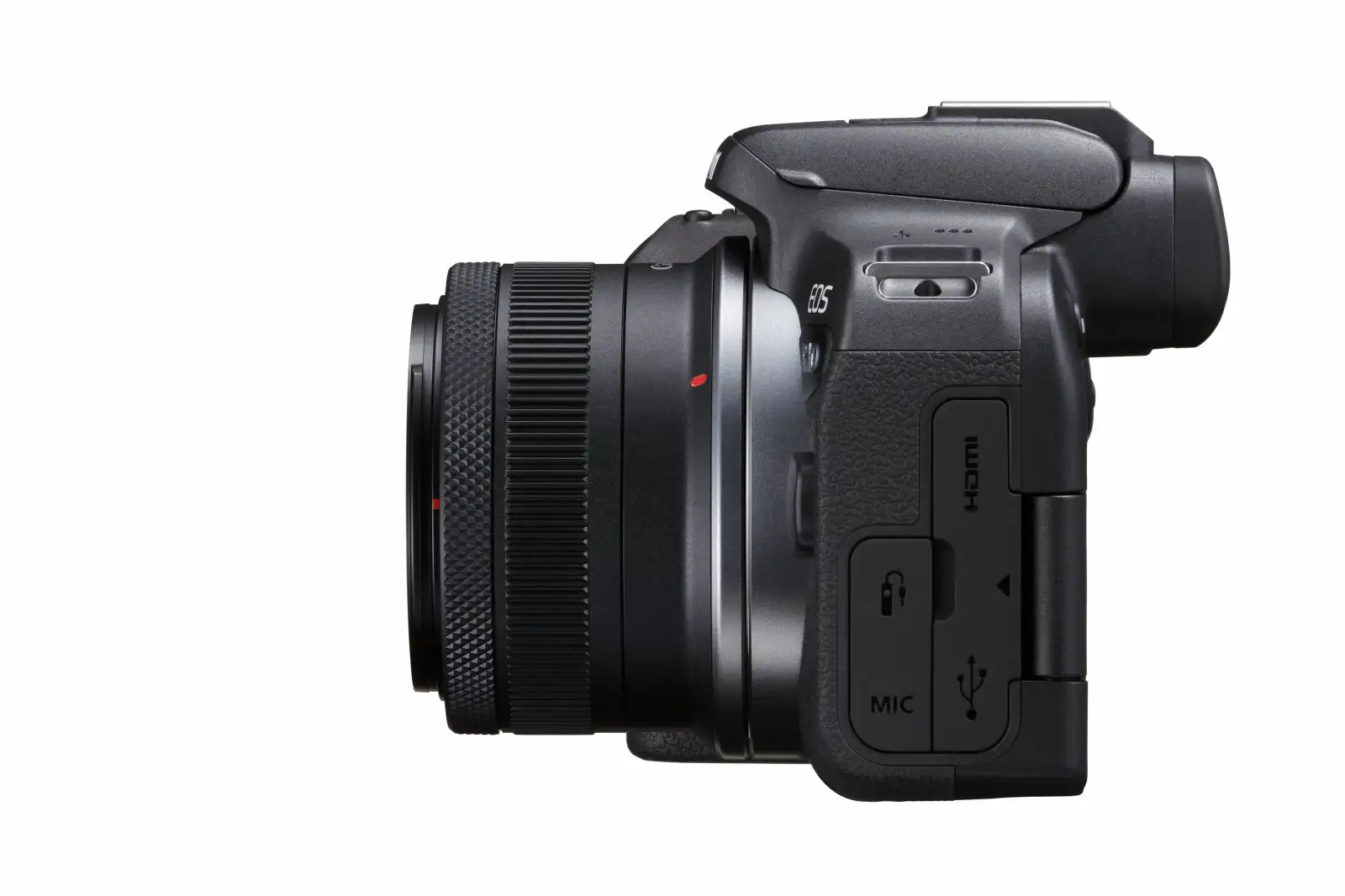

Canon EOS R10 + RF-S 18-45mm F4.5-6.3 IS STM

Produkt

Tillverkare

Canon

Produktfamilj / -serie

EOS

Produktnamn

R10 + RF-S 18-45mm F4.5-6.3 IS STM

Produktkoder

Tillverkarens produktkoder

• 5331C010

GTIN- / EAN-koder

• 4549292189773

Produktbilder

Picture quality

Camera type

MILC

Megapixel (approx.)

24.2 MP

Image sensor aspect ratio

3:2

Sensor type

CMOS

Maximum image resolution

6000 x 4000 pixels

Sensor cleaning system name

EOS Integrated Cleaning System

Still image resolution(s)

6000 x 4000, 3984 x 2656, 2976 x 1984, 2400 x 1600 5328 x 4000, 3552 x 2664, 2656 x 1992, 2112 x 1600 6000 x 3368, 3984 x 2240, 2976 x 1680, 2400 x 1344 4000 x 4000, 2656 x 2656, 1984 x 1984, 1600 x 1600

Image stabilizer

Ja

Image stabilizer location

Lens

Supported aspect ratios

1:1, 3:2, 4:3, 16:9

Total megapixels

25.5 MP

Image sensor size (W x H)

22.3 x 14.9 mm

Sensor format

Advanced Photo System type-C (APS-C)

Built-in low-pass filter

Ja

Colour filter type

Primary colour filter

Number of compressed options (JPEG)

2

Number of compressed options (HEIF)

2

Simultaneous recording modes

RAW + JPEG RAW + HEIF

Image formats supported

C-RAW, EXIF, HEIF, JPEG, Raw

Lens system

Optical zoom

2.5 x

Focal length range

18 - 45 mm

Minimum focal length (35mm film equiv)

29 mm

Maximum focal length (35mm film equiv)

72 mm

Lens structure (elements/groups)

7/7

Lens type

Wide-angle zoom

Filter size

49 mm

Number of diaphragm blades

7

Lens 2 minimum aperture number

4.5

Lens 2 maximum aperture number

6.3

Lens 2 structure (elements/groups)

7/7

Lens mount interface

Canon RF

Focusing

Focus

TTL

Focus adjustment

Auto/Manual

Focusing system

Dual Pixel CMOS AF II

Auto focusing (AF) modes

One Shot Focus, Spot Auto Focus, Servo Auto Focus

Auto Focus (AF) object detection

Animal, Eye, People, Bird, Face

Face tracking

Ja

Auto Focus (AF) points

651

Auto Focus (AF) points selection

Auto, Manual

Auto Focus (AF) area (auto selection) (horizonlal/vertical)

100/100 %

Auto Focus (AF) area (manual selection) (horizonlal/vertical)

90/100 %

Auto Focus (AF) points manual selection

AF point expansion 4 points, AF point expansion surrounding, Flexible zone AF 1-3

Auto Focus (AF) lock

Ja

Auto Focus (AF) assist beam

Ja

Exposure

ISO sensitivity (min)

100

ISO sensitivity (max)

32000

Light exposure modes

Auto

Light exposure value

EV -4 - 20 (23 °C, ISO 100)

Light exposure correction

± 3EV (1/2EV; 1/3EV step)

Light metering

Centre-weighted, Evaluative (Multi-pattern), Partial, Spot

Auto Exposure (AE) lock

Ja

Auto Exposure (AE) locking (auto)

Focus achievement

Auto Exposure (AE) locking (manual)

AE lock button (P, Av, Fv, Tv, M modes)

Number of measurement zones

384

Exposure bracketing (AEB)

± 3EV (1/2EV; 1/3EV stop)

Anti-flicker shooting

Ja

Flicker detection frequency

100 - 120 Hz

Shutter

Fastest camera shutter speed

1/16000 s

Slowest camera shutter speed

30 s

Camera shutter type

Electronic, Mechanical

Camera shutter speed (bulb electronic)

1/16000 s

Shutter release type

Electromagnetic

Flash

Flash modes

Second curtain synchro

Flash exposure lock

Ja

Flash guide number

6 m

Flash recharging time

5 s

Flash exposure compensation

Ja

Flash exposure correction

±3EV (1/2; 1/3 EV step)

Shoe mounting point

Ja

Shoe mounting point type

Hot shoe

Flash exposure bracketing

Ja

Brand specific flash systems

E-TTL II (Canon)

Wireless multi-flash support

Ja

Video

Video recording

Ja

Maximum video resolution

3840 x 2160 pixels

HD type

4K Ultra HD

Video resolutions

3840 x 2160,1920 x 1080 pixels

Video formats supported

H.264, H.265, MPEG4, HEVC

Dual card video recording

Nej

Colour sampling

YCbCr4:2:0 8-bit, YCbCr4:2:2 10-bit

Audio

Built-in microphone

Ja

Audio formats supported

AAC, PCM

Memory

Compatible memory cards

SDXC, SD, SDHC

Memory slots

1

Memory card read mechanism

UHS-II

Display

Display

TFT

Touchscreen

Ja

Display diagonal

2.95 "

Display diagonal (metric)

7.5 cm

Display resolution (numeric)

1040000 pixels

Flip-out screen

Ja

Field of view

100 %

Viewing angle, horizontal

150 °

Viewing angle, vertical

150 °

Anti-smudge coating

Ja

Display brightness adjustment

Ja

Number of manual brightness adjustment levels

7

Number of colour tone adjustment settings

4

Viewfinder

Viewfinder type

Electronic

Magnification

0.95 x

Viewfinder screen size

0.39 "

Viewfinder information

AE lock, AEB, AF method, AF operation, AF point information, Anti-flicker shooting, Aperture, Aspect ratio, Battery level, Bluetooth function, Digital Lens Optimizer, Electronic level, Exposure compensation, Exposure level indicator, Exposure simulation, FE lock, FEB, Flash off, Flash-ready, Focus distance scale, Grid, HDR shooting, High-speed sync, Highlight tone priority, Histogram, ISO speed, Image Quality, Lens information, Maximum burst, Metering mode, Multi Shot Noise Reduction, Multi-function lock warning, Multiple-exposure shooting, Number of remaining multiple exposures, Number of self-timer shooting, Picture Style, Vertical exposure scale, White balance correction, Wi-Fi function

Viewfinder technology

OLED

Viewfinder resolution (approx.)

2360000 pixels

Ports & interfaces

PictBridge

Ja

USB version

2.0

USB connector

USB Type-C

HDMI

Ja

HDMI connector type

Micro

Microphone in

Ja

Network

Bluetooth

Ja

Bluetooth version

4.2

Wi-Fi

Ja

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Camera

White balance

Auto, Cloudy, Custom modes, Daylight, Flash, Fluorescent, Shade, Tungsten

White balance compensation (Blue/Amber)

±9

White balance compensation (Magenta/Green)

±9

Custom white balance

Ja

Number of custom white balance settings

5

Scene modes

Fine detail, Landscape, Monochrome, Panorama, Portrait, Standard

Shooting modes

Aperture priority, Auto, Manual, Program, Scene, Shutter priority

Self-timer delay

2,10 s

Brightness adjustment

Ja

Camera playback

Movie, Single image, Slide show, Thumbnails

Languages support

Multi

Histogram

Ja

Image editing

Crop, Resizing

Orientation sensor

Ja

Camera file system

DCF 2.0, DPOF 1.1, Exif 2.31, Raw

High Dynamic Range (HDR) supported

Ja

Colour space supported

RGB

Image crop aspect ratios

1:1, 3:2, 4:3, 16:9

Multiple exposure

Ja

RAW image processing

Ja

High Dynamic Range (HDR) video processing

Ja

HEIF to JPEG conversion

Ja

Camera drive modes

Continuous high, Continuous high+, Continuous low, Self-timer, Single

Built-in interval timer

Ja

File numbering options

Auto-reset, Consecutive numbering, Manual reset

Metadata supported

Ja

Histogram options

Brightness, RGB

Erase options

Folder, Memory card, Select range, Selected images, Single image

Erase protection options

Folder, Memory card, Single image

Menu categories

AF Menu, Custom functions menu, My Menu, Network, Playback menu, Setup menu, Shooting menu

Firmware upgradeable

Ja

Tripod mounting supported

Ja

Slideshow

Ja

Slideshow setting

All, Date, Folder, Images, Protected images, Rating, Videos

Slideshow playback time

1, 2, 3, 5, 10, 20 s

Built-in processor

Ja

Image processor

DIGIC X

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur

Design

Product colour

Black

Waterproof

Nej

Splash proof

Nej

Introduction year

2022

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery life (display)

430 shots

Battery life (viewfinder)

260 shots

Battery capacity

1040 mAh

Battery type

LP-E17

Number of batteries supported

1

Battery level indicator

Ja

Charging indicator

Ja

Battery level indicator number of levels

4

Compatible power supply / battery chargers

LC-E17E AC-E6N DR-E18 PD-E1

Power

USB Type-C charging port

Ja

USB Type-C required charging power (min)

7.5 W

USB Type-C required charging power (max)

7.5 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 85 %

Weight & dimensions

Width

122.5 mm

Depth

83.4 mm

Height

87.8 mm

Weight

382 g

Weight (including battery)

429 g

Lens length

44.3 mm

Lens weight

130 g

Packaging content

Power cord included

Ja

AC adapter included

Ja

Battery charger included

Ja

Batteries included

Ja

Carrying case

Ja

Lens cap included

Ja

Quick start guide

Ja

User guide

Ja

Technical details

Video recording time

2 h

Effective megapixels

24.2 MP
