Cudy AP1300 Outdoor

Produkt

Tillverkare

Cudy

Produktnamn

AP1300 Outdoor

Tillverkarens länk

https://www.cudy.com/products/ap1300-1-0#features

Produktkoder

Tillverkarens produktkoder

• AP1300 OUTDOOR

GTIN- / EAN-koder

• 6971690792893

Produktbilder

Features

2.4 GHz

Ja

5 GHz

Ja

6 GHz

Nej

Maximum data transfer rate

867 Mbit/s

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

Maximum data transfer rate (5 GHz)

867 Mbit/s

Ethernet LAN data rates

100,1000 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at

Bluetooth

Nej

Channel bandwidth

80 MHz

MIMO

Ja

MIMO type

Multi User MIMO

Fit AP mode features

Mesh networking

Wi-Fi Multimedia (WMM)/(WME)

Ja

Fast roaming

Ja

Rate limiting

Ja

Operating modes

Wireless Access Point, Wireless Router, Wireless Extender, WISP

Wireless isolation

Ja

Band steering

Ja

Quality of Service (QoS) support

Ja

BeamForming

Ja

Maximum outdoor range

170 m

Security

Security algorithms

WPA-PSK, WPA2-PSK, WPA3

MAC address filtering

Ja

Service Set Identifier (SSID) features

Multiple SSIDs

Parental control

Ja

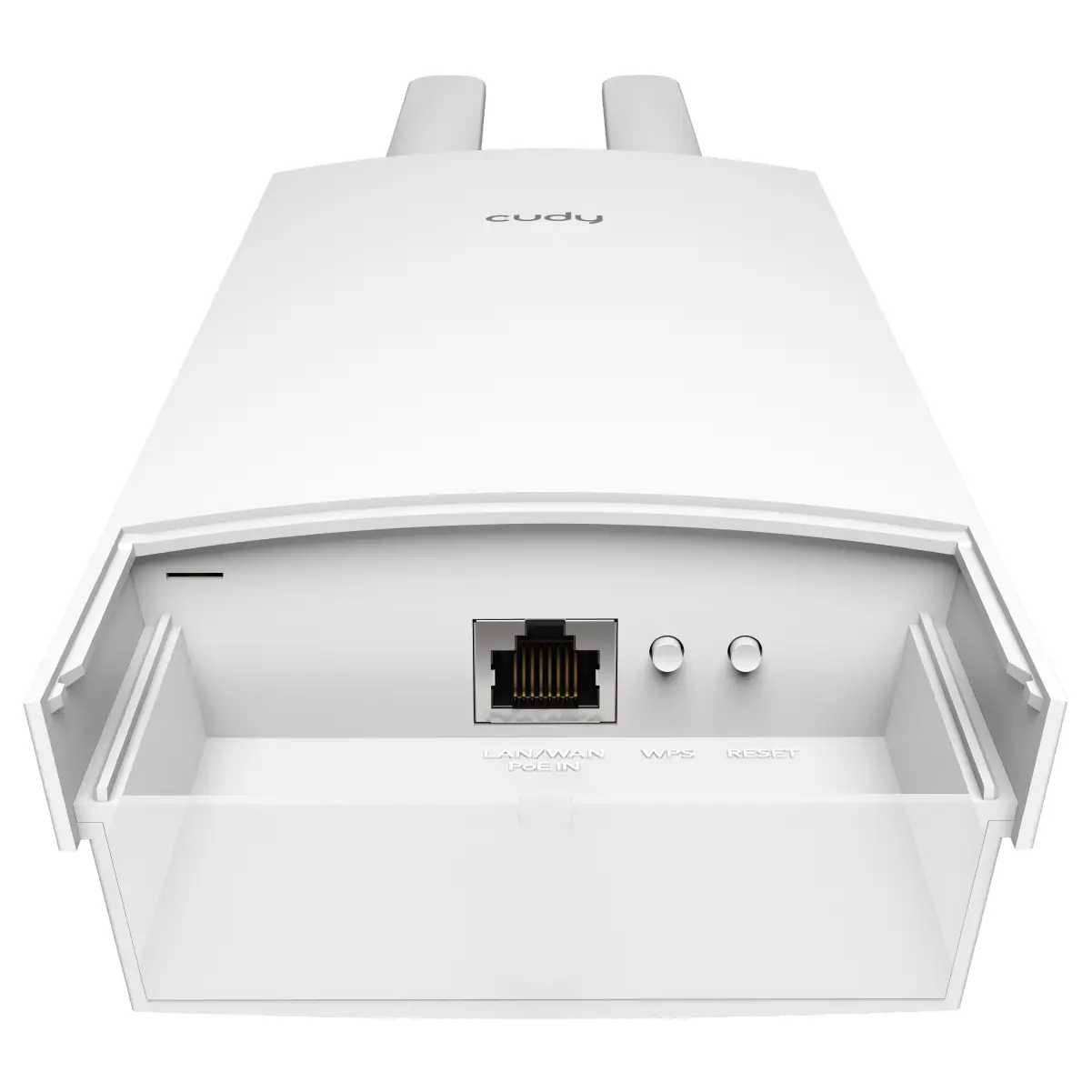

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

0

WAN connection

Wi-Fi, Ethernet (RJ-45)

Power

Power over Ethernet (PoE)

Ja

Power over Ethernet (PoE) type supported

Active PoE, Passive PoE

Output voltage

24 - 57 V

Power consumption (typical)

11 W

Design

Placement

Pole, Wall

Product colour

White

International Protection (IP) code

IP65

Reset button

Ja

WPS push button

Ja

Antenna

Antenna type

External

Antenna features

Detachable antenna

Antennas quantity

2

Antenna connector type

RP-SMA

Performance

Chipset

MT7621DA+MT7613B+MT7603E

Built-in processor

Ja

Processor frequency

880 MHz

Flash memory

16 MB

Internal memory

128 MB

Compatible operating systems

Microso� Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Technical details

Products per shipping (inner) case

20 pc(s)

Weight & dimensions

Width

100 mm

Depth

53.7 mm

Height

240 mm

Weight

865 g

Antenna width

21.6 mm

Antenna depth

15.5 mm

Antenna height

197.5 mm

Packaging data

Package width

324 mm

Package depth

107 mm

Package height

86 mm

Package weight

865 g

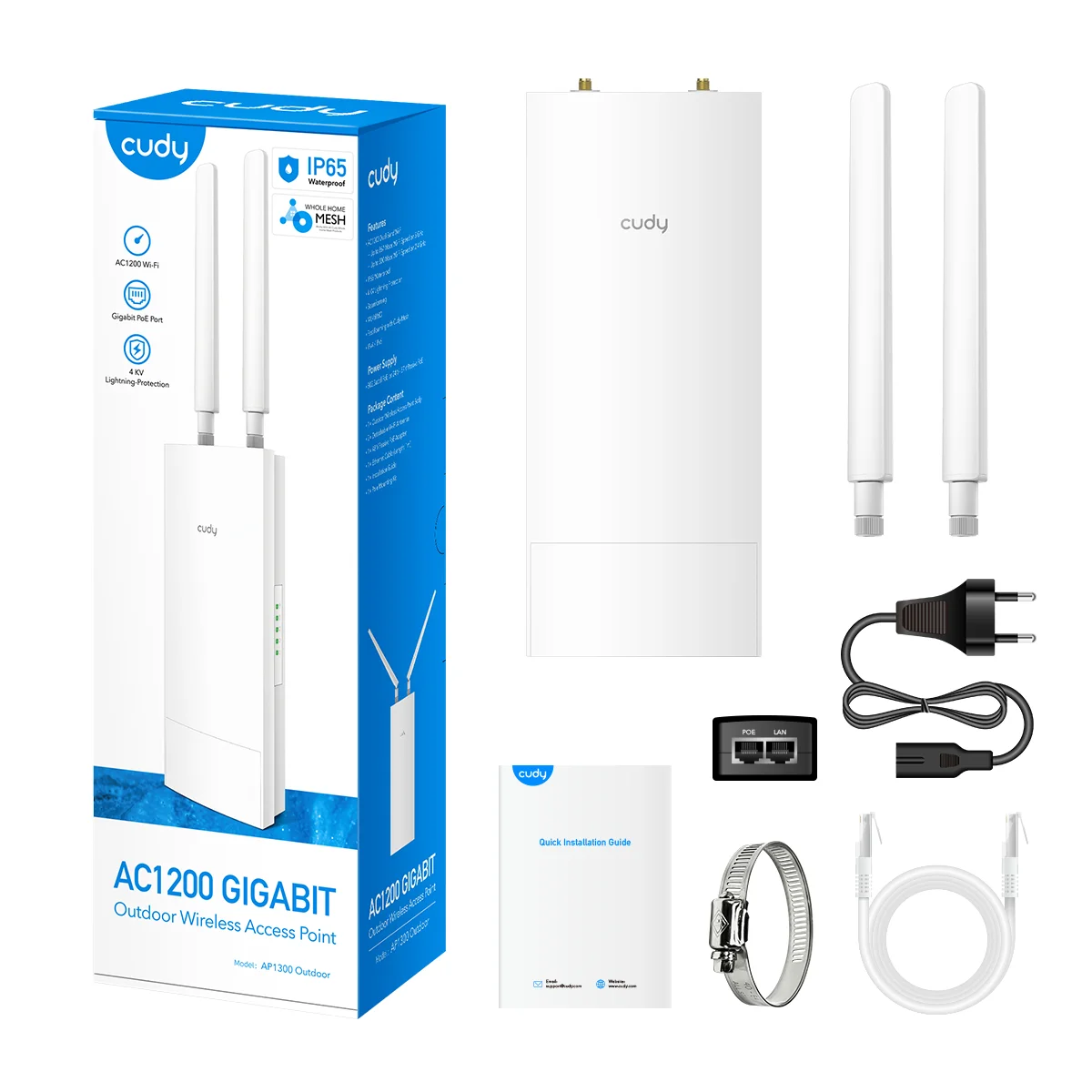

Packaging content

AC adapter included

Nej

PoE adapter included

Ja

Cables included

UTP

Mounting kit

Ja

Quick start guide

Ja

Antenna included

Ja

Manual languages

Multi

Bundled software

Cudy Software

Other features

Wireless range

170 m

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-10 - 65 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 90 %

Logistics data

Warranty period

1 year(s)

Country of origin

China
