Chieftec Polaris 1250W

Produkt

Tillverkare

Chieftec

Produktfamilj / -serie

Polaris

Produktnamn

1250W

Tillverkarens länk

https://www.chieftec.eu/products-detail/498/POLARIS_SERIES/501..

Produktkoder

Tillverkarens produktkoder

• PPS-1250FC

GTIN- / EAN-koder

• 0753263077516

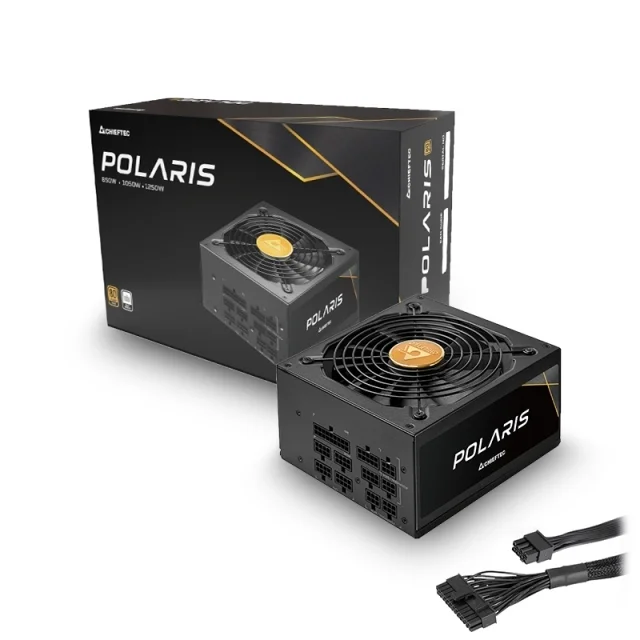

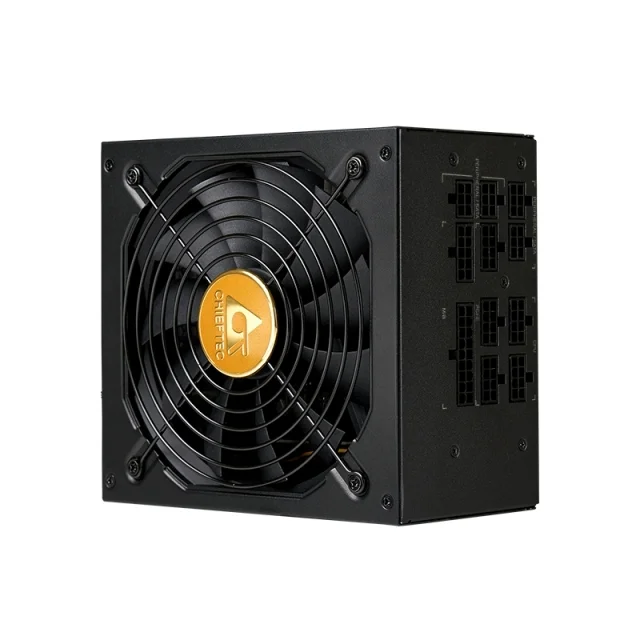

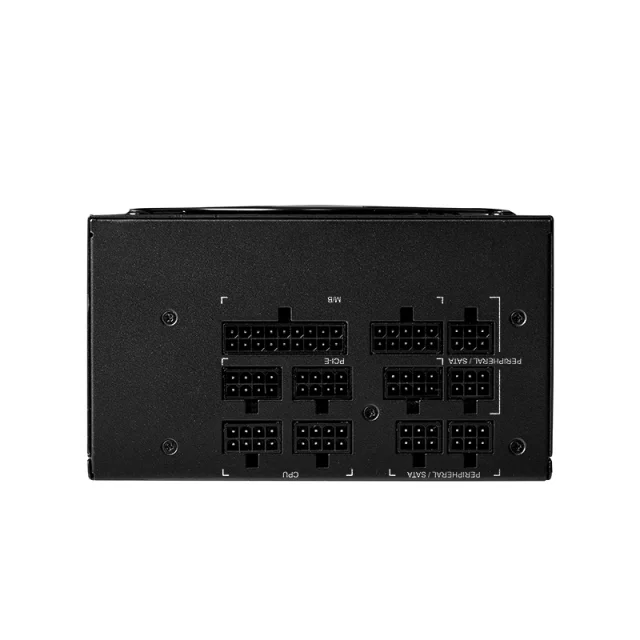

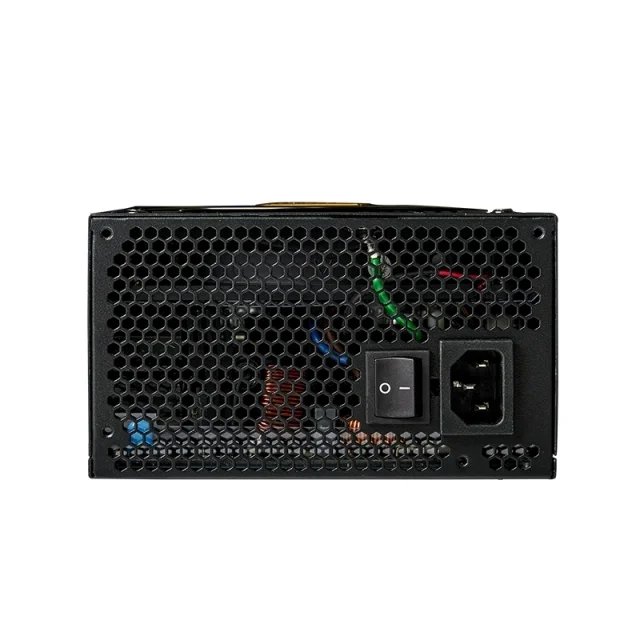

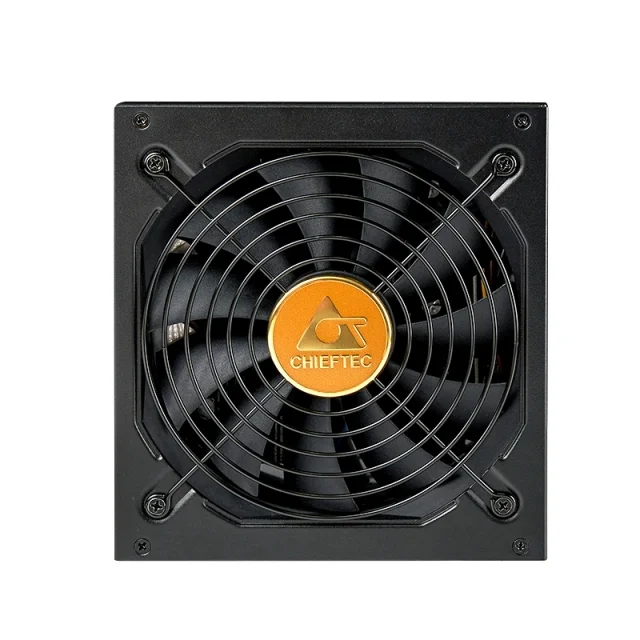

Produktbilder

Power

Total power

1250 W

Peak power

1250 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

15 - 8 A

Power factor

0.9

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

120 W

Combined power (+12V)

1250 W

Combined power (+5V)

120 W

Combined power (-12V)

0.3 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

22 A

Max output current (+12V1)

104.1 A

Max output current (+5V)

22 A

Max output current (-12V)

3.6 A

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

650 mm

Number of SATA power connectors

12

Peripheral (Molex) power connectors (4-pin)

4

EPS power connector (4+4 pin)

Ja

PCI Express power connectors (6+2 pin)

6

Cabling type

Fully-Modular

Performance

Purpose

PC

80 PLUS certification

80 PLUS Gold

ATX version

2.3

Design

Product colour

Black

Cooling type

Active

Fan diameter

140 mm

Certificates

Compliance certificates

CE, RoHS

Weight & dimensions

Width

160 mm

Depth

150 mm

Height

86 mm

Weight

2700 g

Packaging data

Package weight

3500 g

Technical details

Sustainability certificates

ErP

Sustainability compliance

Ja

Logistics data

Harmonized System (HS) code

84733020
